Pinpoint Test HA: Natural Gas Fuel Control: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • HO2S/HTR (Heater) (9F472).
  • HO2S Connections.
  • Vacuum Systems.
  • Fuel Injectors.
  • Harness circuits: HO2S GND, HO2S, INJ-1-8, VPWR and SIG RTN.
  • Powertrain control module (PCM) (12A650).
  • Natural Gas Module (NG) (9F954).

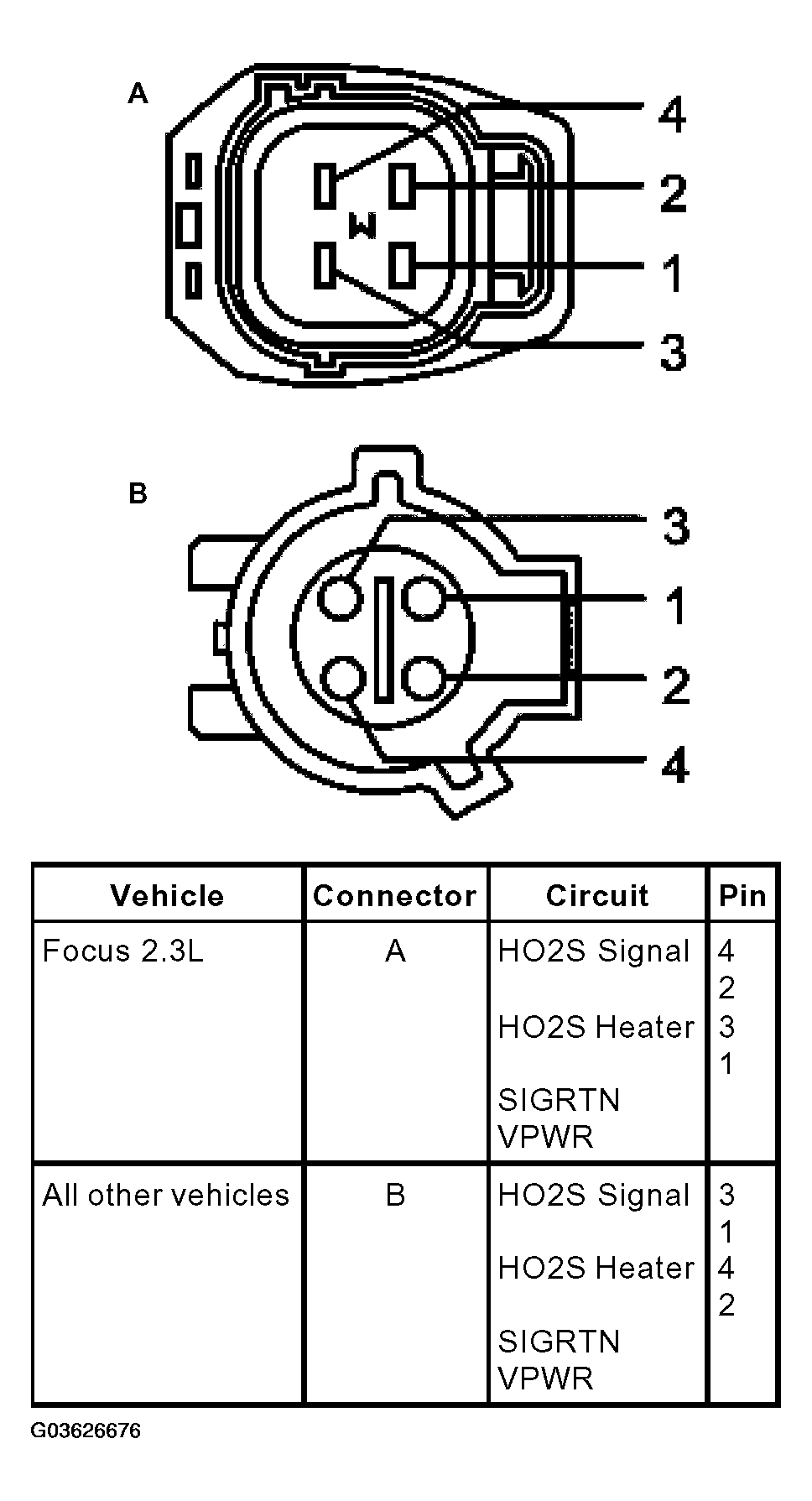

Fig 1: Identifying Heated Exhaust Oxygen Sensor (HO2S) Connector
G03626676Courtesy of FORD MOTOR CO.

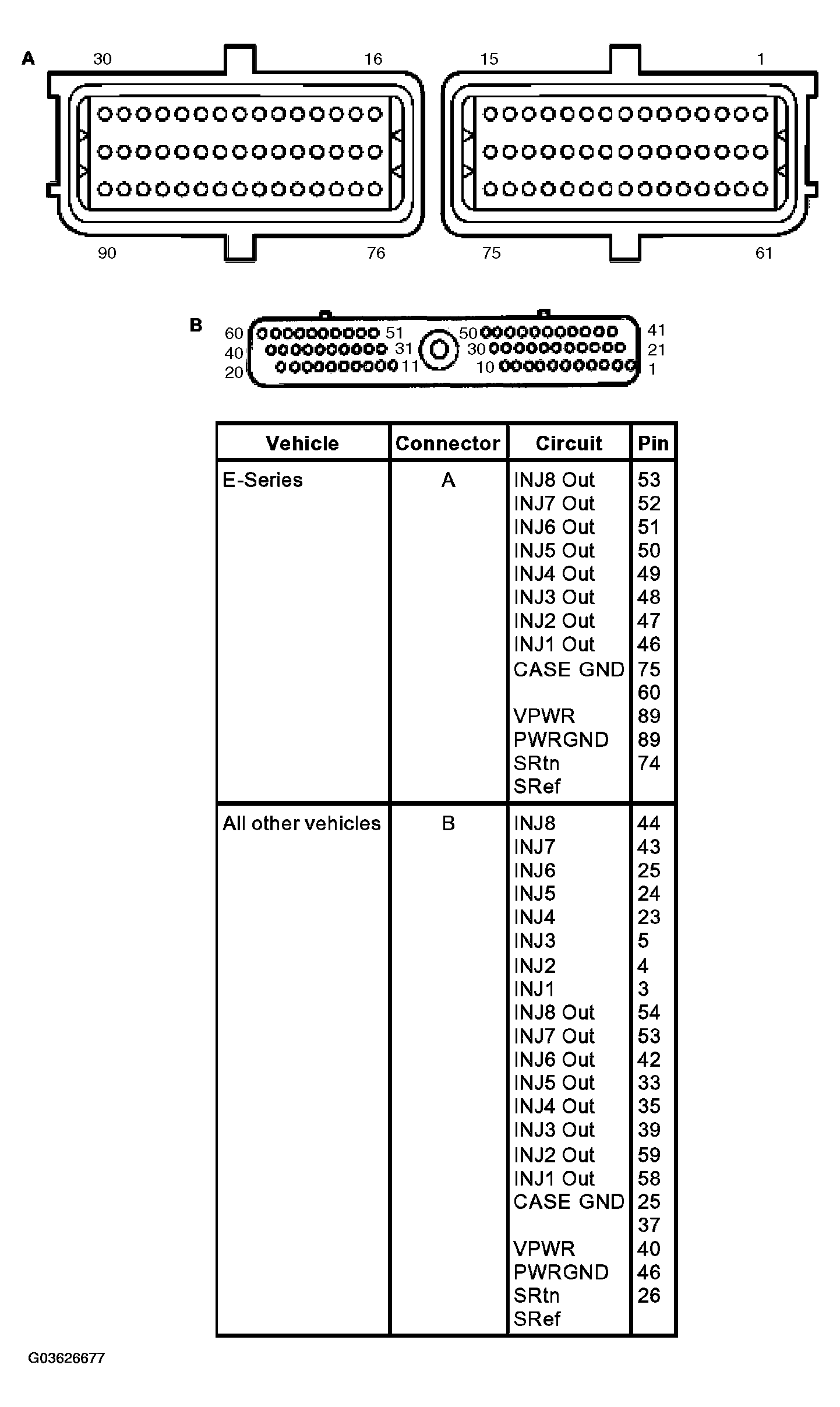

Fig 2: Identifying Natural Gas (NG) Module Connector
G03626677Courtesy of FORD MOTOR CO.
