Pinpoint Test H: Fuel Control: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • HO2S/O2S (9F472).
  • HO2S/O2S (9G444).
  • Fuel injector(s) (9F593).
  • Harness Circuits: HO2S, SIGRTN, VPWR, HO2S Heater & INJ 1 - 10.
  • Vacuum Systems.
  • Powertrain control module (PCM) (12A650).

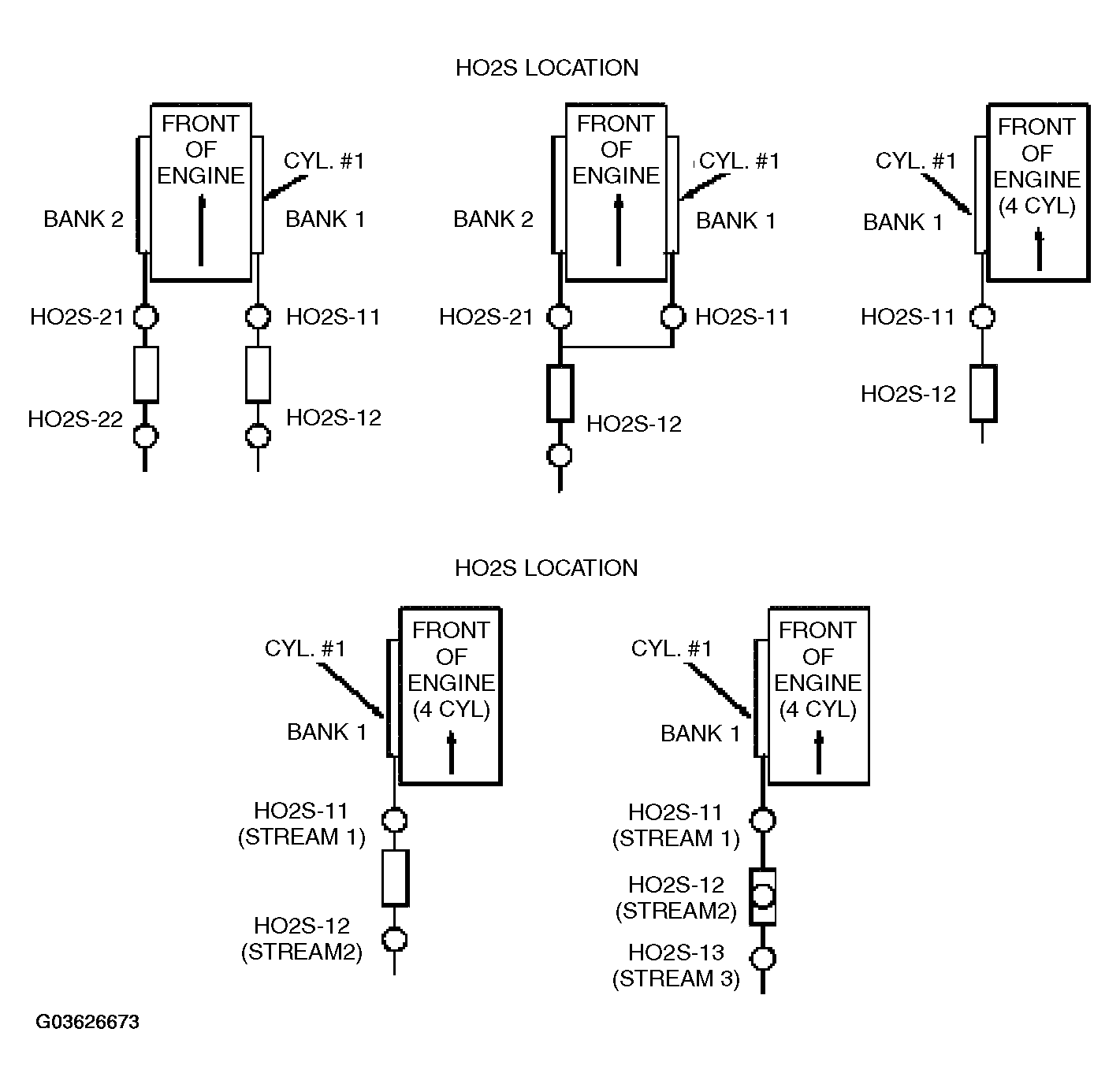

Fig 1: Identifying HO2S Locations
G03626673Courtesy of FORD MOTOR CO.

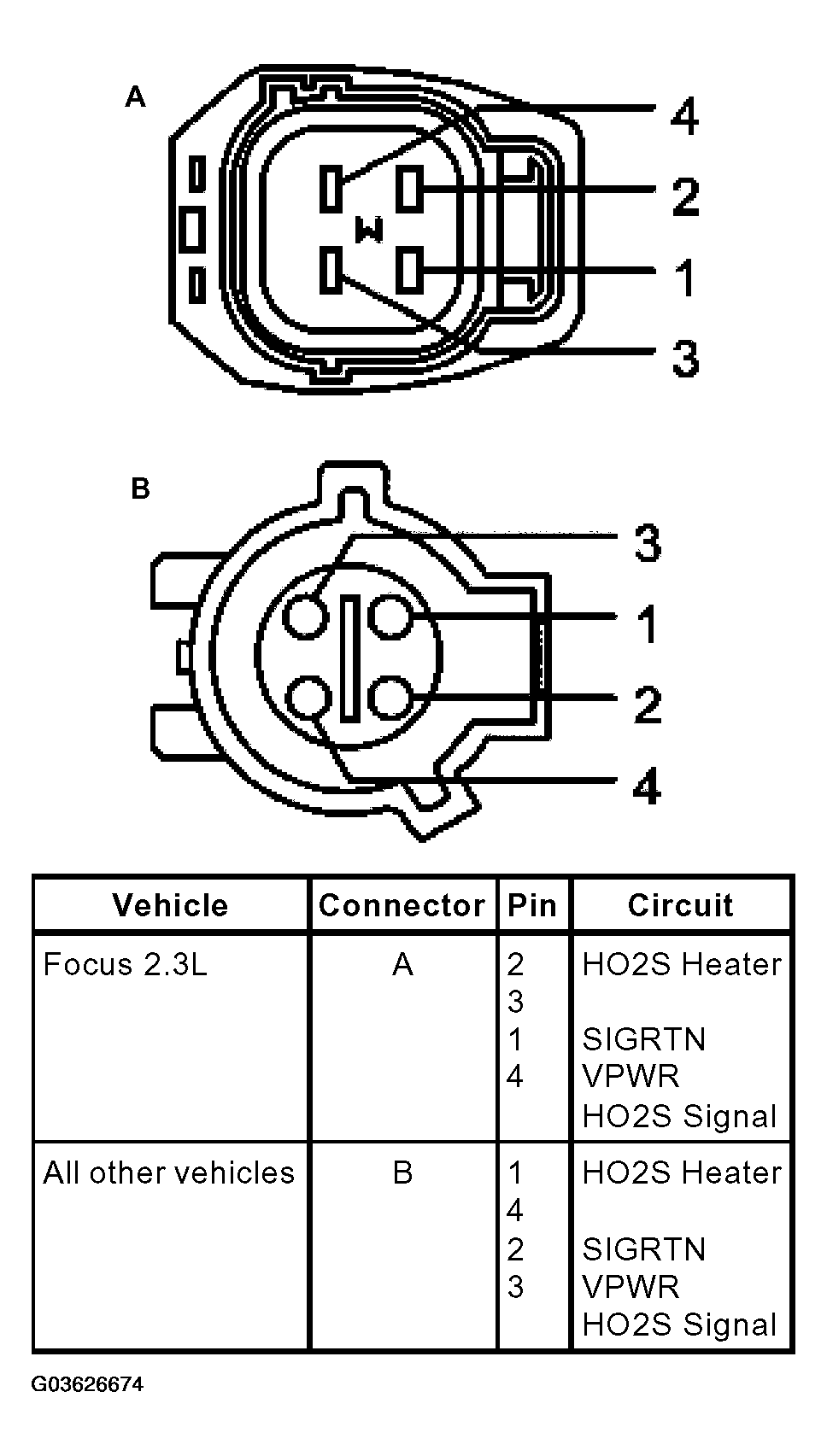

Fig 2: Identifying Heated Oxygen Sensor (HO2S) Connector
G03626674Courtesy of FORD MOTOR CO.

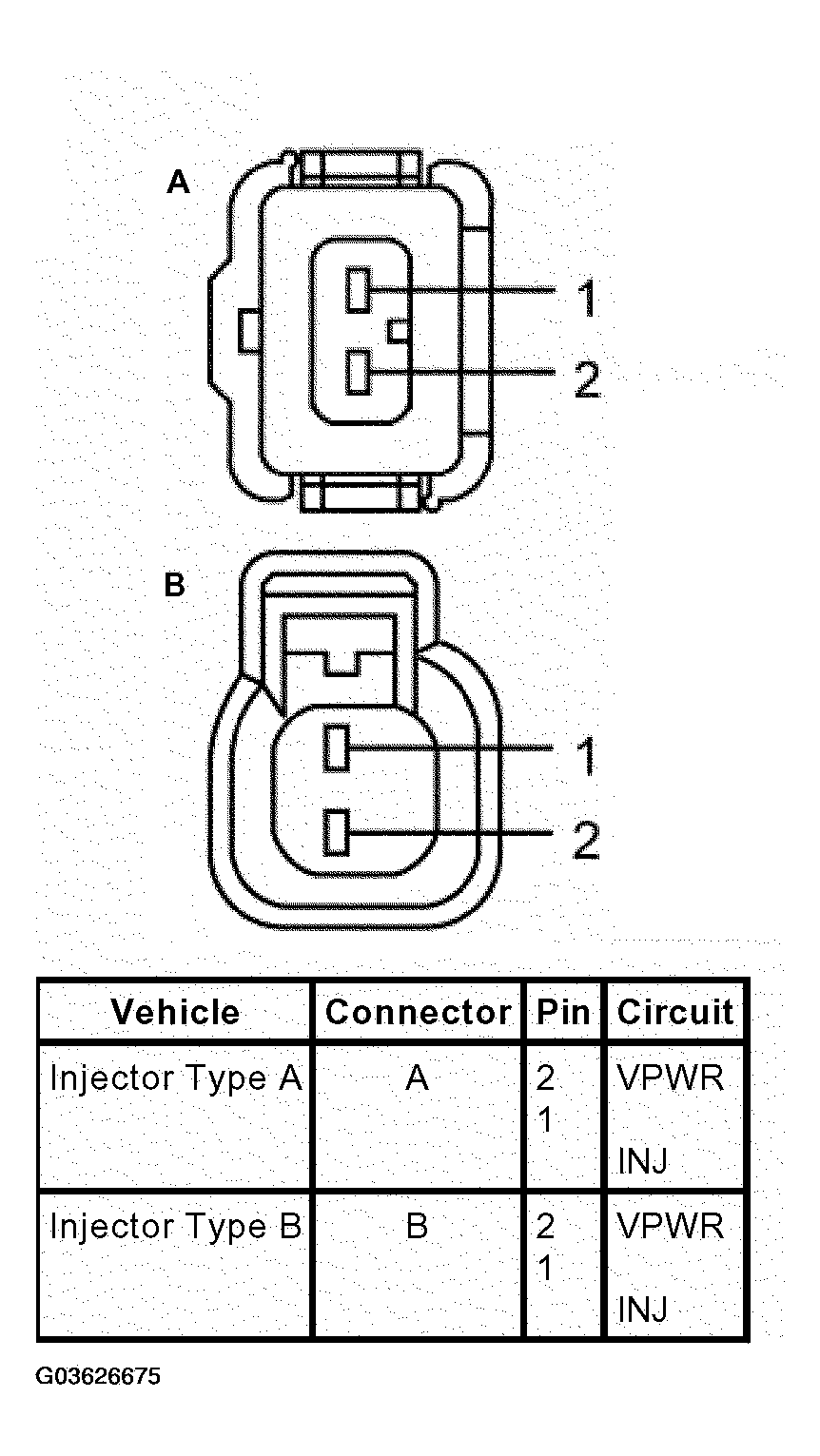

Fig 3: Identifying Injector (INJ) Connector
G03626675Courtesy of FORD MOTOR CO.
