Pinpoint Test FD: Brake Pedal Inputs: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • Brake Pedal Position (BPP) switch.
  • Brake pedal applied (BPA).
  • Harness circuits: B+, BPP, BPA.
  • Powertrain control module (PCM) (12A650).

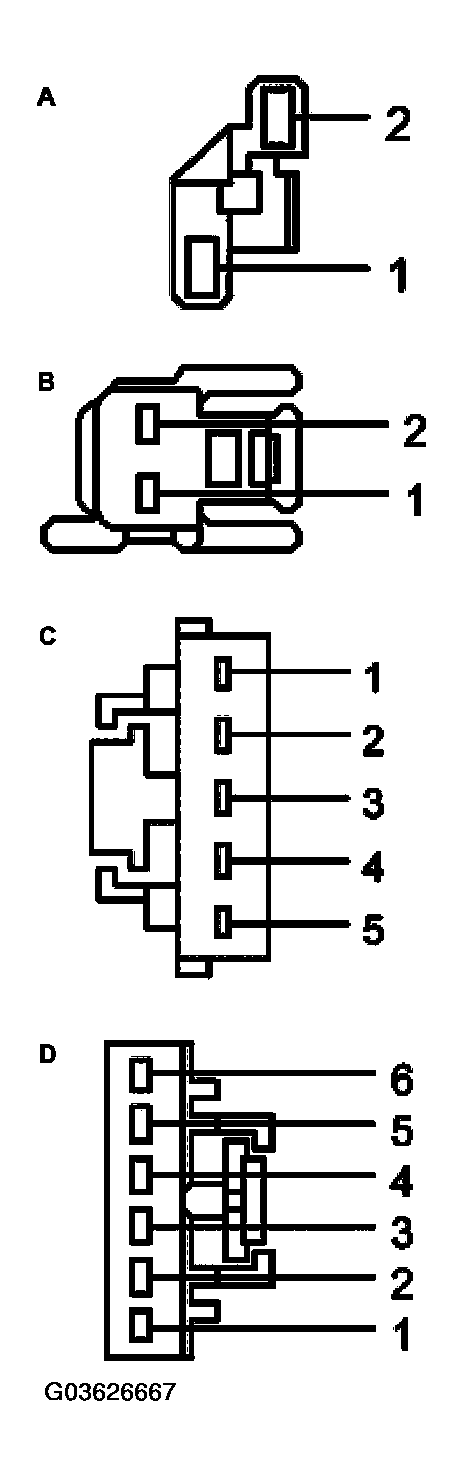

Fig 1: Identifying Brake Pedal Position (BPP) Switch Connector (1 Of 3)
G03626667Courtesy of FORD MOTOR CO.

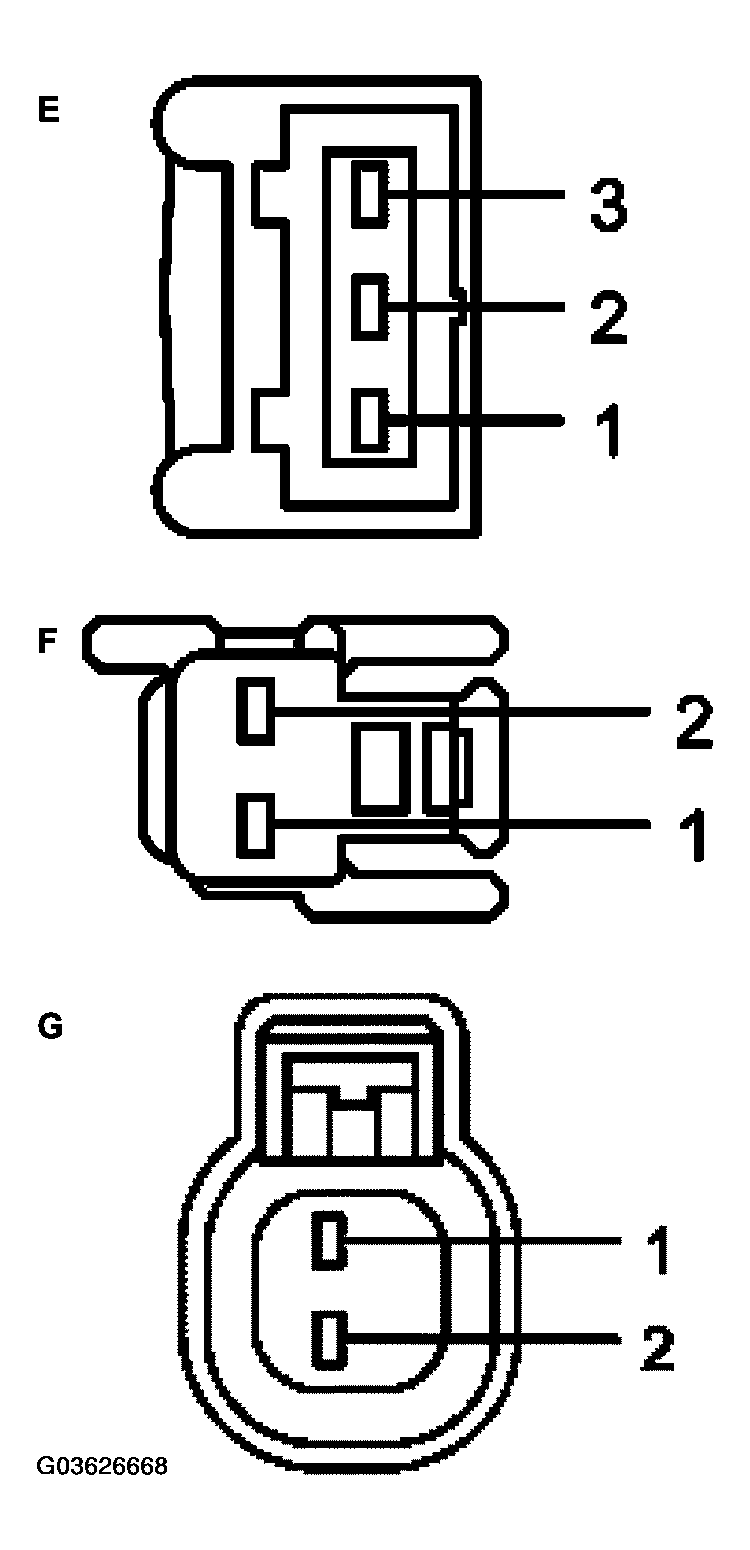

Fig 2: Identifying Brake Pedal Position (BPP) Switch Connector (2 Of 3)
G03626668Courtesy of FORD MOTOR CO.

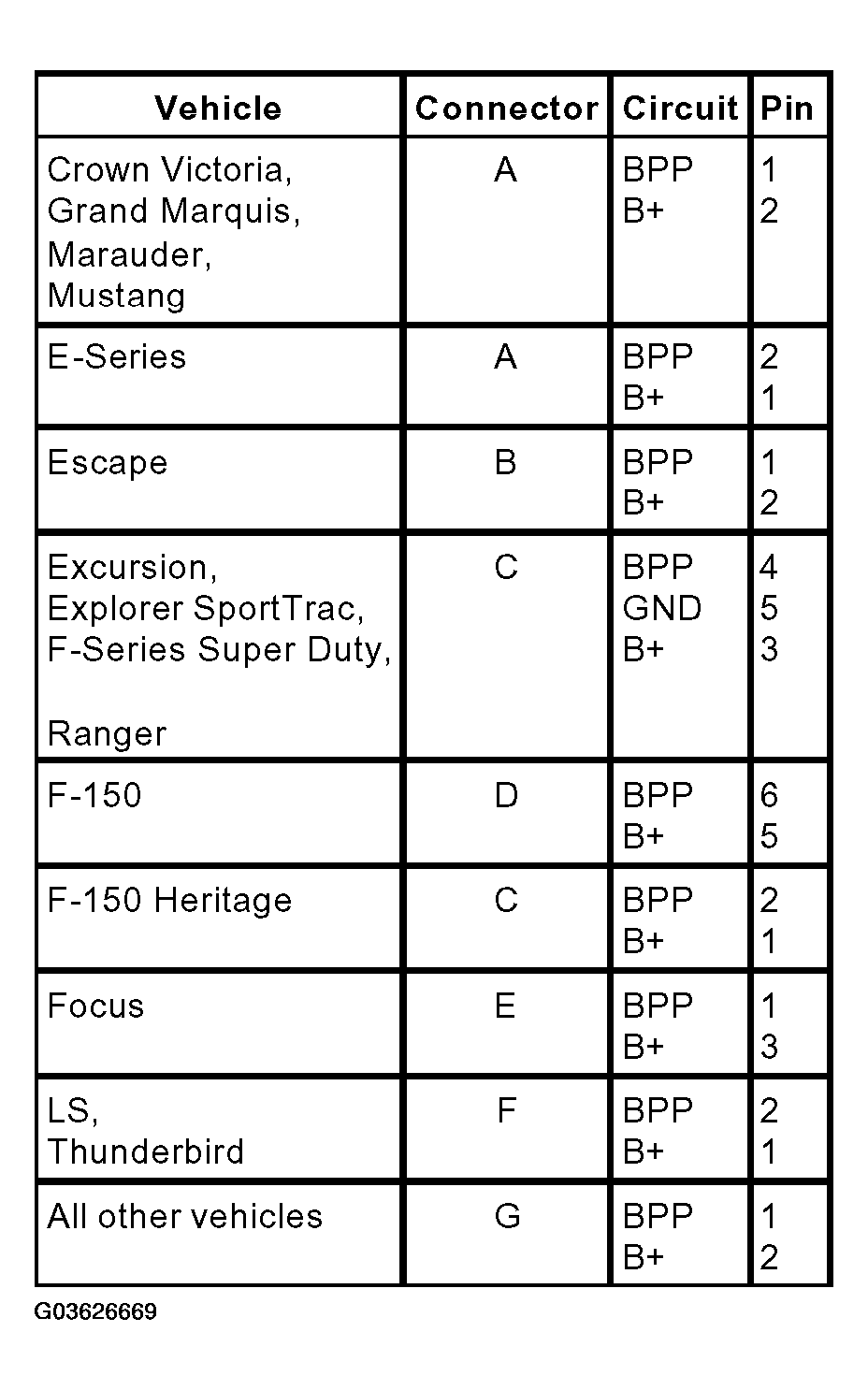

Fig 3: Identifying Brake Pedal Position (BPP) Switch Connector (3 Of 3)
G03626669Courtesy of FORD MOTOR CO.

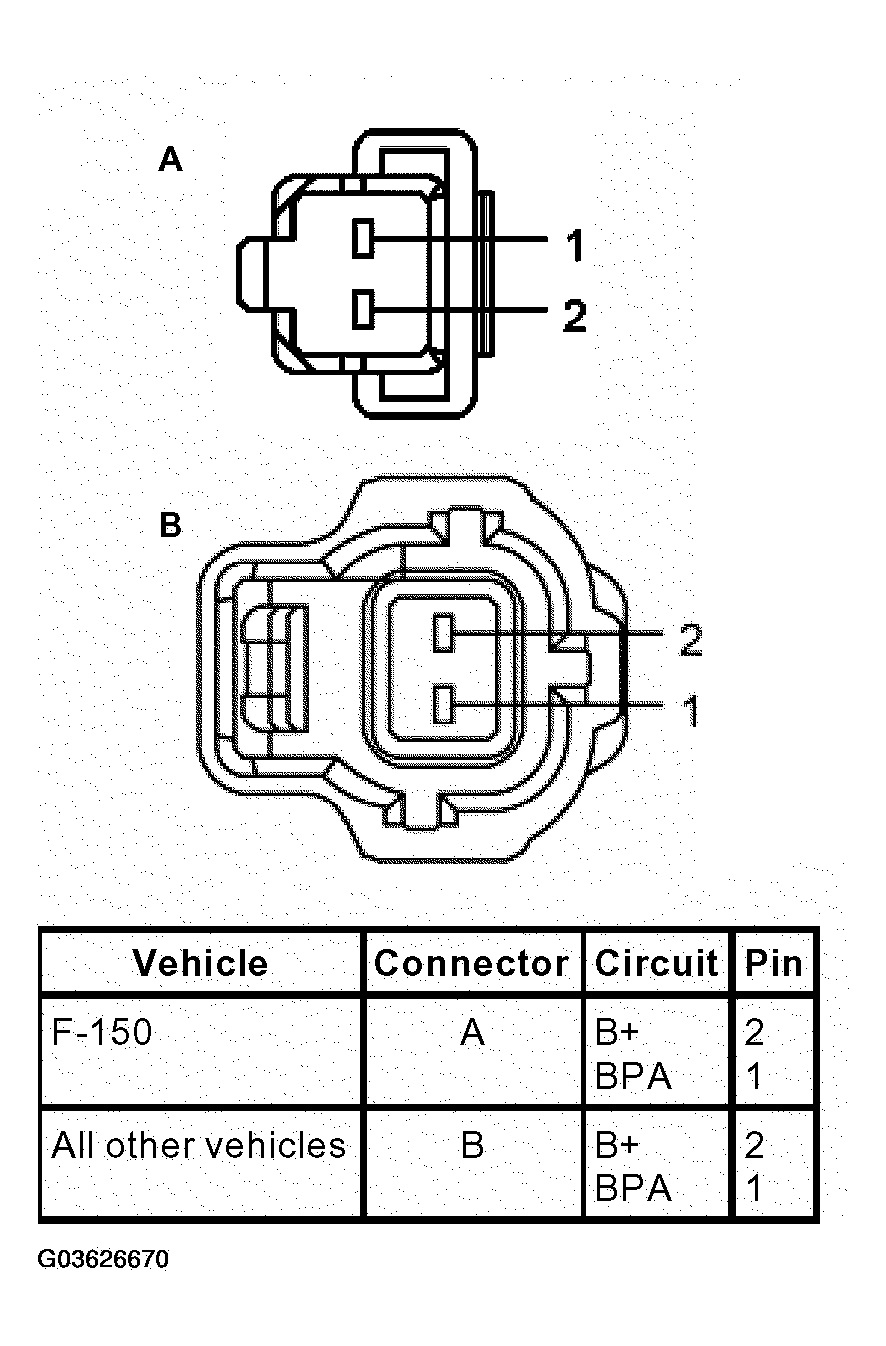

Fig 4: Identifying Brake Pressure Applied (BPA) Switch Connector
G03626670Courtesy of FORD MOTOR CO.
