Pinpoint Test DV: Throttle Body Assembly ETC: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • Electronic throttle body (ETB) (9F991)
  • Harness circuits: ETCRTN, ETCREF, TP1, TP2, TACM+, TACM-.
  • Powertrain control module (PCM) (12A650)
WARNING: SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY, BE CAREFUL TO KEEP FINGERS AWAY FROM THROTTLE MECHANISM WHEN ACTUATED.

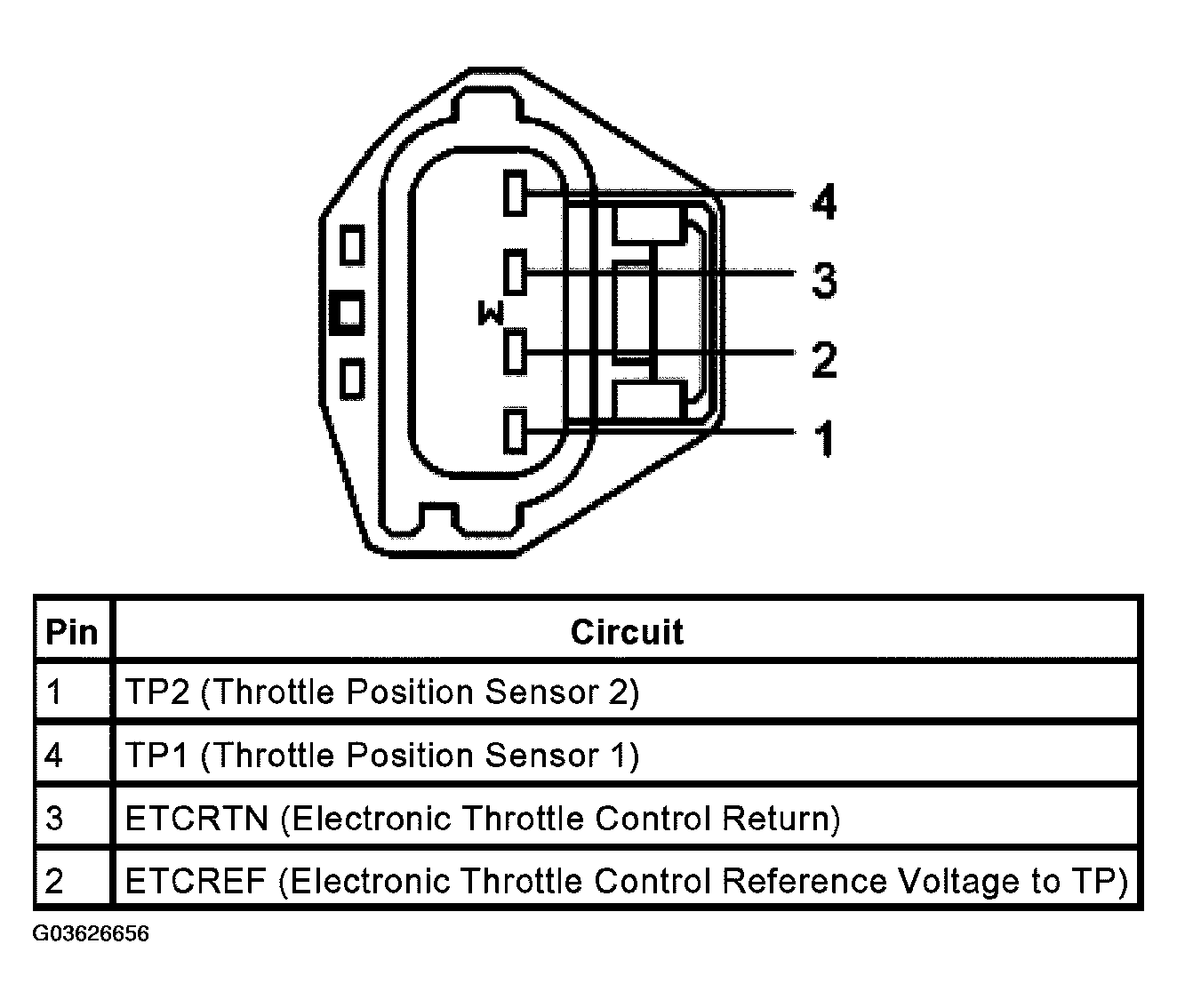

Fig 1: Identifying Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector
G03626656Courtesy of FORD MOTOR CO.

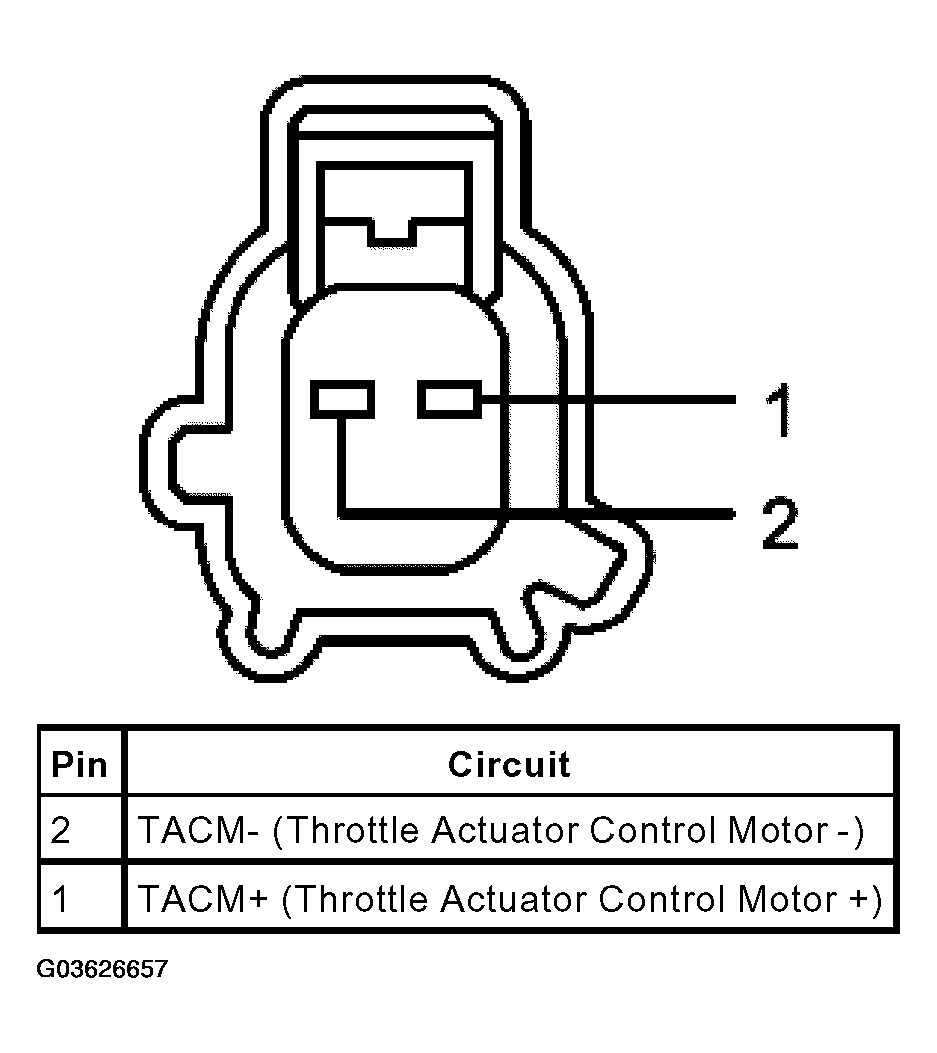

Fig 2: Identifying Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector
G03626657Courtesy of FORD MOTOR CO.
