Pinpoint Test DT: Power Steering Pressure Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2004 Mercury Sable, 2004 Mercury Mountaineer, 2004 Mercury Monterey, 2004 Mercury Marauder, and 2004 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This pinpoint test is intended to diagnose the following:
  • Power Steering Pressure Sensor (3K215).
  • Harness circuit(s): PSP, SIGRTN & VREF.
  • Powertrain control module (PCM) (12A650).

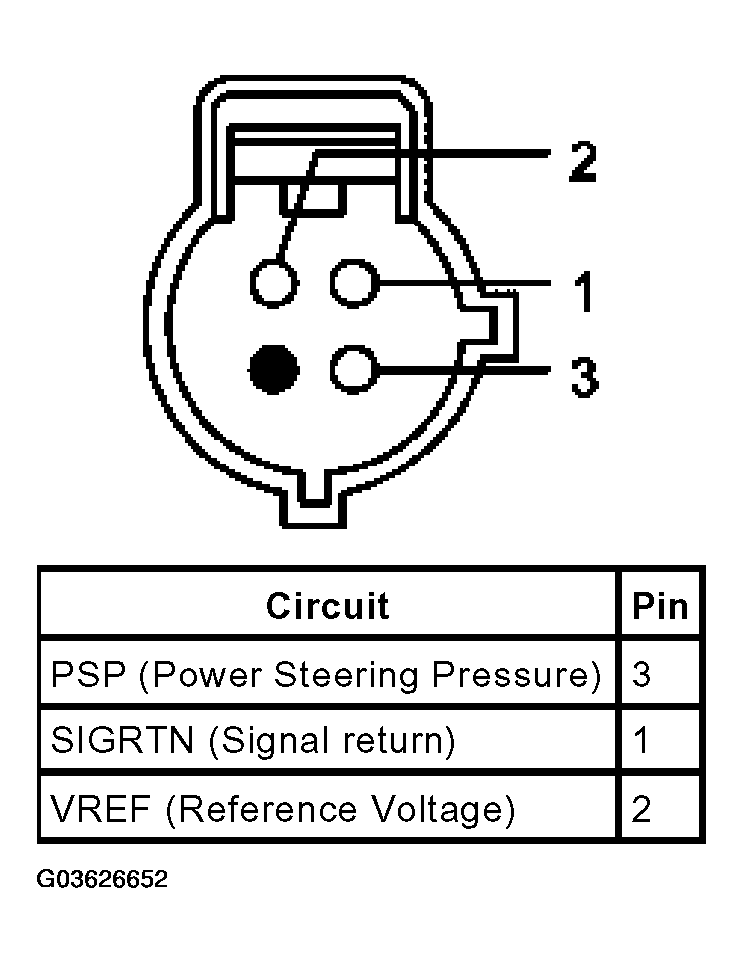

Fig 1: Identifying Power Steering Pressure (PSP) Sensor Connector
G03626652Courtesy of FORD MOTOR CO.
