Intake Air System

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
VEHICLE IMRC OFF IMRC ON
BASE 2.5 0
Focus, 2.0L 0 5
Focus, 2.3L 0 5
F-150, 5.4L 5 0

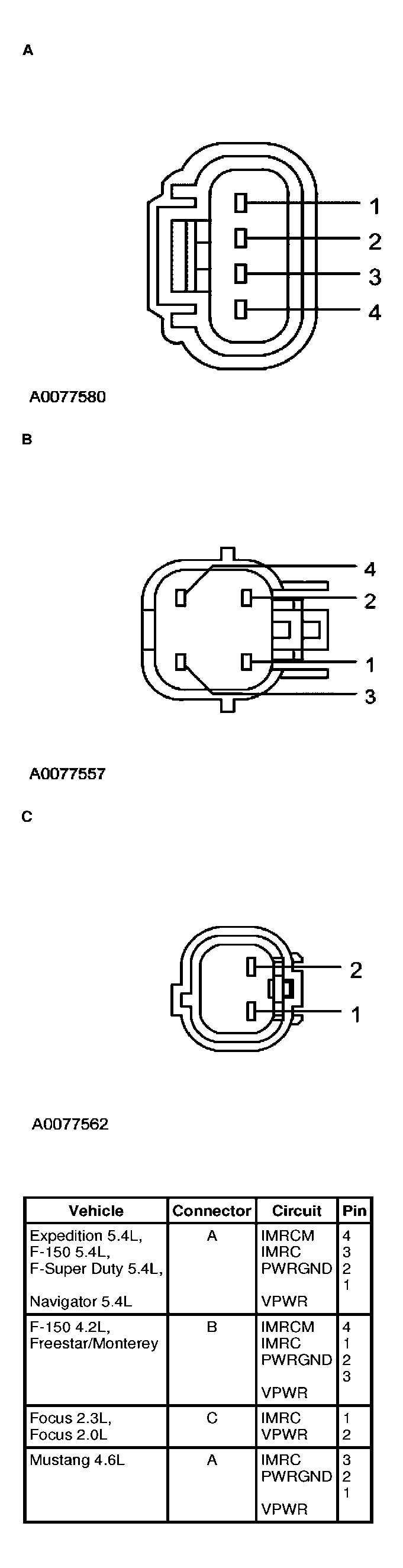

Fig 1: Intake Manifold Runner Control (IMRC) Actuator Connector
G03878110Courtesy of FORD MOTOR CO.
