Pinpoint Test H: Fuel Control: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
CROWN VICTORIA POLICE INTERCEPTOR VEHICLES EQUIPPED WITH FIRE SUPPRESSION SYSTEM, REFER TO
FIRE SUPPRESSION SYSTEM
FOR IMPORTANT SAFETY WARNINGS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
This pinpoint test is intended to diagnose the following:

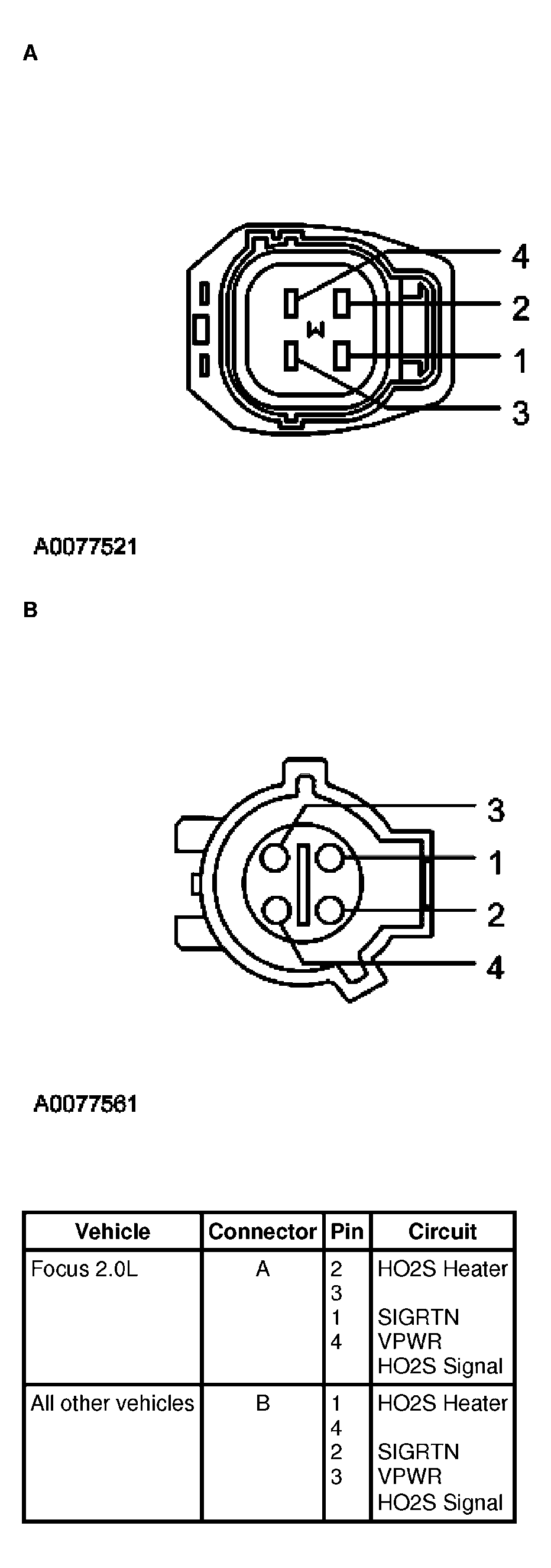

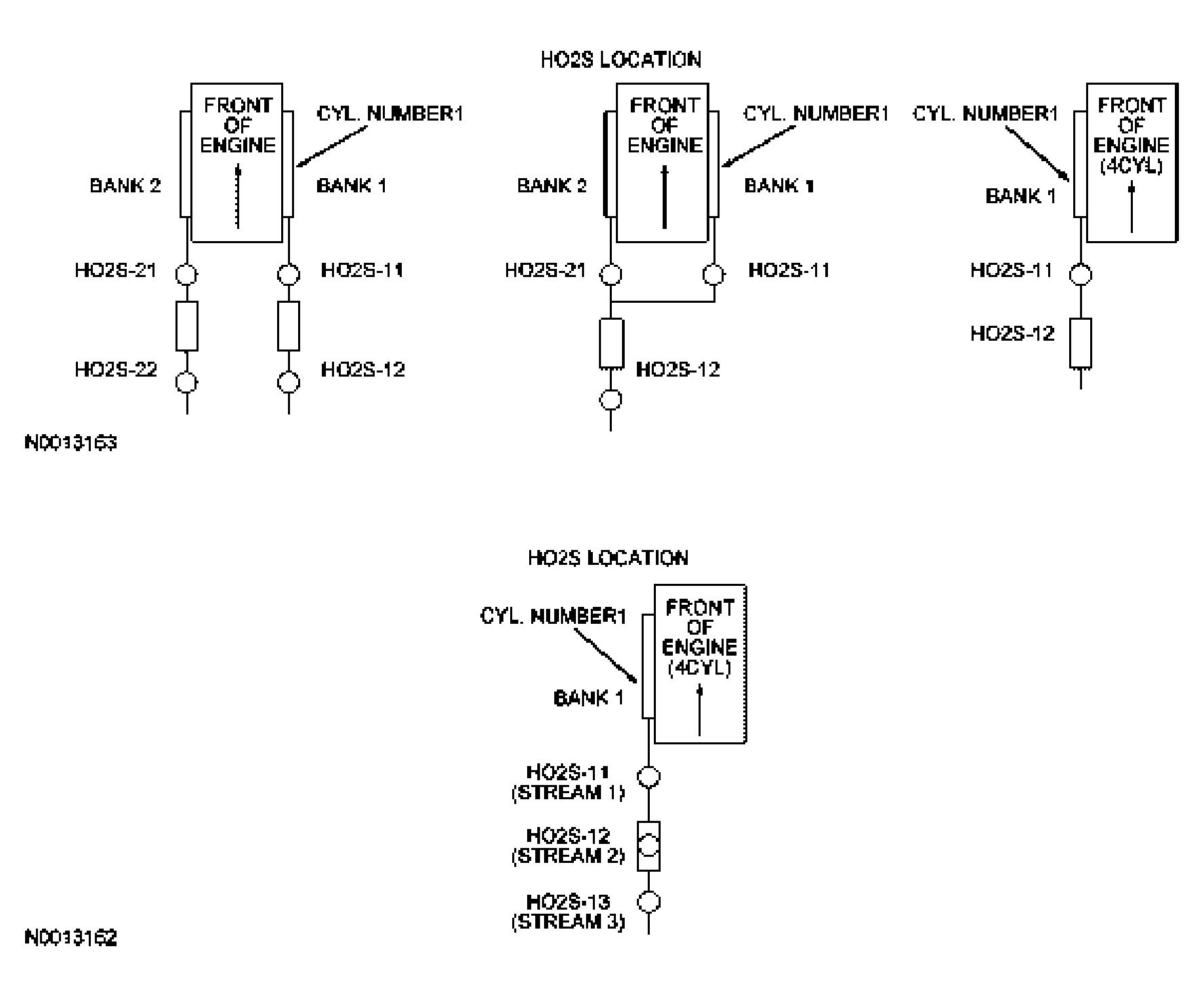

- HO2S/O2S (9F472).
- HO2S/O2S (9G444).

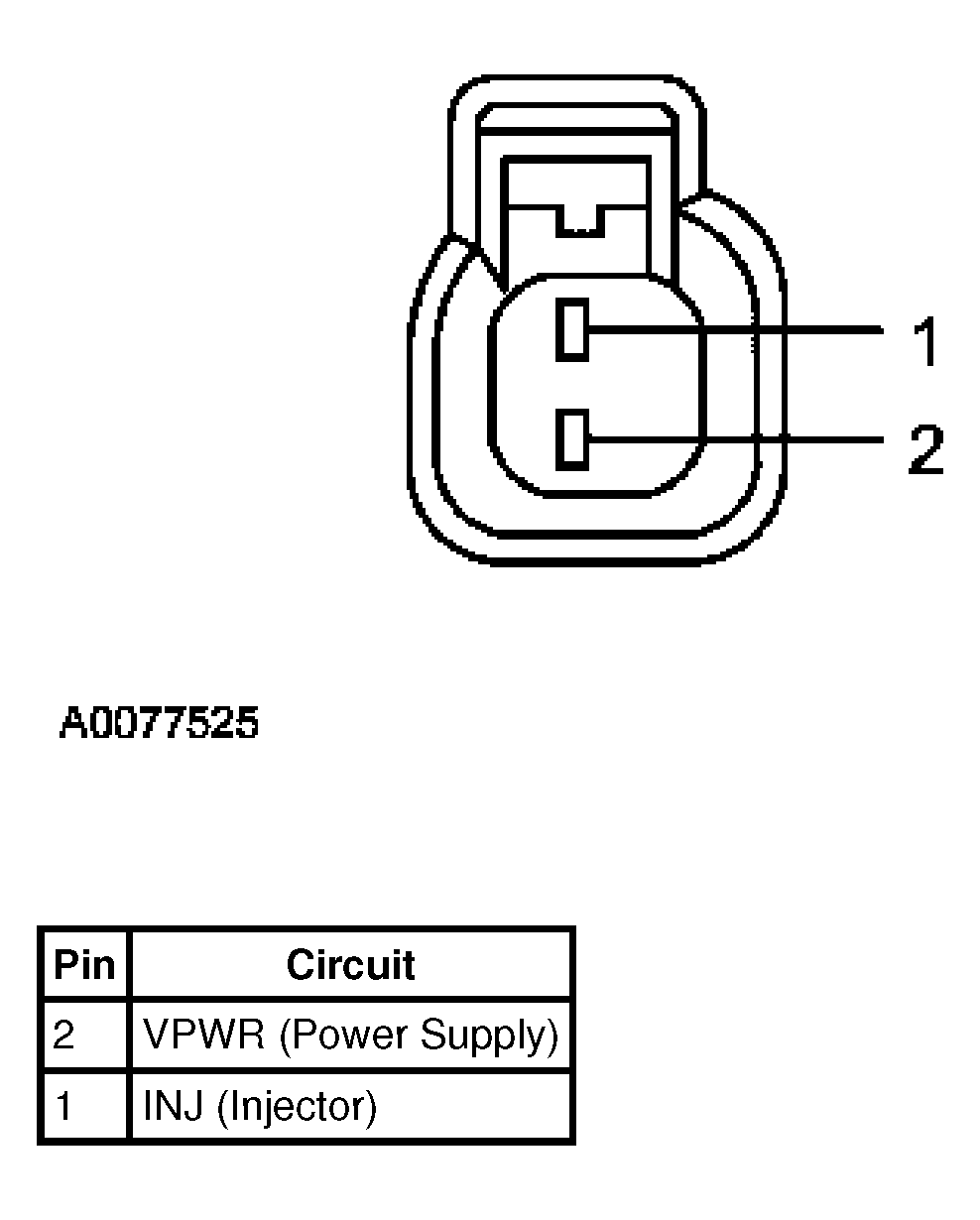

- Fuel injector(s) (9F593).
- Harness circuits: HO2S, SIGRTN, VPWR, HO2S Heater, and INJ 1 - 10.
- Vacuum systems.
- Powertrain control module (PCM) (12A650).
