Pinpoint Test DV: Throttle Body Assembly ETC: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY, BE CAREFUL TO KEEP FINGERS AWAY FROM THROTTLE MECHANISM WHEN ACTUATED.

This pinpoint test is intended to diagnose the following:

Electronic throttle body (ETB) (9F991)
Harness circuits: ETCRTN, ETCREF, TP1, TP2, TACM+, and TACM-
Powertrain control module (PCM) (12A650)

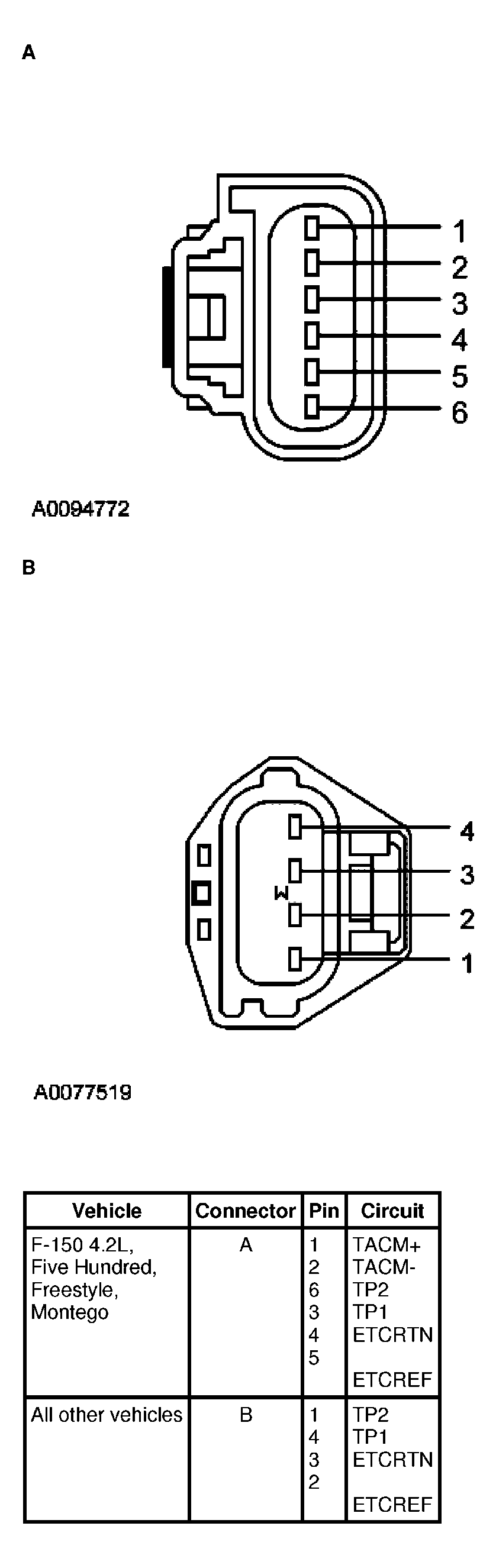

Fig 1: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector
Courtesy of FORD MOTOR CO.

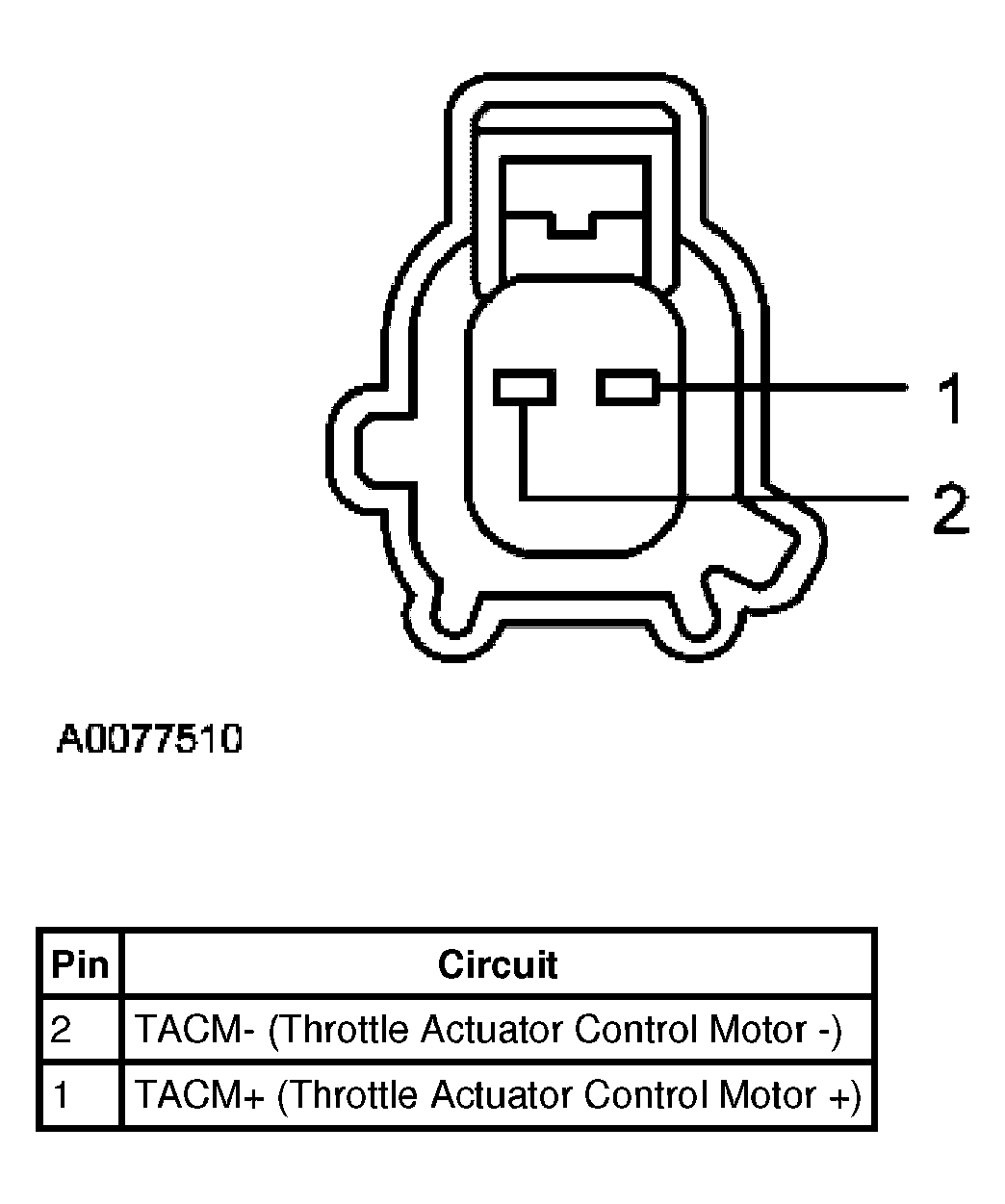

Fig 2: Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector

Courtesy of FORD MOTOR CO.
