Pinpoint Test DH: Throttle Position (TP) Sensor: Introduction

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2010 Mercury Milan, 2010 Mercury Mariner, 2010 Mercury Grand Marquis, 2010 Lincoln Town Car, and 2010 Lincoln Navigator L. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

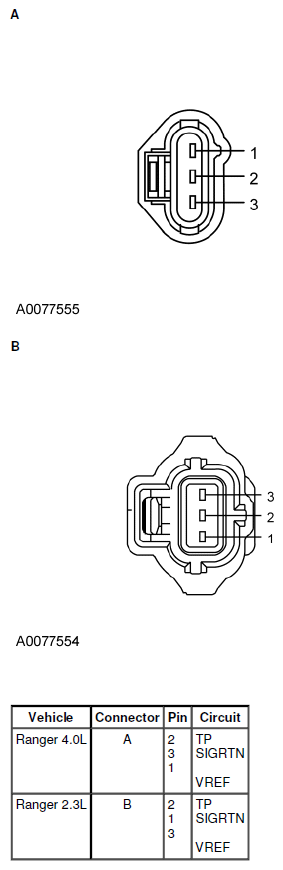

Fig 1: Throttle Position (TP) Sensor Connector
G06290601Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART

Connector Pin Circuit
170 Pin E58
B47, B48, B49, B50
B40, E57
B35, B36
E61		 SIGRTN
PWRGND
VREF
VPWR
TP
