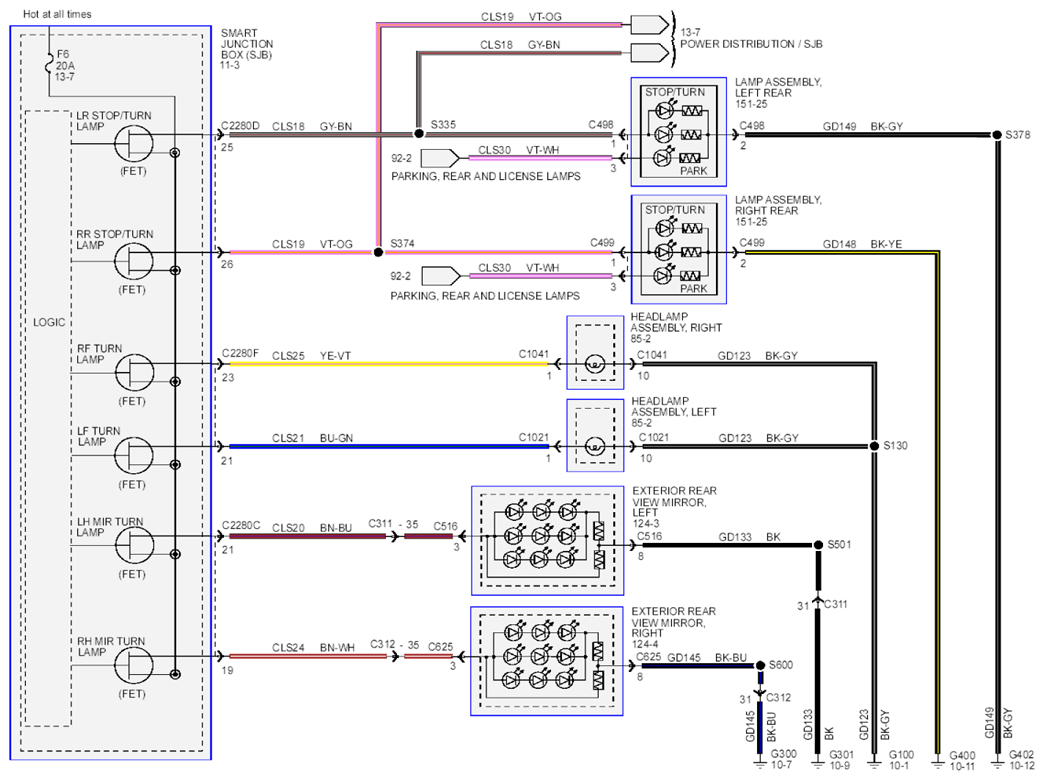

Fig 1: Turn Signal, Stop And Hazard Lamps Circuit Diagram - With Adaptive Cruise Control (1 Of 3)
Courtesy of FORD MOTOR CO.

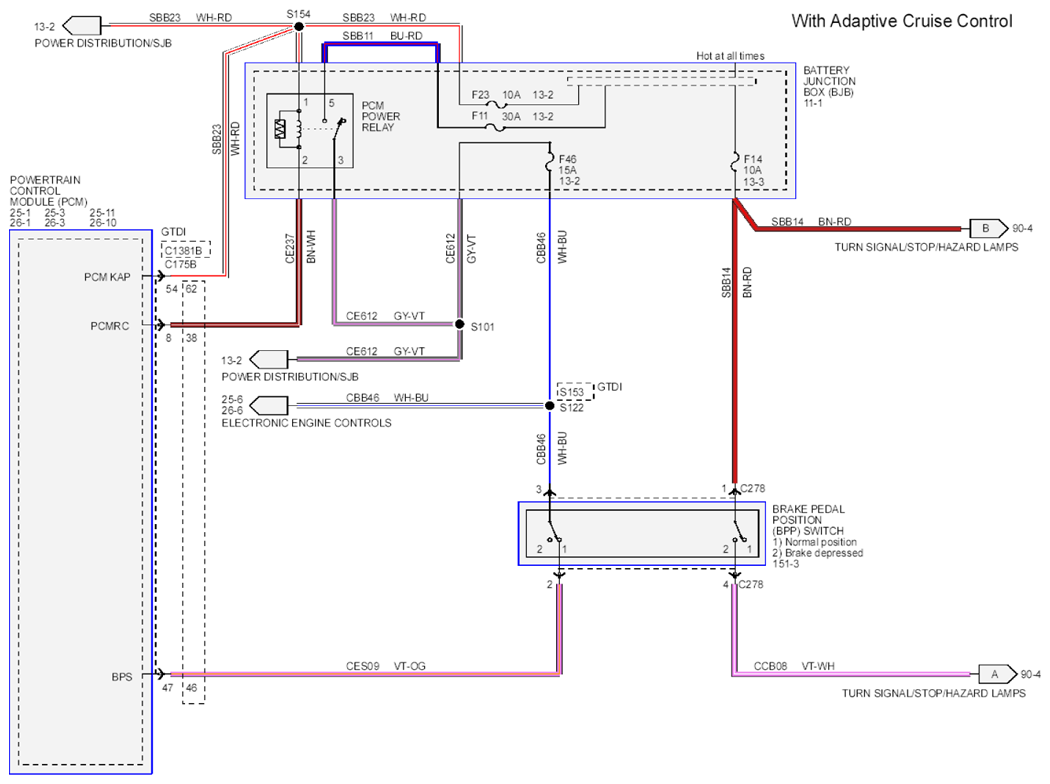

Fig 2: Turn Signal, Stop And Hazard Lamps Circuit Diagram - With Adaptive Cruise Control (2 Of 3)
Courtesy of FORD MOTOR CO.

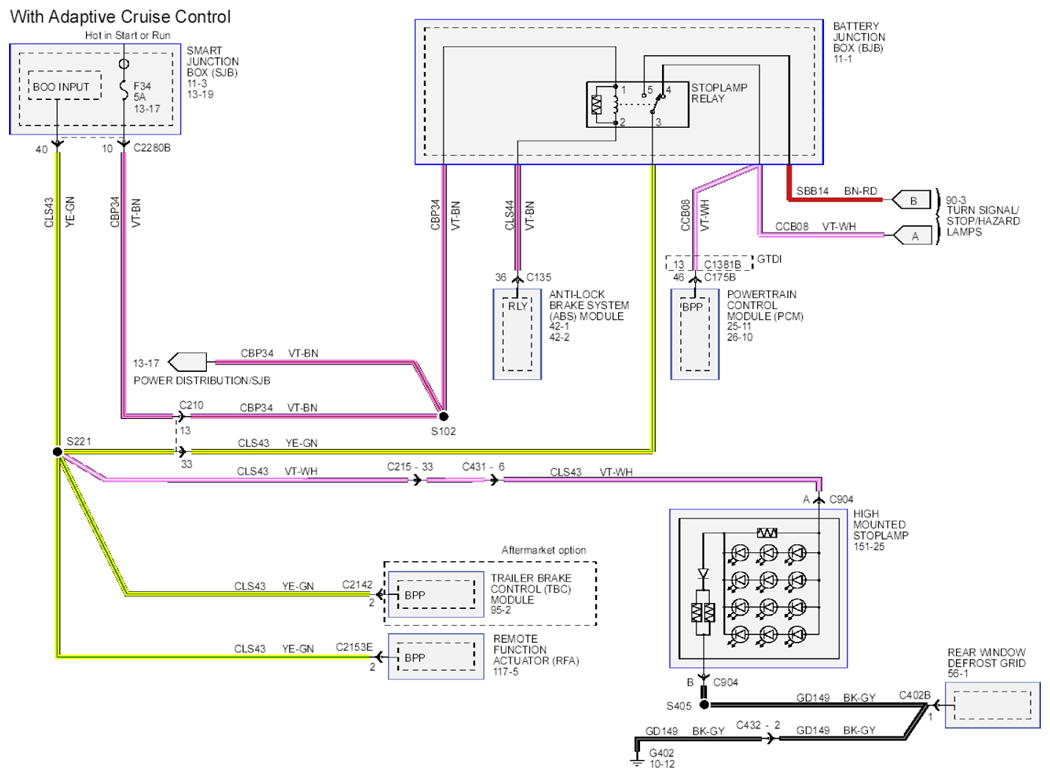

Fig 3: Turn Signal, Stop And Hazard Lamps Circuit Diagram - With Adaptive Cruise Control (3 Of 3)
