Turn Signal_Stop_Hazard Lamps: Notes

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

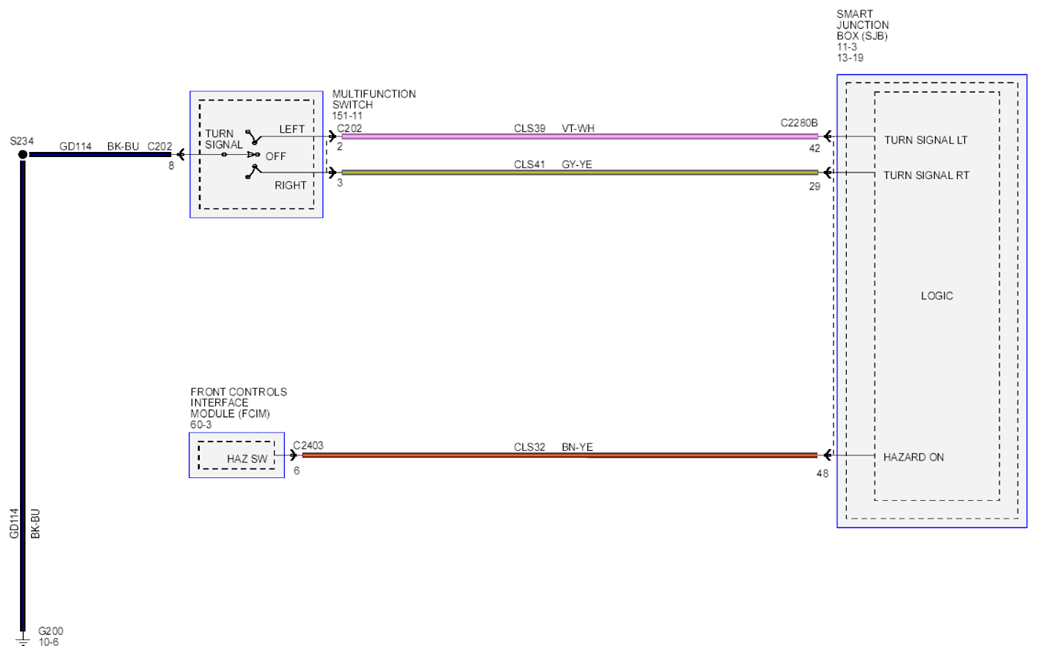

Fig 1: Turn Signal, Stop And Hazard Lamps Circuit Diagram
G07880461Courtesy of FORD MOTOR CO.
