WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

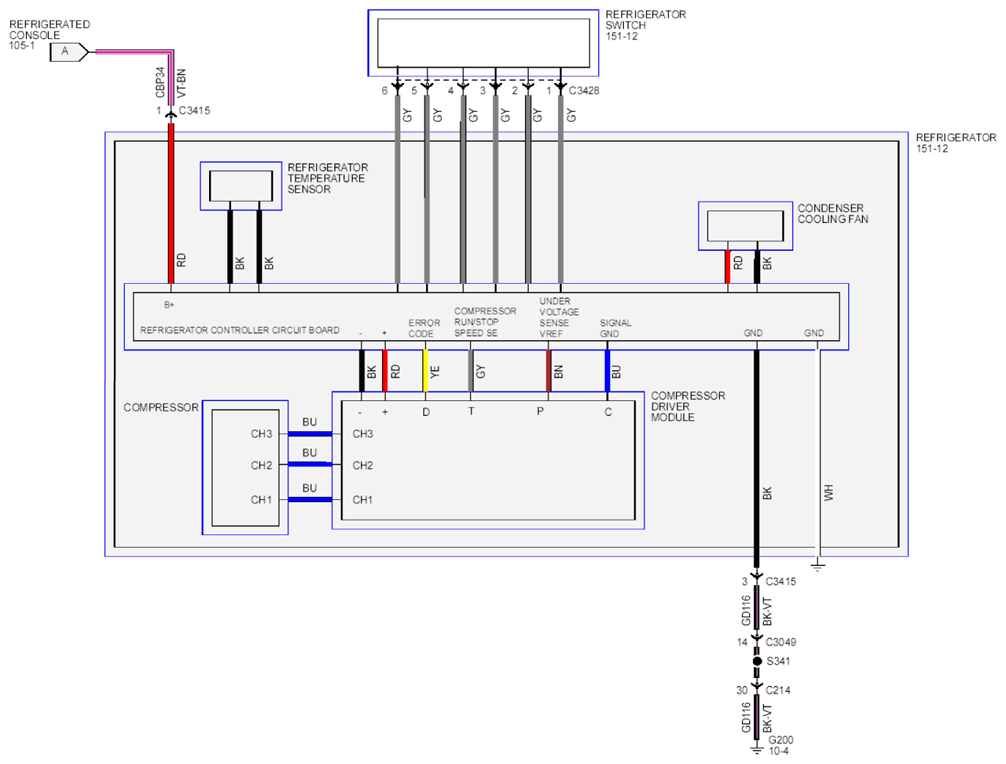

Fig 1: Refrigerated Console Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

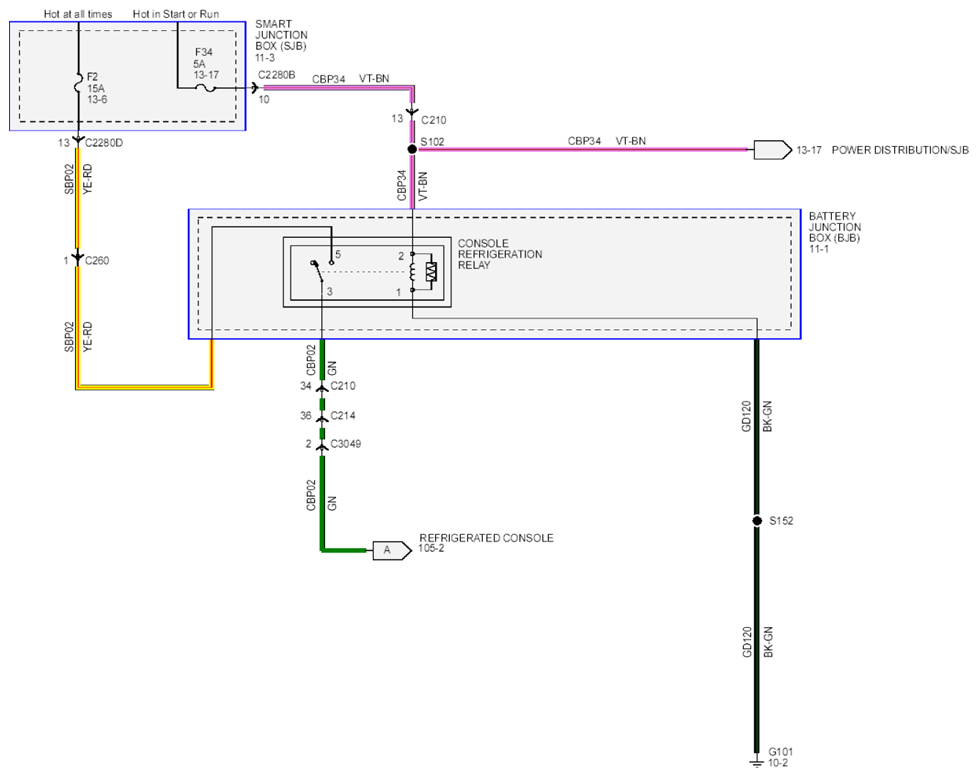

Fig 2: Refrigerated Console Circuit Diagram (2 Of 2)
