Section 2725 (OEM Wiring Diagrams)
>>
Power Windows
Power Windows
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

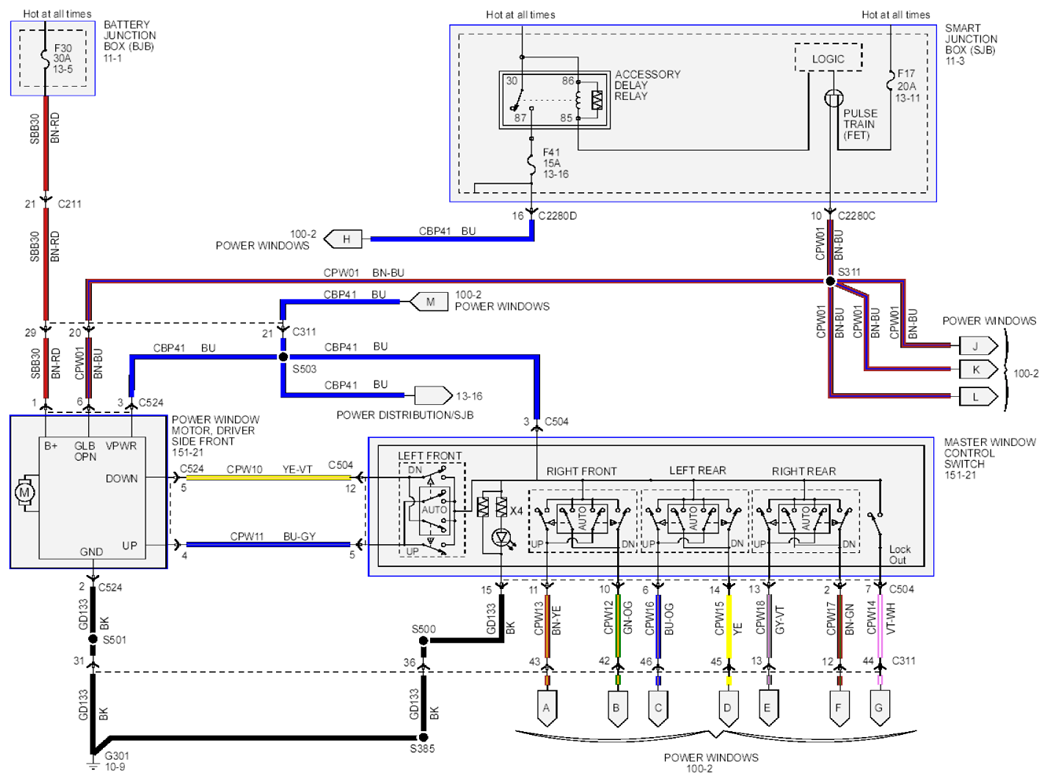

Fig 1: Power Windows Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

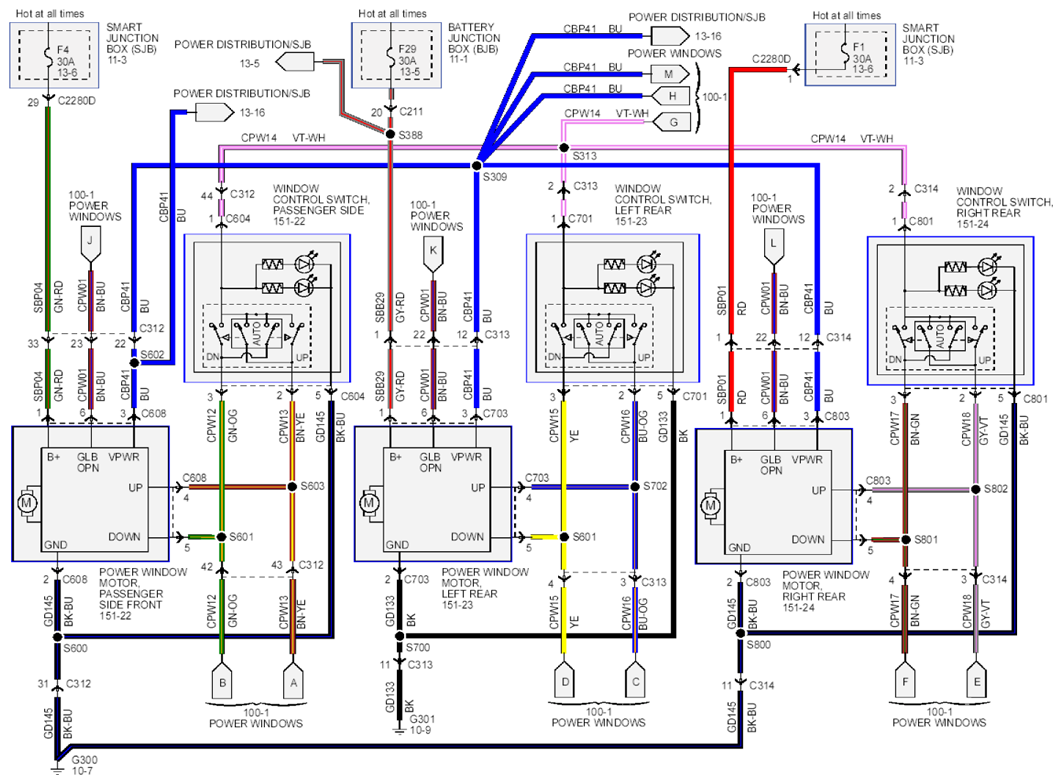

Fig 2: Power Windows Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
