WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power Distribution Circuit Diagram - F43 And F45 (1 Of 4)
Courtesy of FORD MOTOR CO.
Fig 2: Power Distribution Circuit Diagram - F43 And F45 (2 Of 4)
Courtesy of FORD MOTOR CO.

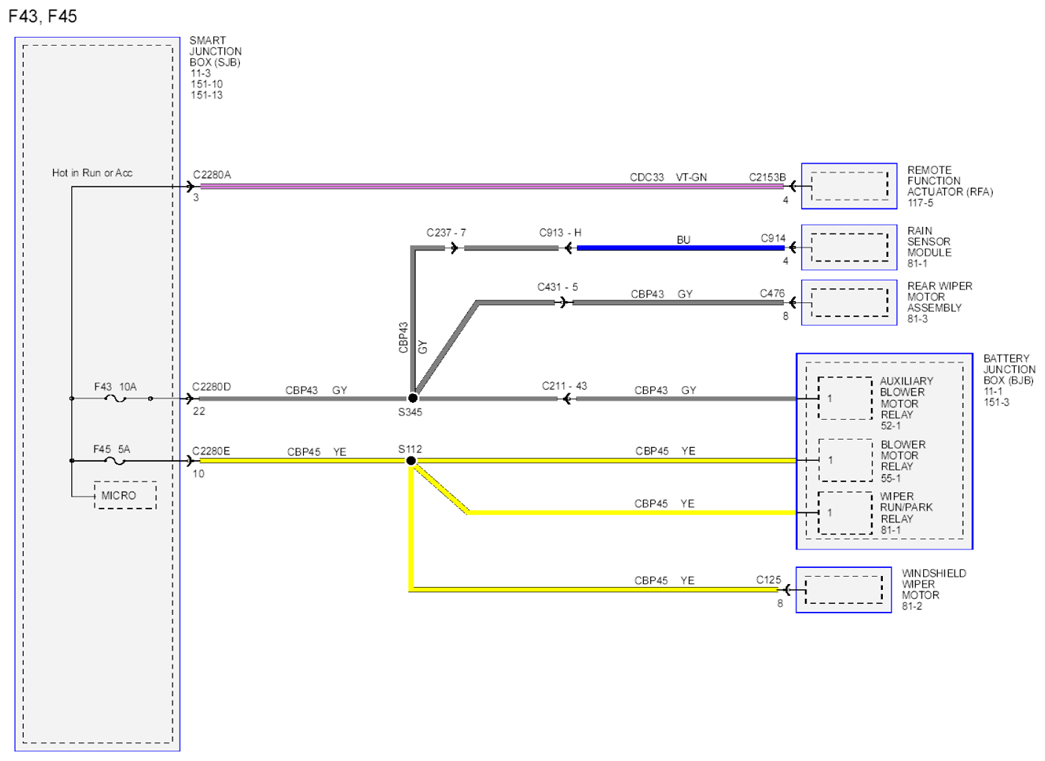

Fig 3: Power Distribution Circuit Diagram - F43 And F45 (3 Of 4)
Courtesy of FORD MOTOR CO.

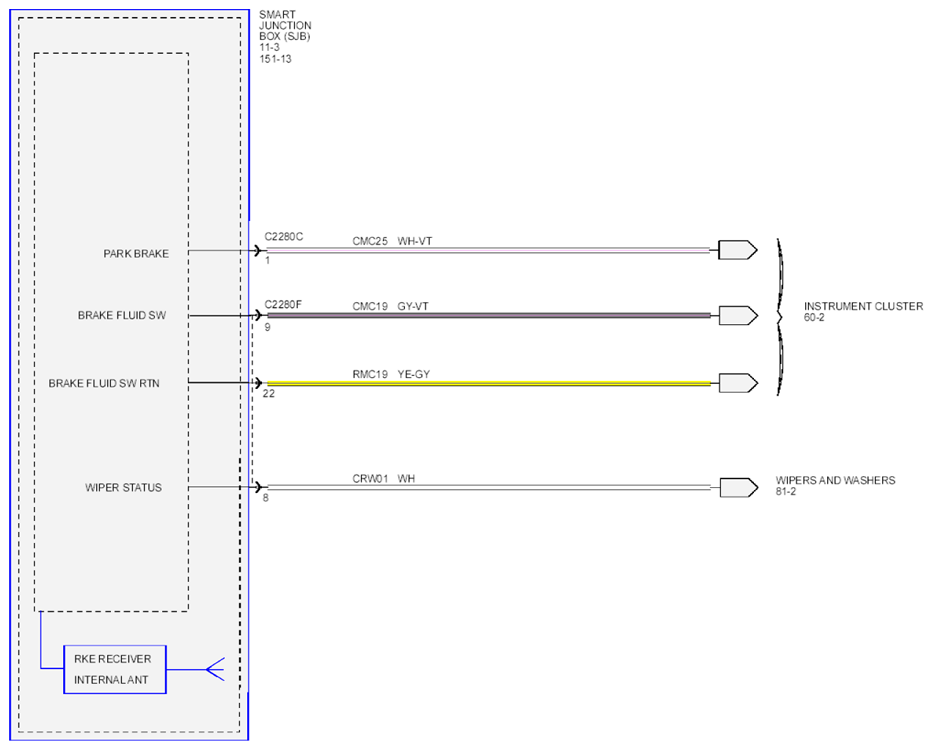

Fig 4: Power Distribution Circuit Diagram - F43 And F45 (4 Of 4)
