F24, F25

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

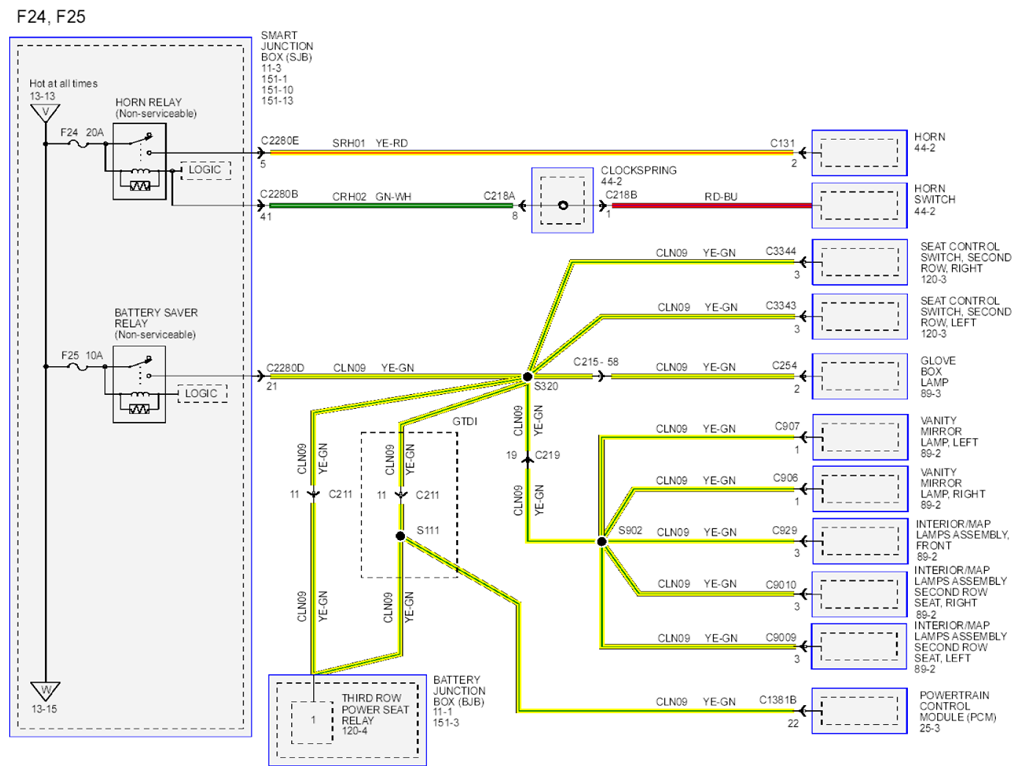

Fig 1: Power Distribution Circuit Diagram - F24 And F25
G07880372Courtesy of FORD MOTOR CO.
