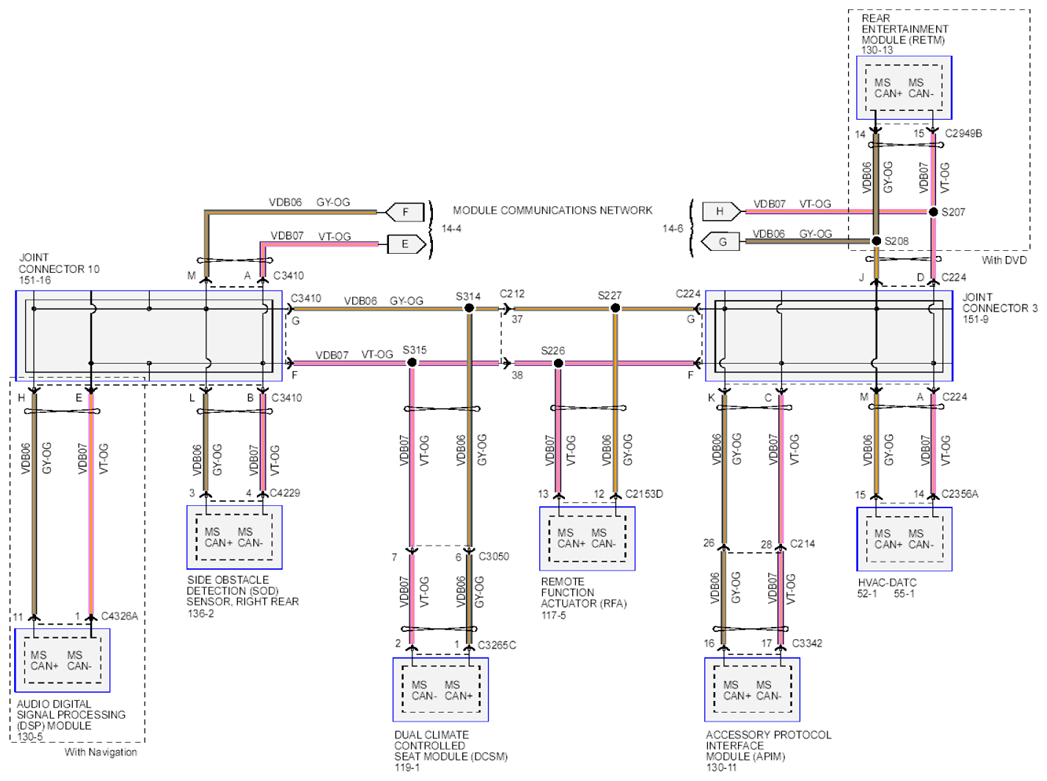

Fig 1: Module Communications Network Circuit Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

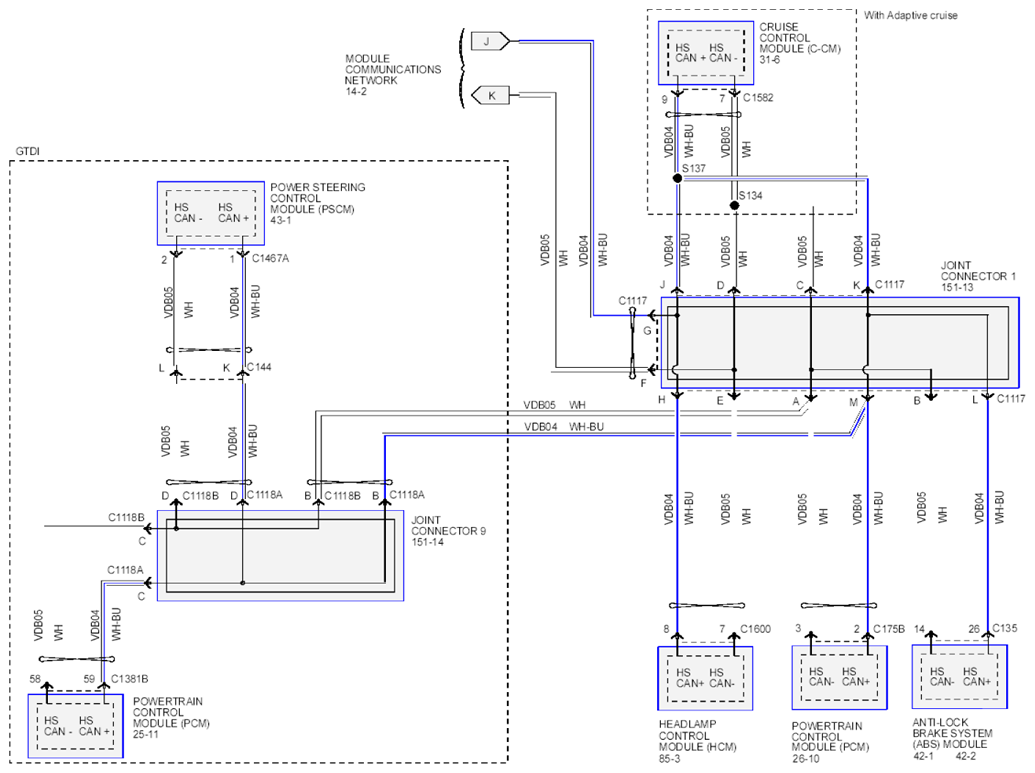

Fig 2: Module Communications Network Circuit Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

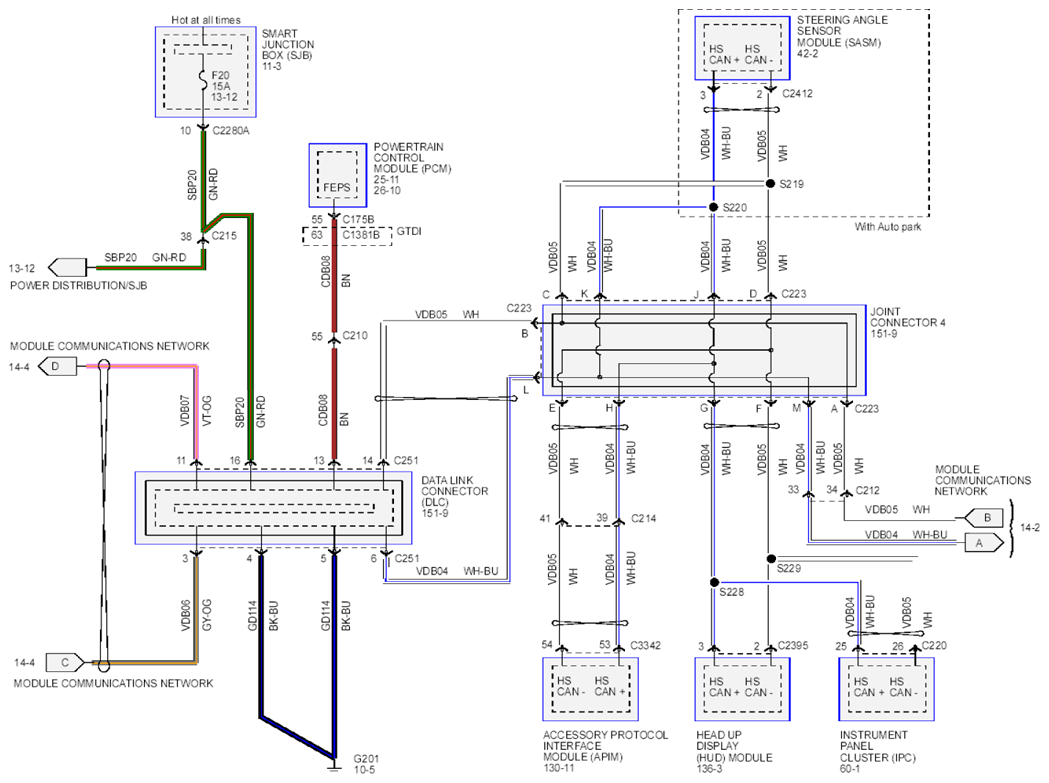

Fig 3: Module Communications Network Circuit Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

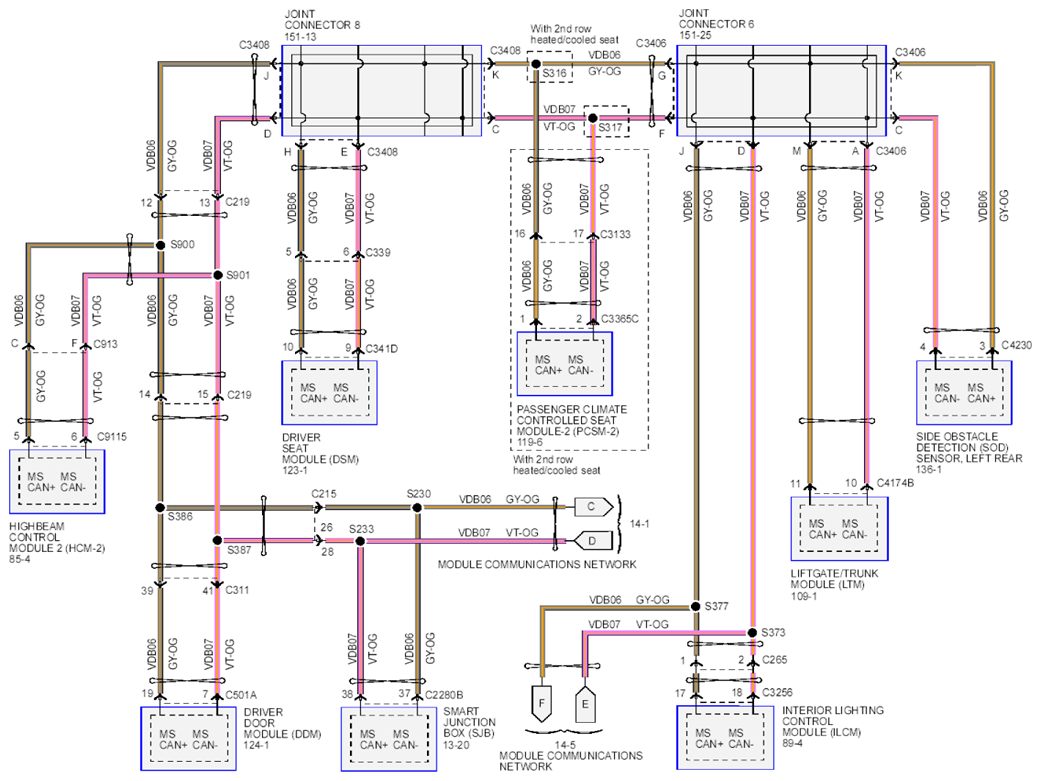

Fig 4: Module Communications Network Circuit Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

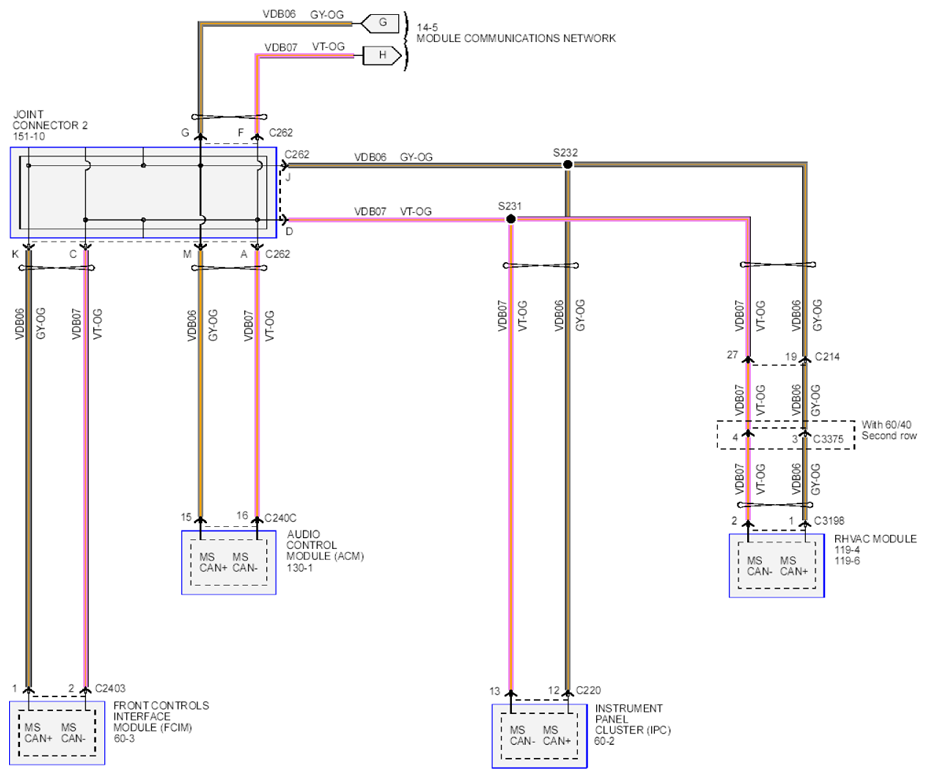

Fig 5: Module Communications Network Circuit Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

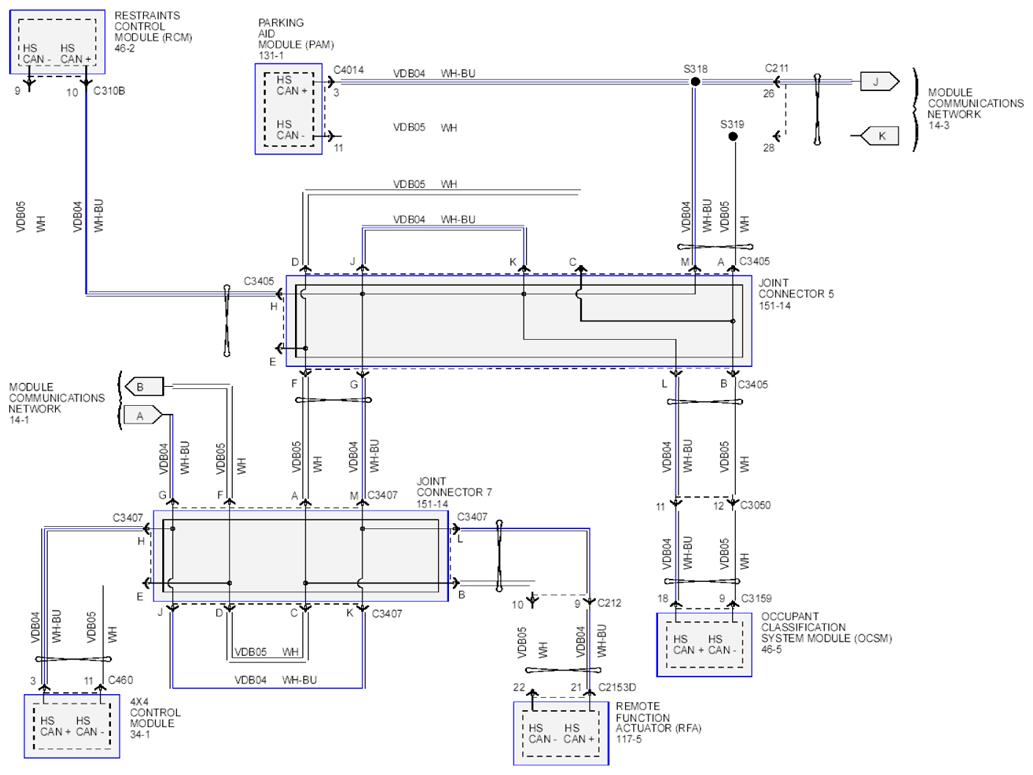

Fig 6: Module Communications Network Circuit Diagram (6 Of 6)
