12-Way Driver

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

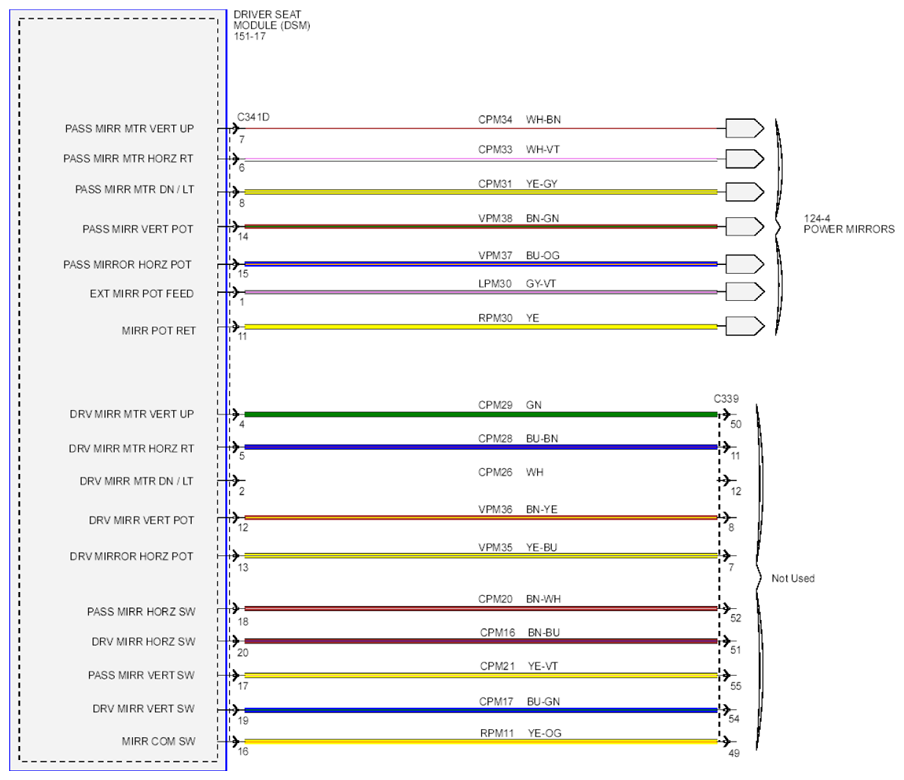

Fig 1: Memory Seats Circuit Diagram - 12-Way Driver (1 Of 4)

Courtesy of FORD MOTOR CO.

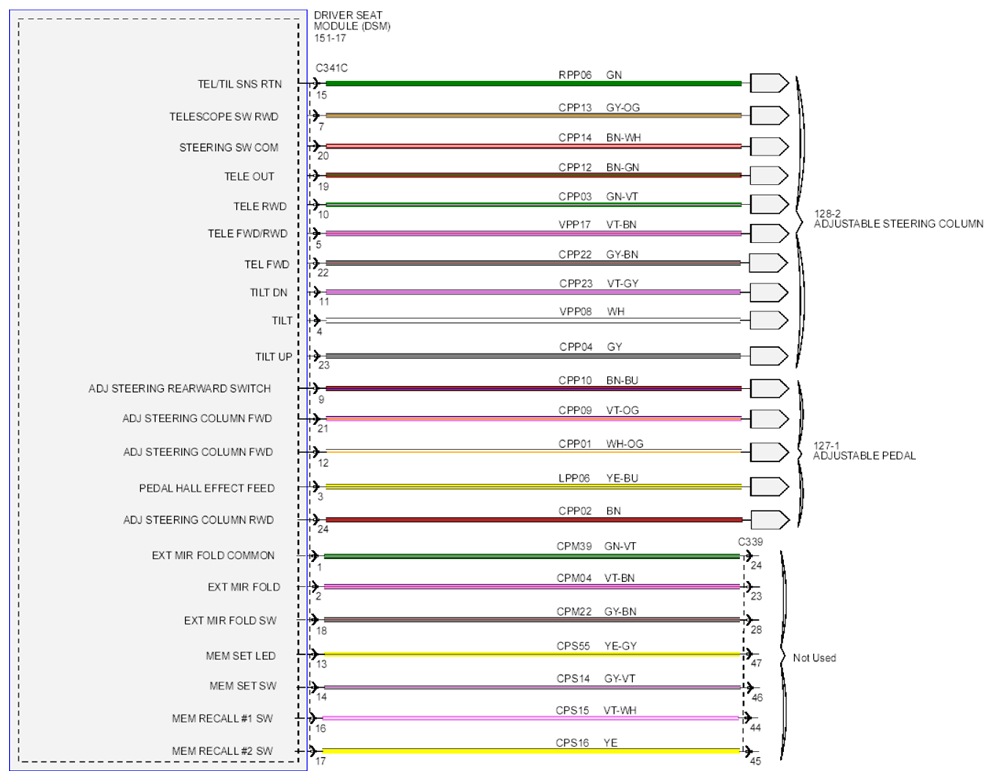

Fig 2: Memory Seats Circuit Diagram - 12-Way Driver (2 Of 4)

Courtesy of FORD MOTOR CO.

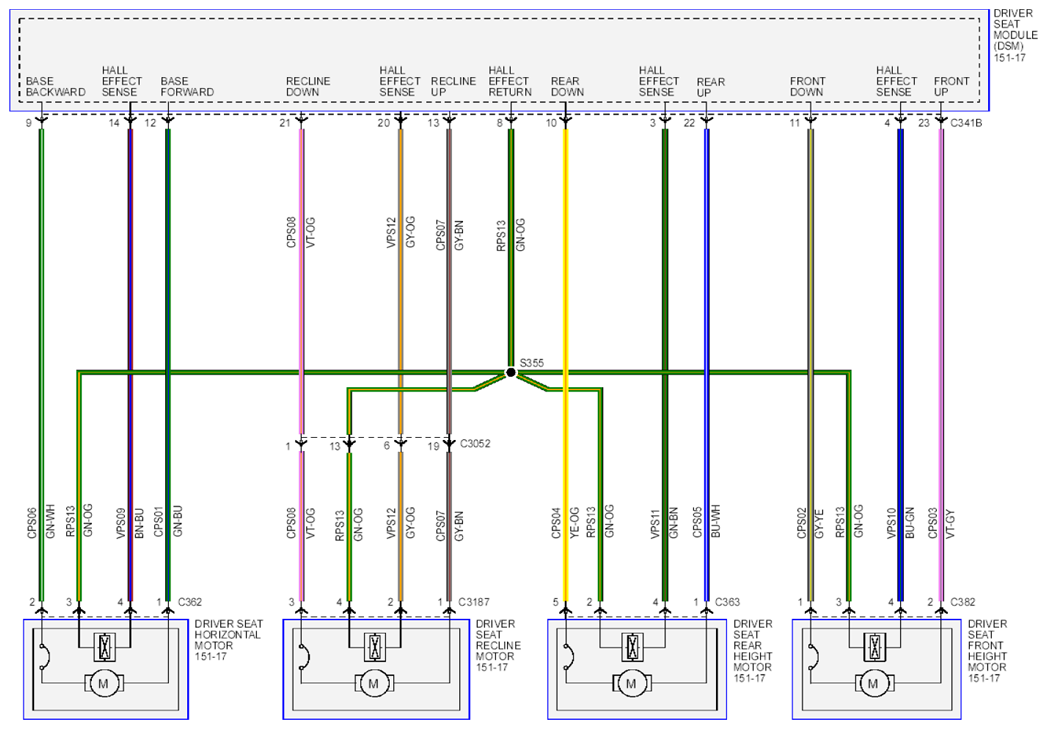

Fig 3: Memory Seats Circuit Diagram - 12-Way Driver (3 Of 4)

Courtesy of FORD MOTOR CO.

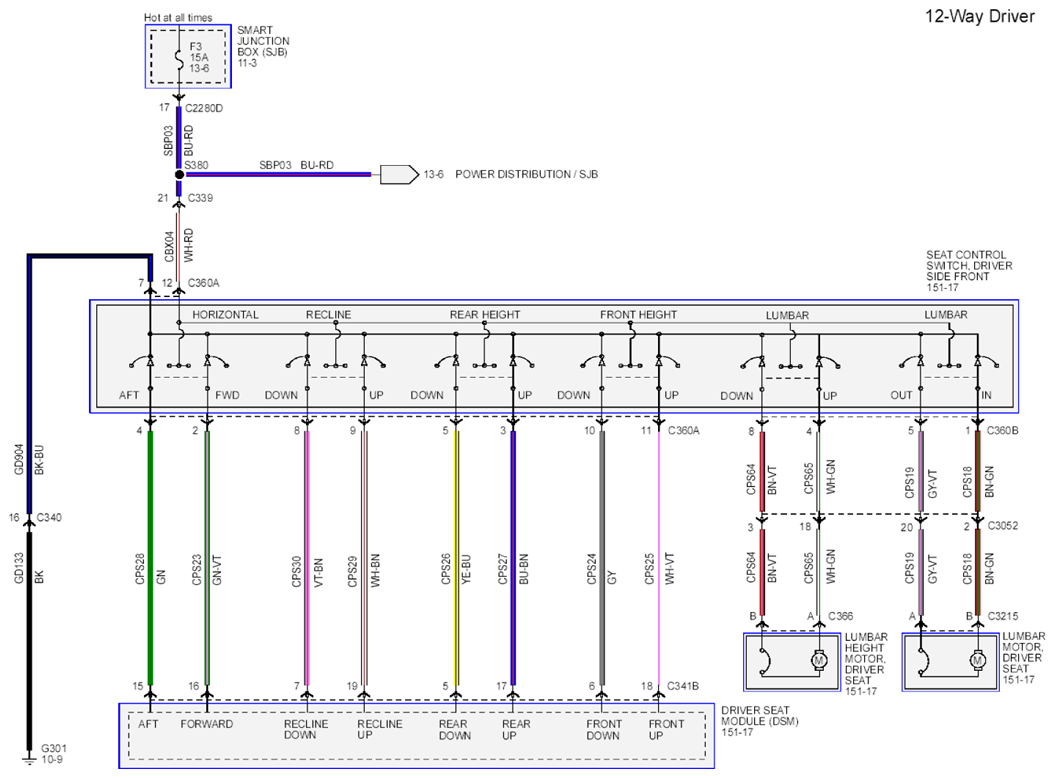

Fig 4: Memory Seats Circuit Diagram - 12-Way Driver (4 Of 4)

Courtesy of FORD MOTOR CO.
