Section 2725 (OEM Wiring Diagrams): Grounds: G300

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

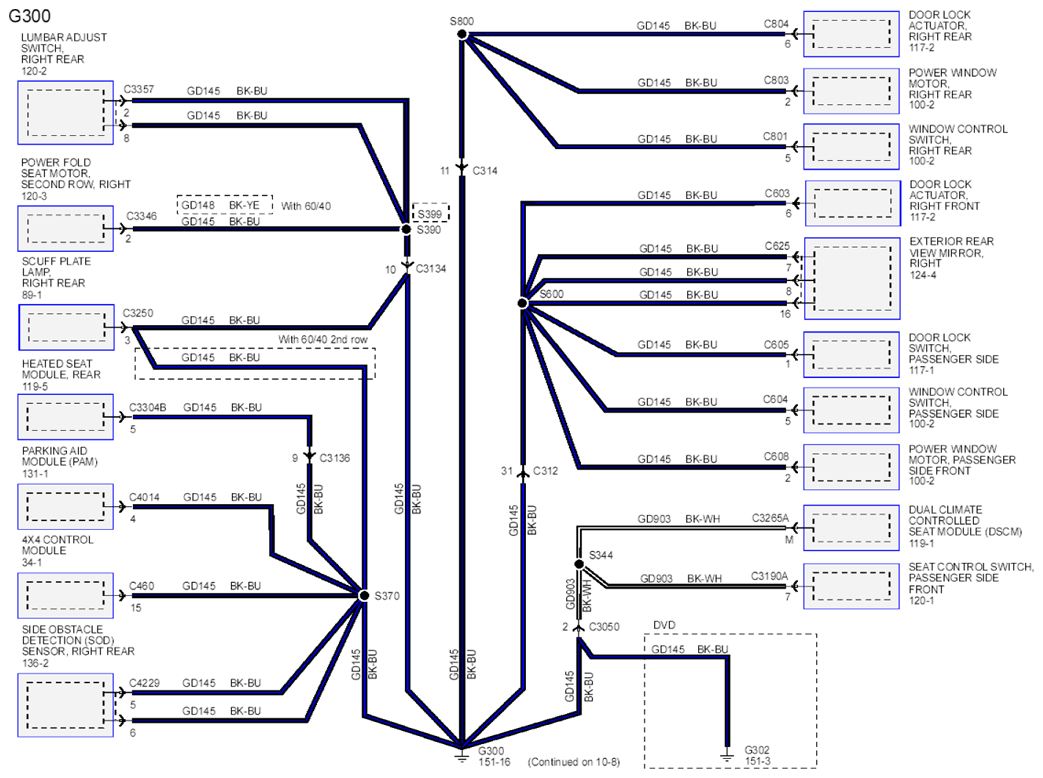

Fig 1: Ground Circuit Diagram - G300 (1 Of 2)

Courtesy of FORD MOTOR CO.

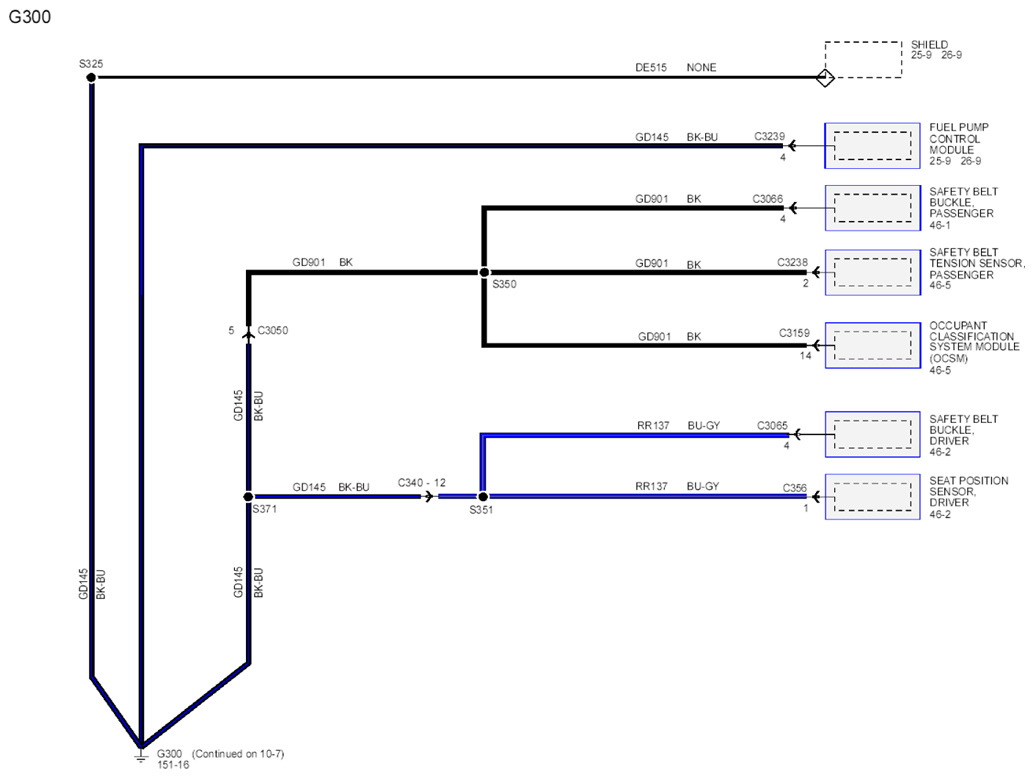

Fig 2: Ground Circuit Diagram - G300 (2 Of 2)

Courtesy of FORD MOTOR CO.
