WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

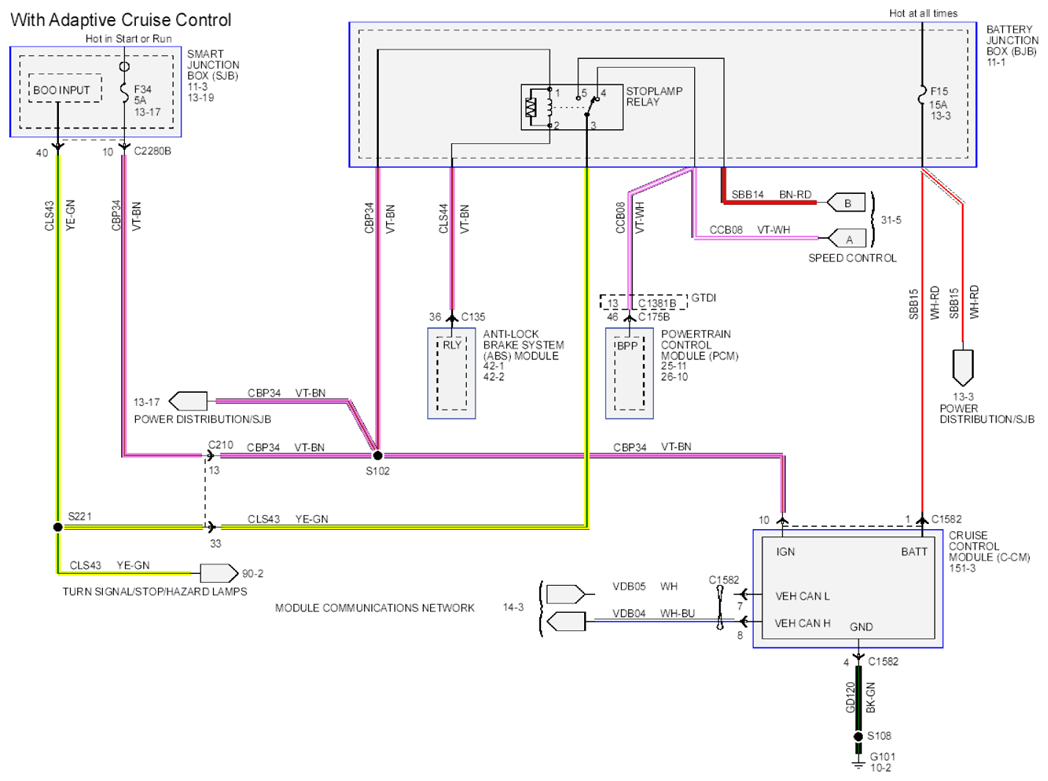

Fig 1: Cruise Control Circuit Diagram - With Adaptive Cruise Control (1 Of 2)
Courtesy of FORD MOTOR CO.

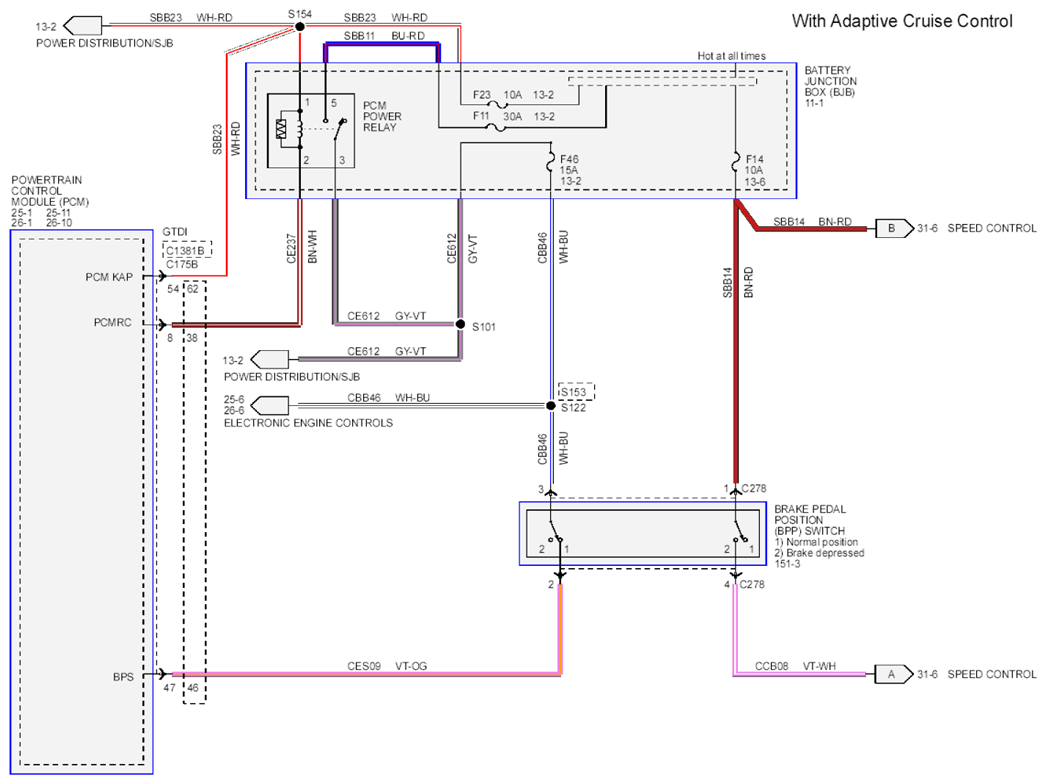

Fig 1: Cruise Control Circuit Diagram - With Adaptive Cruise Control (2 Of 2)
