Section 2725 (OEM Wiring Diagrams)
>>
Cruise Control
>>
W/O Adaptive Cruise Control
W/O Adaptive Cruise Control
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

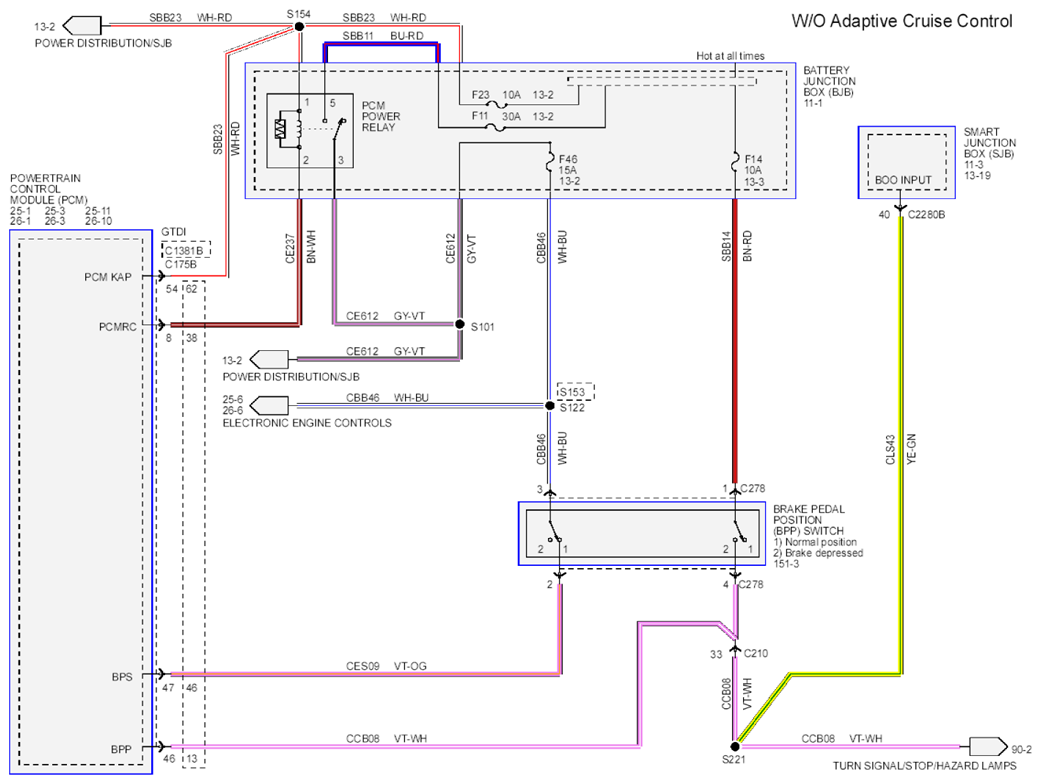

Fig 1: Cruise Control Circuit Diagram - W/O Adaptive Cruise Control
Courtesy of FORD MOTOR CO.
