2nd Row Heated/Cooled Seats

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

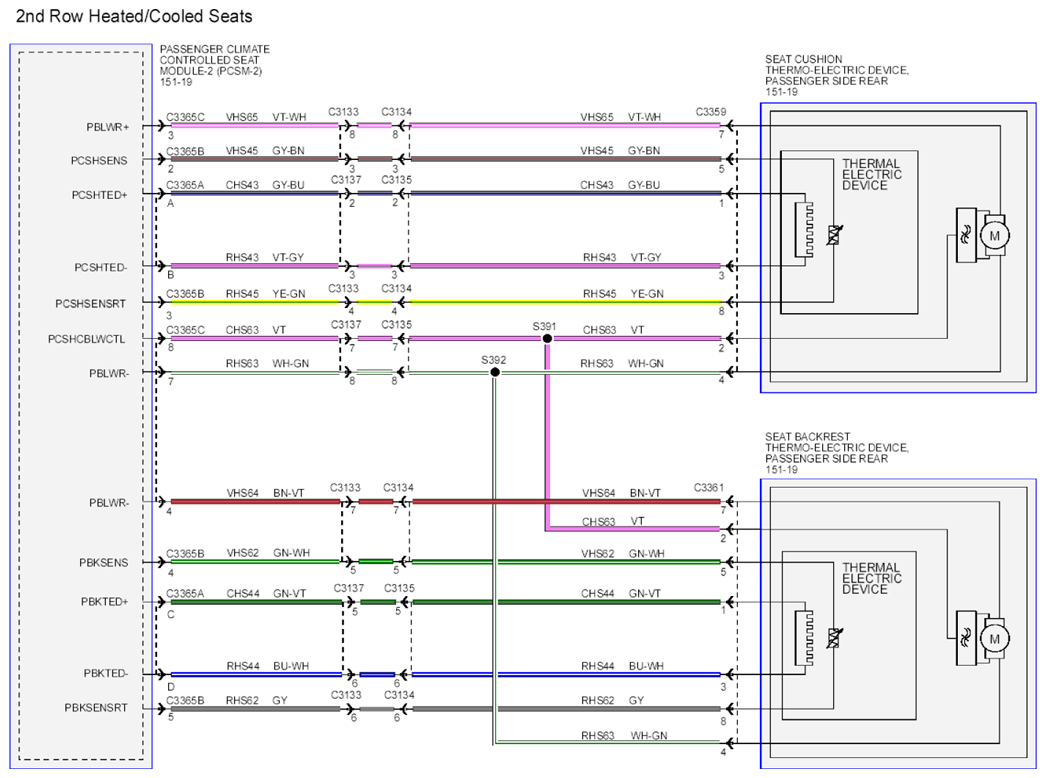

Fig 1: Climate Controlled Seats Circuit Diagram - 2nd Row Heated/Cooled Seats (1 Of 3)

Courtesy of FORD MOTOR CO.

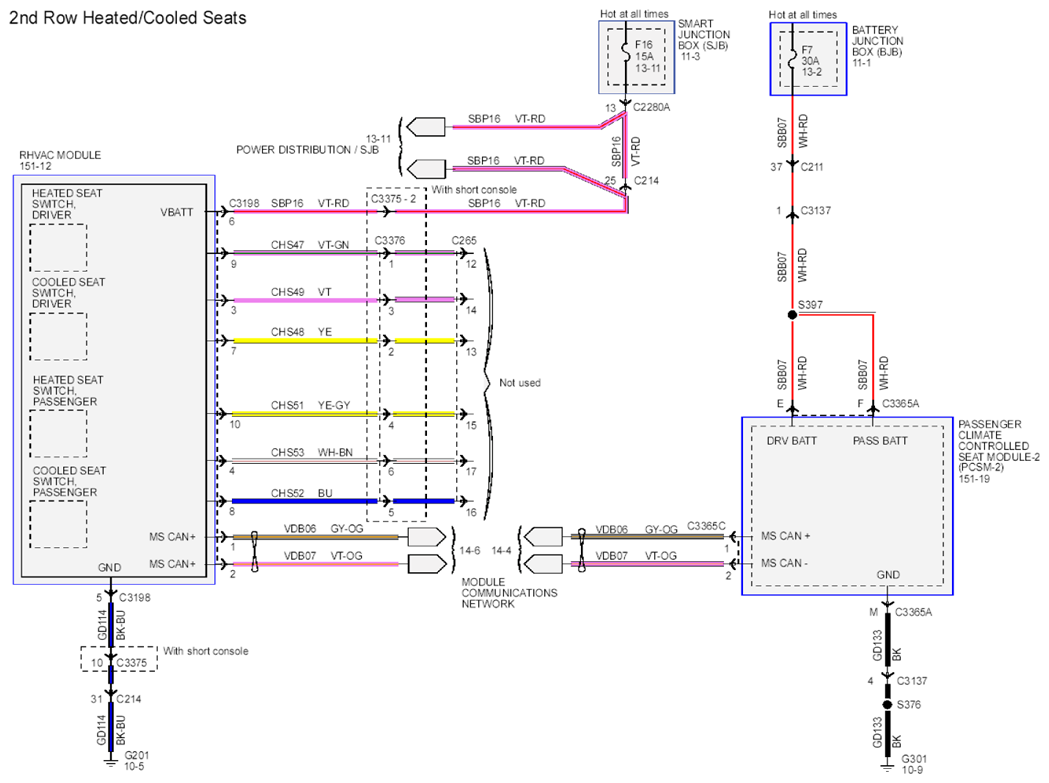

Fig 2: Climate Controlled Seats Circuit Diagram - 2nd Row Heated/Cooled Seats (2 Of 3)

Courtesy of FORD MOTOR CO.

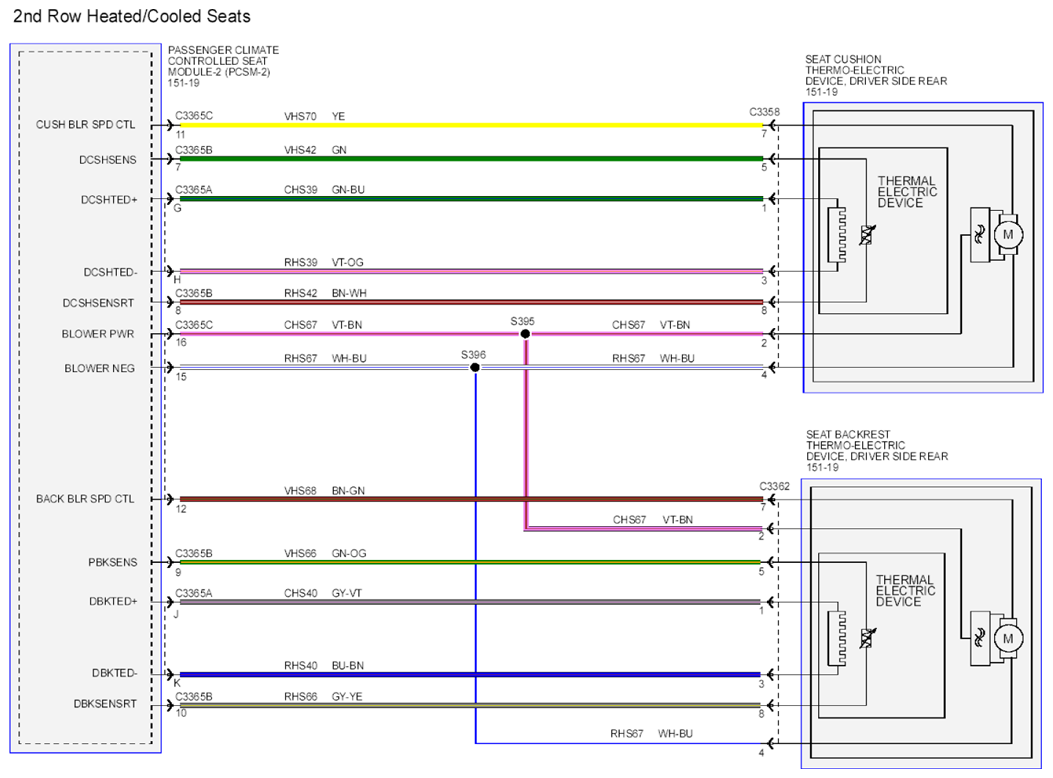

Fig 3: Climate Controlled Seats Circuit Diagram - 2nd Row Heated/Cooled Seats (3 Of 3)

Courtesy of FORD MOTOR CO.
