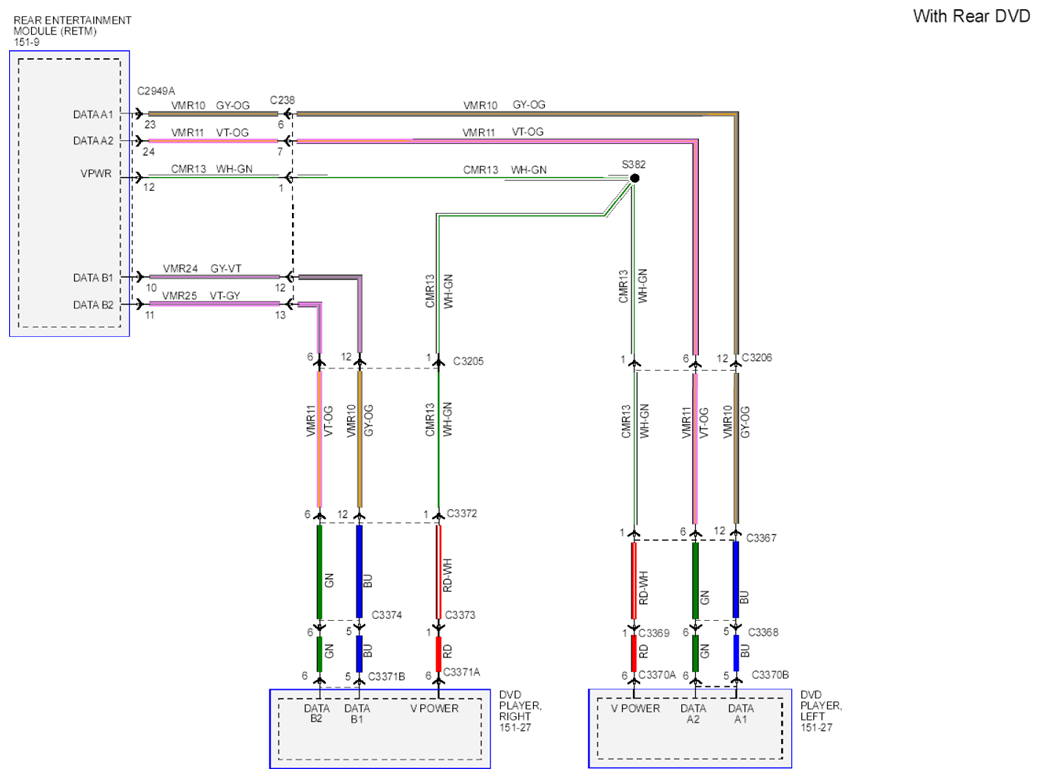

Fig 1: Audio System And Navigation Circuit Diagram - With Rear DVD (1 Of 6)
Courtesy of FORD MOTOR CO.

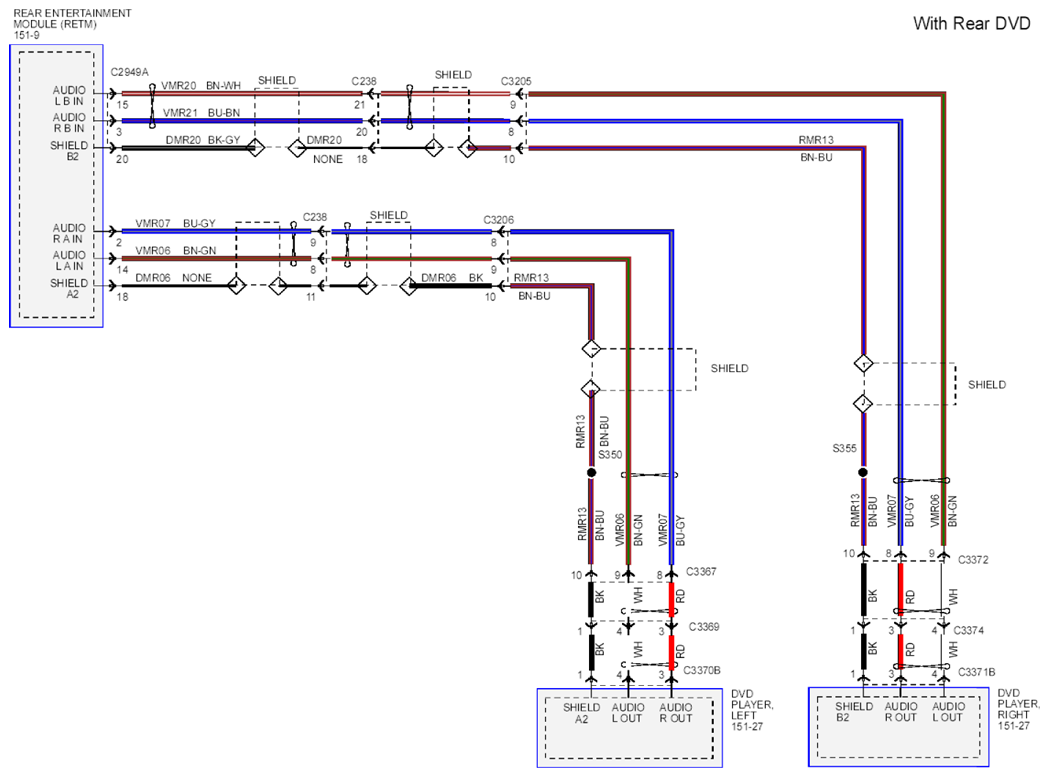

Fig 2: Audio System And Navigation Circuit Diagram - With Rear DVD (2 Of 6)
Courtesy of FORD MOTOR CO.

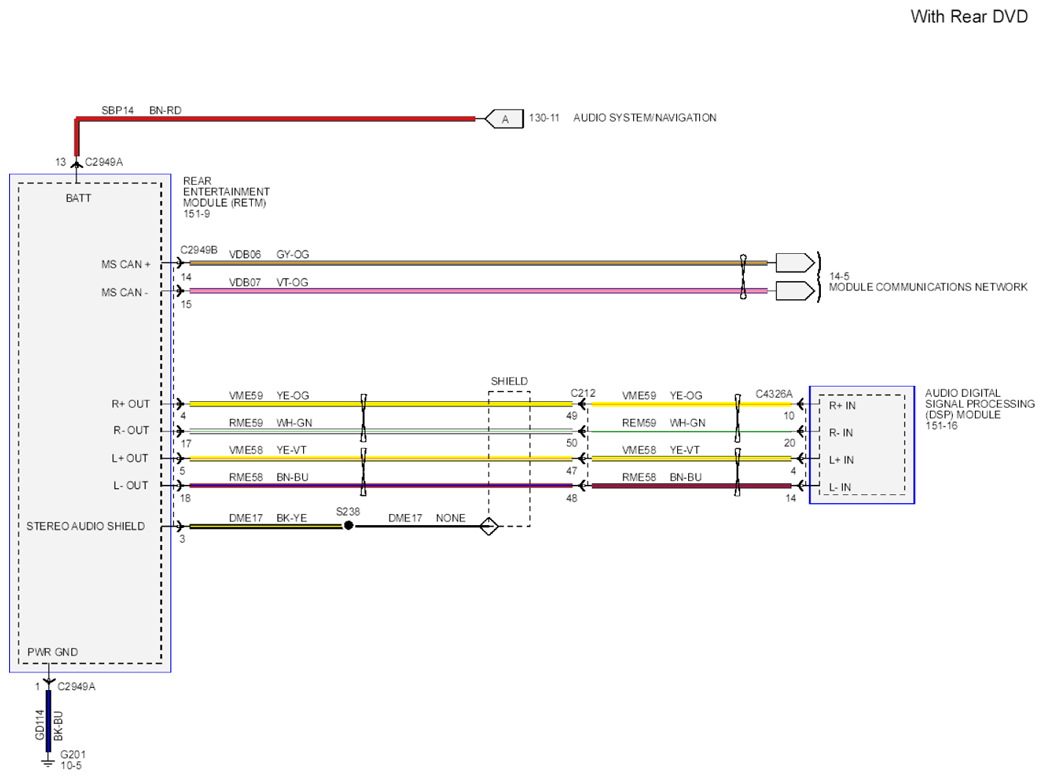

Fig 3: Audio System And Navigation Circuit Diagram - With Rear DVD (3 Of 6)
Courtesy of FORD MOTOR CO.

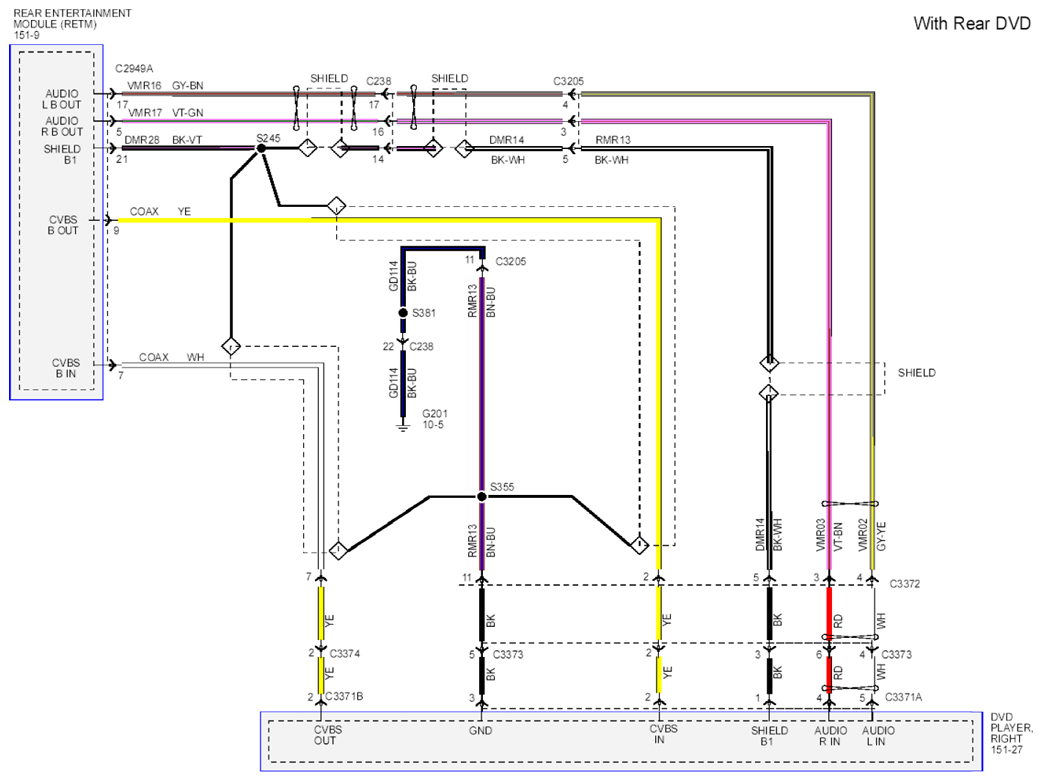

Fig 4: Audio System And Navigation Circuit Diagram - With Rear DVD (4 Of 6)
Courtesy of FORD MOTOR CO.

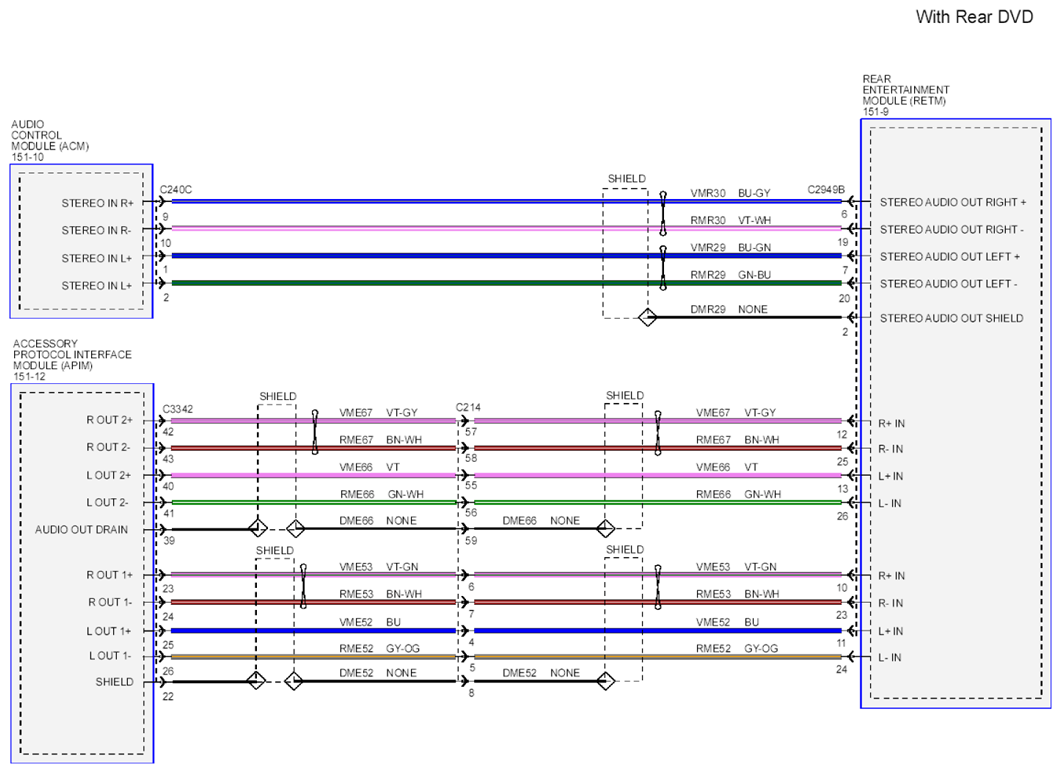

Fig 5: Audio System And Navigation Circuit Diagram - With Rear DVD (5 Of 6)
Courtesy of FORD MOTOR CO.

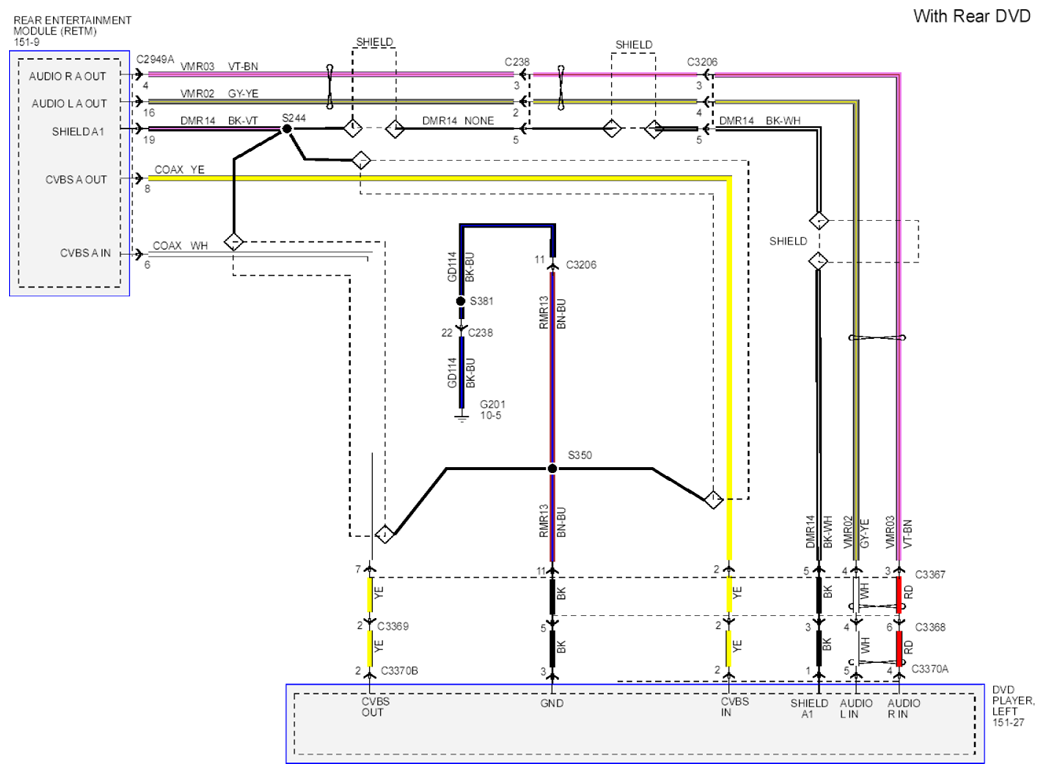

Fig 6: Audio System And Navigation Circuit Diagram - With Rear DVD (6 Of 6)
