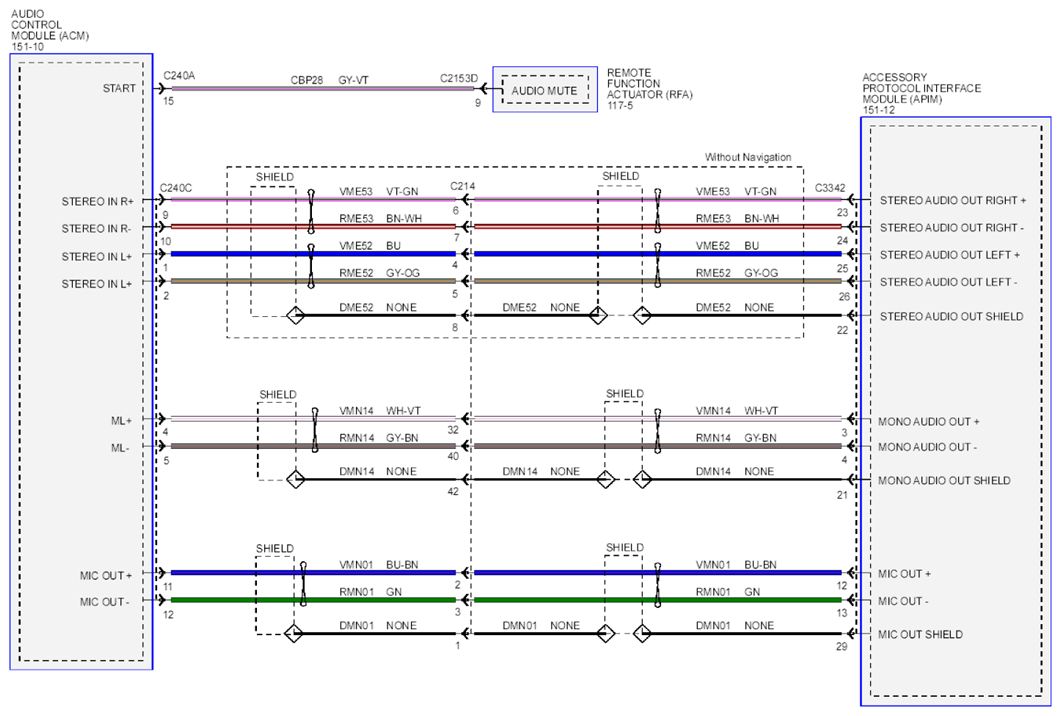

Fig 1: Audio System And Navigation Circuit Diagram - Navigation (1 Of 8)
Courtesy of FORD MOTOR CO.

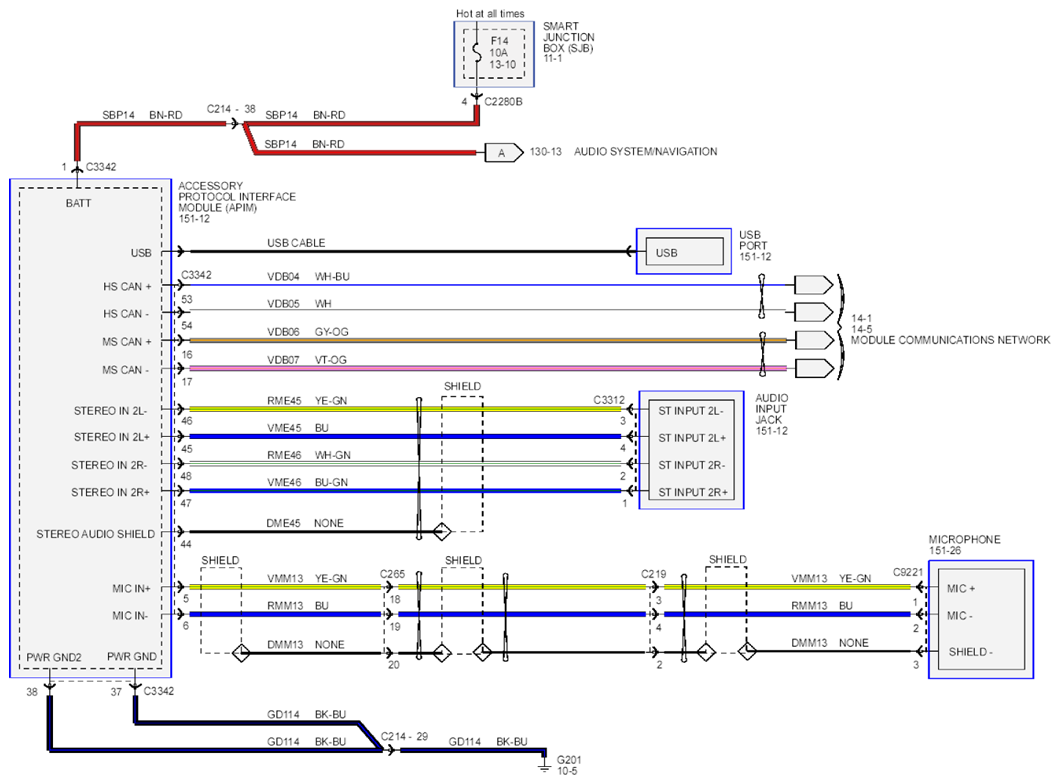

Fig 2: Audio System And Navigation Circuit Diagram - Navigation (2 Of 8)
Courtesy of FORD MOTOR CO.

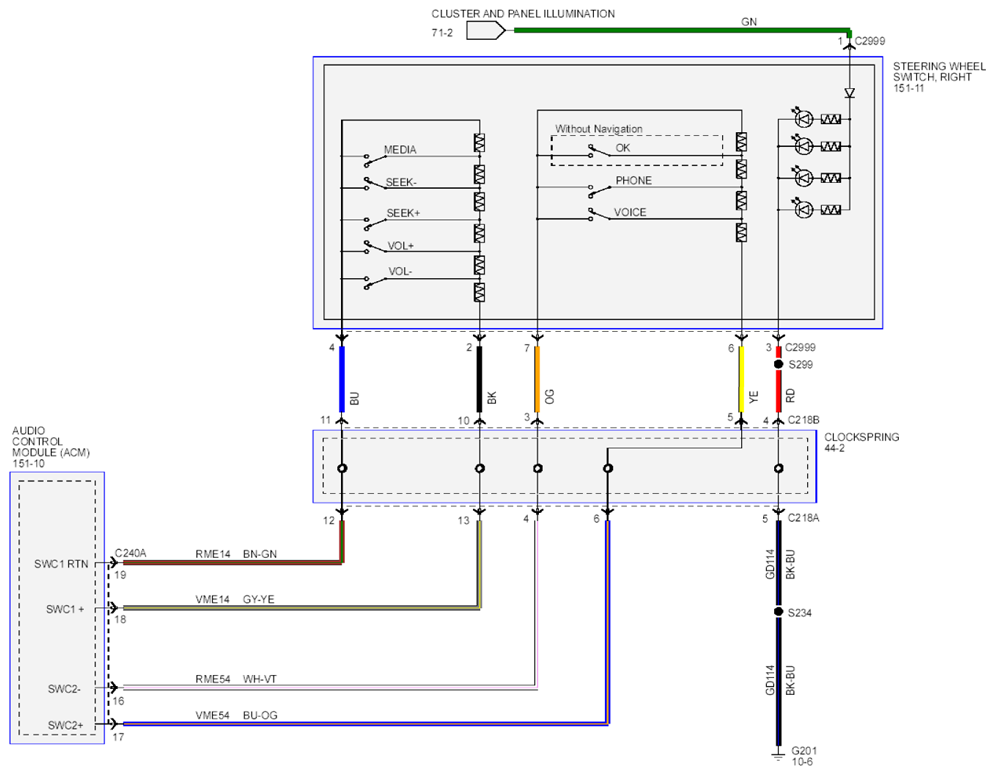

Fig 3: Audio System And Navigation Circuit Diagram - Navigation (3 Of 8)
Courtesy of FORD MOTOR CO.

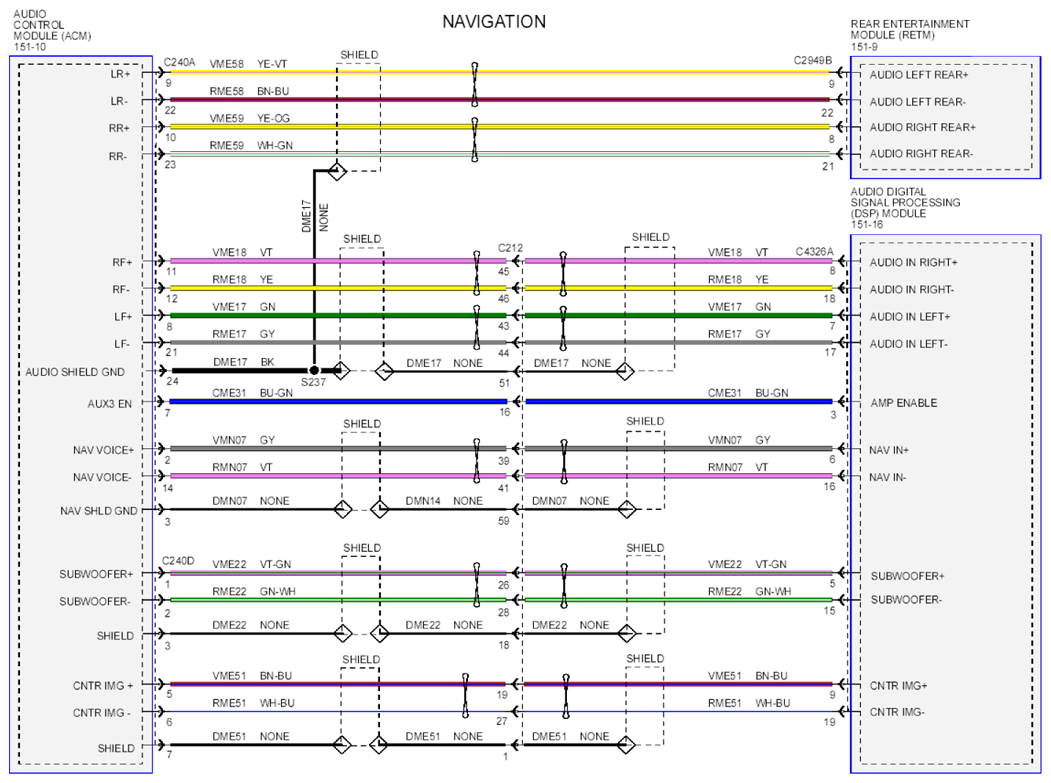

Fig 4: Audio System And Navigation Circuit Diagram - Navigation (4 Of 8)
Courtesy of FORD MOTOR CO.

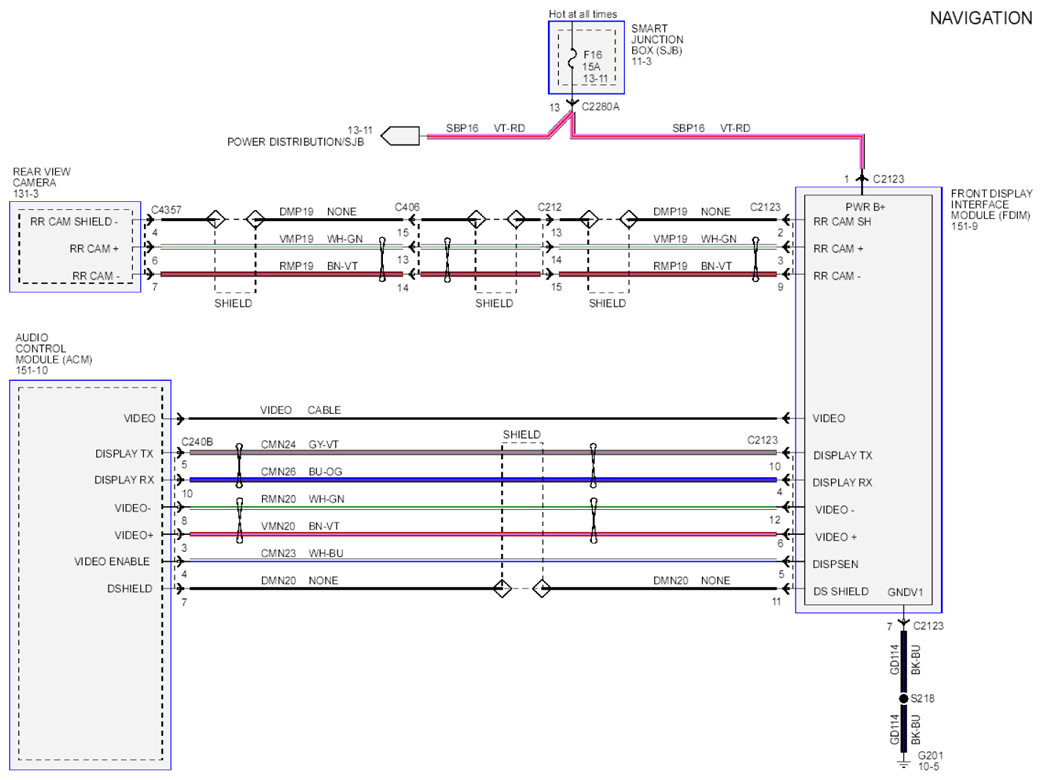

Fig 5: Audio System And Navigation Circuit Diagram - Navigation (5 Of 8)
Courtesy of FORD MOTOR CO.

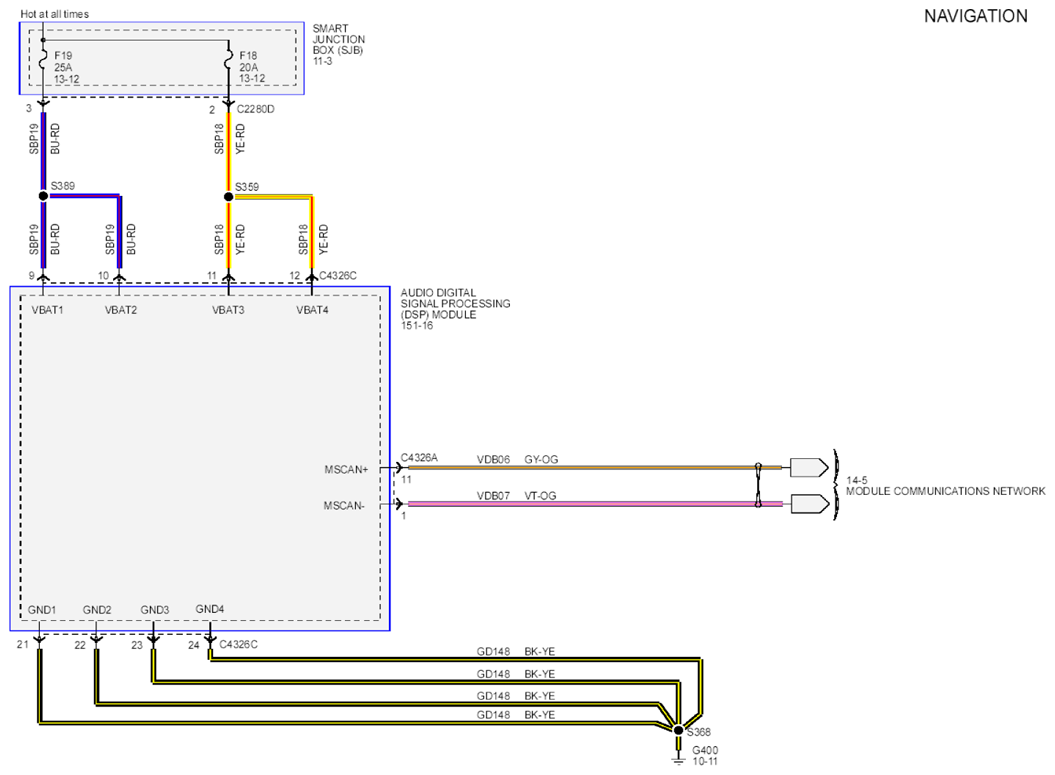

Fig 6: Audio System And Navigation Circuit Diagram - Navigation (6 Of 8)
Courtesy of FORD MOTOR CO.

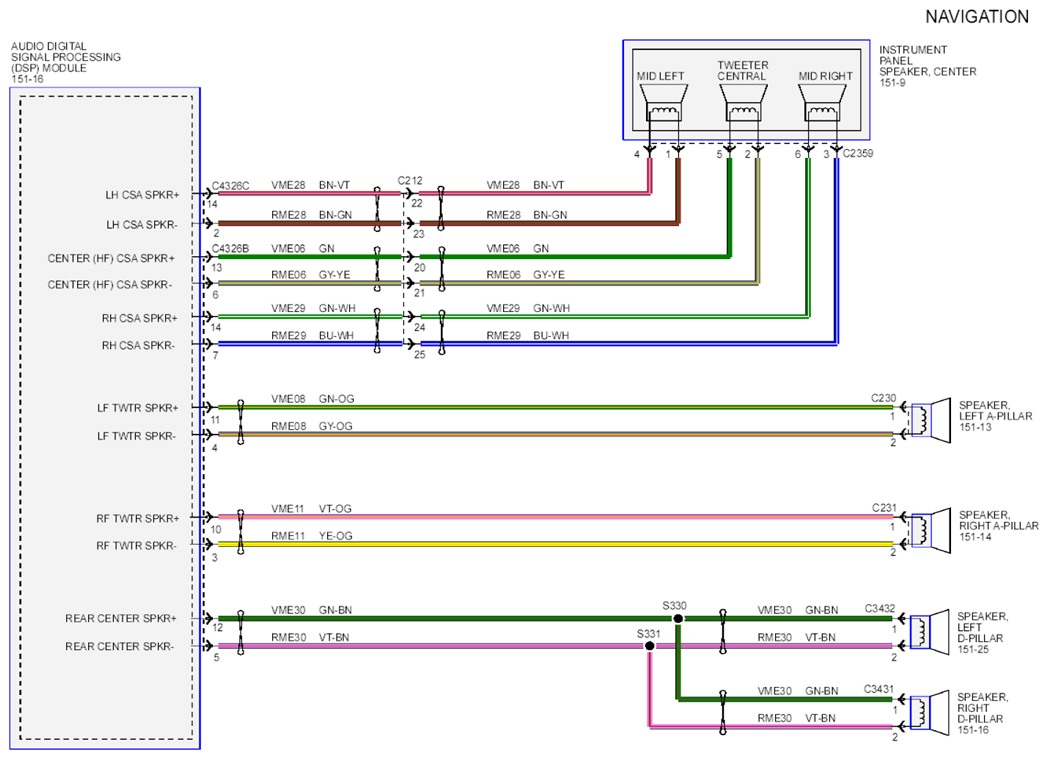

Fig 7: Audio System And Navigation Circuit Diagram - Navigation (7 Of 8)
Courtesy of FORD MOTOR CO.

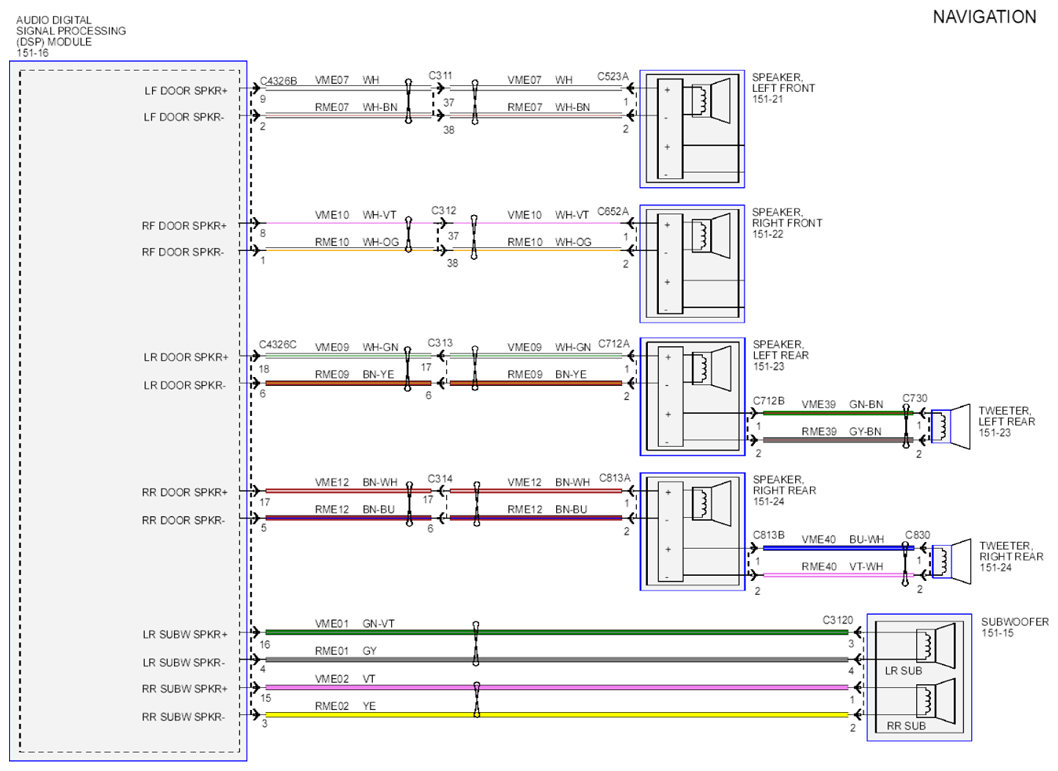

Fig 8: Audio System And Navigation Circuit Diagram - Navigation (8 Of 8)
