Adjustable Pedal

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

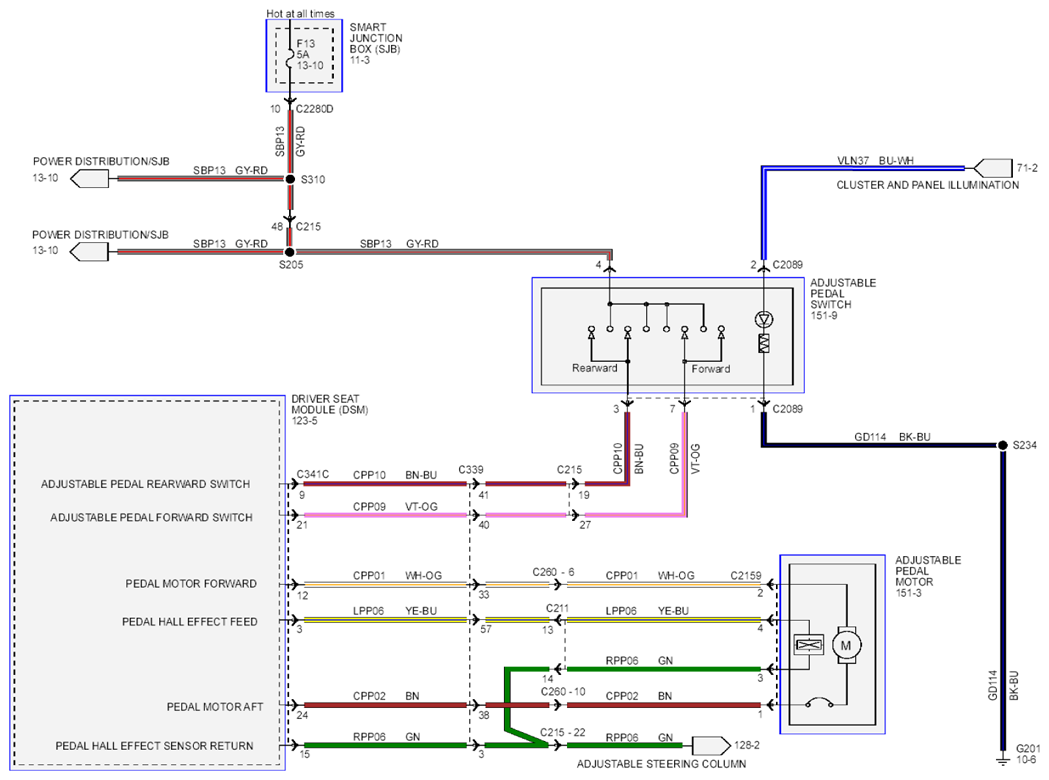

Fig 1: Adjustable Pedal Circuit Diagram
G07880512Courtesy of FORD MOTOR CO.
