WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

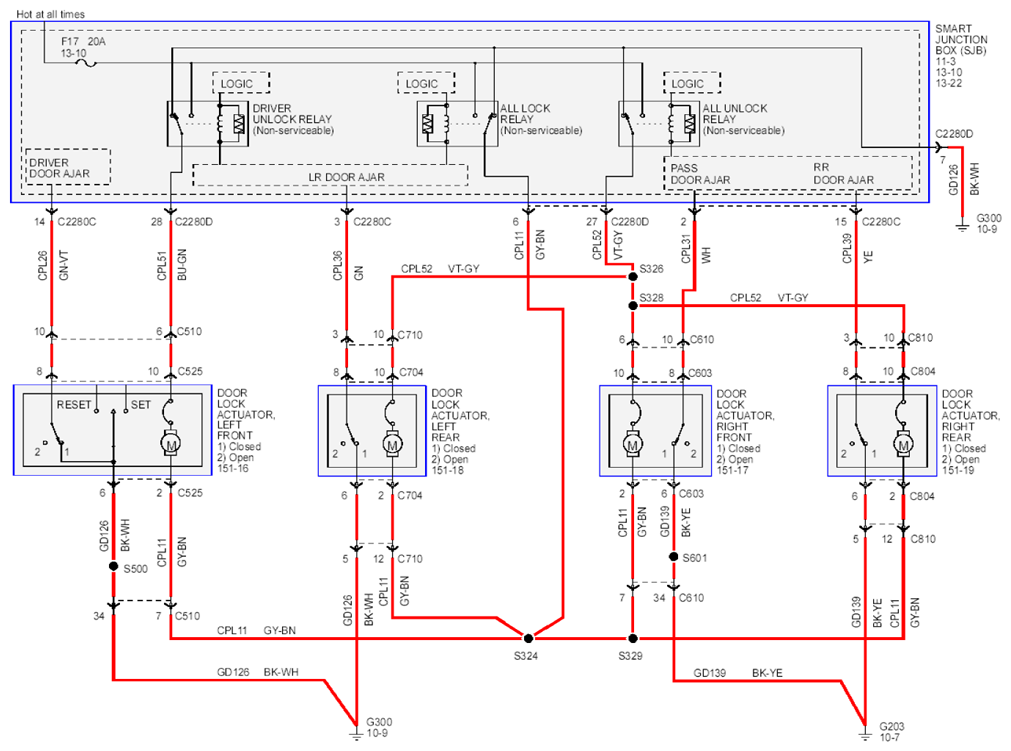

Fig 1: Power Door Locks Circuit Diagram (Fusion / Milan)
Courtesy of FORD MOTOR CO.

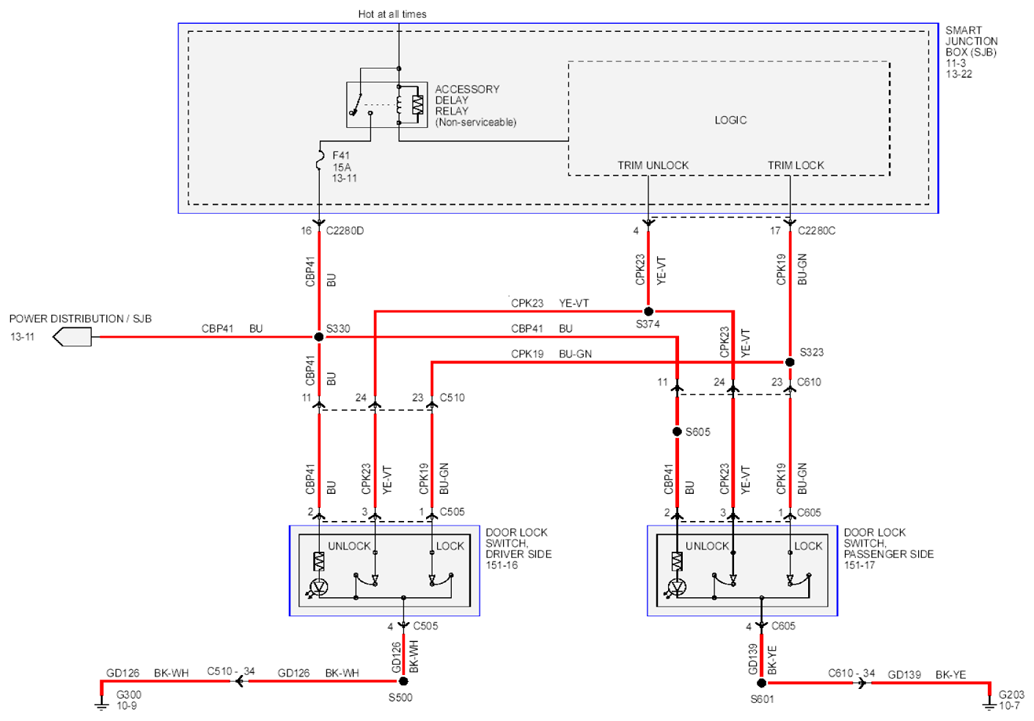

Fig 2: Power Door Locks Circuit Diagram (Fusion / Milan)
