WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

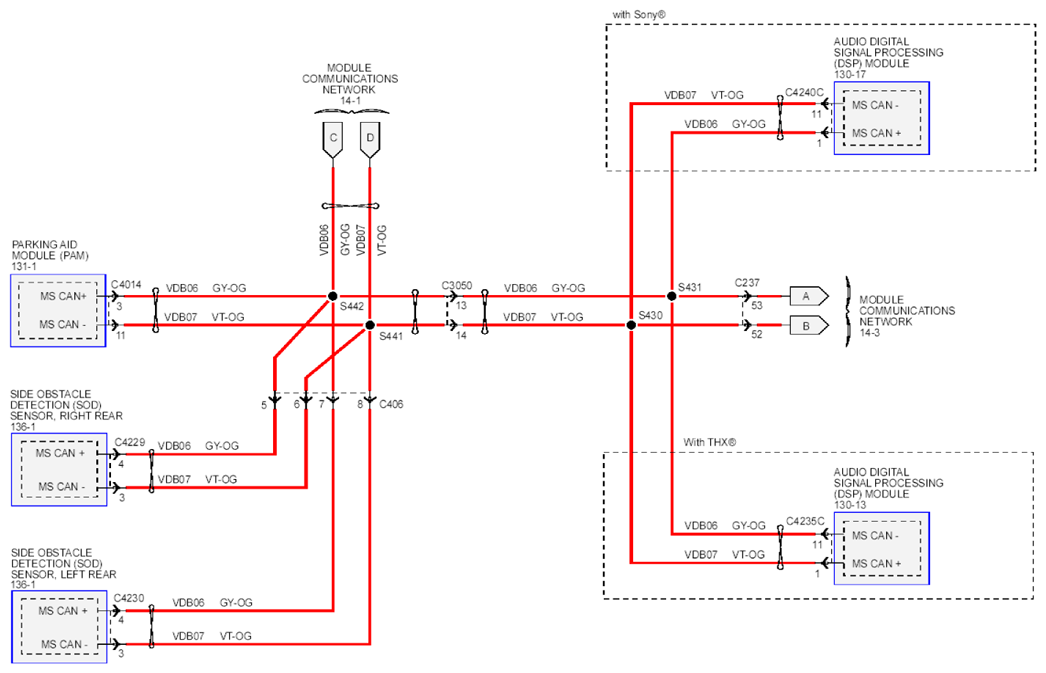

Fig 1: Module Communications Network Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

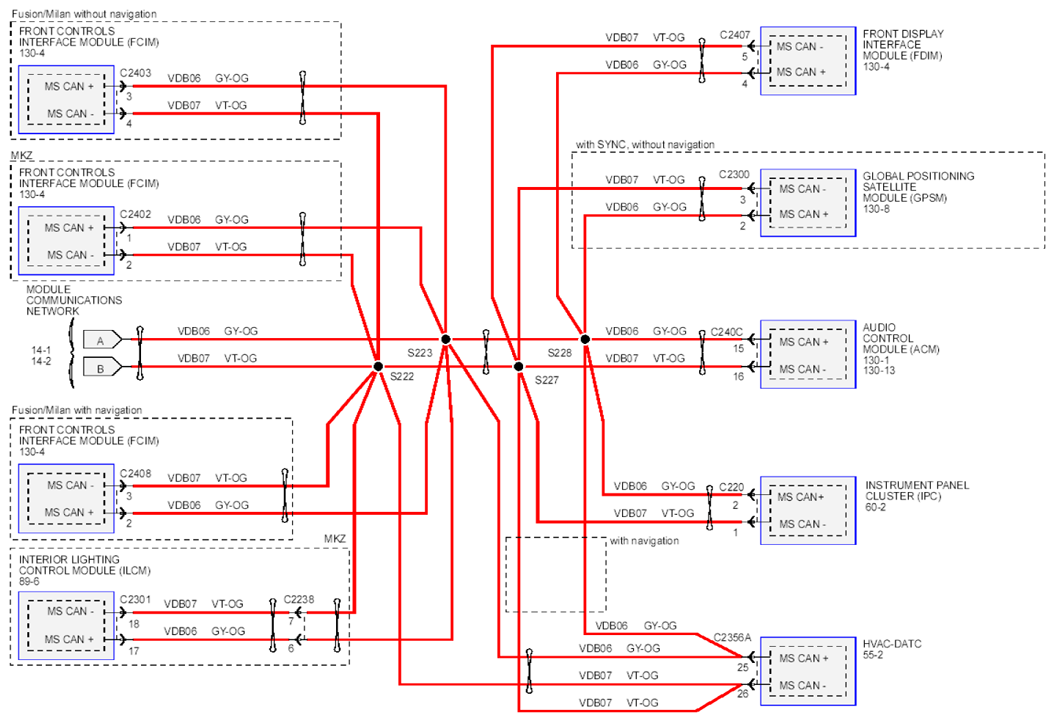

Fig 2: Module Communications Network Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

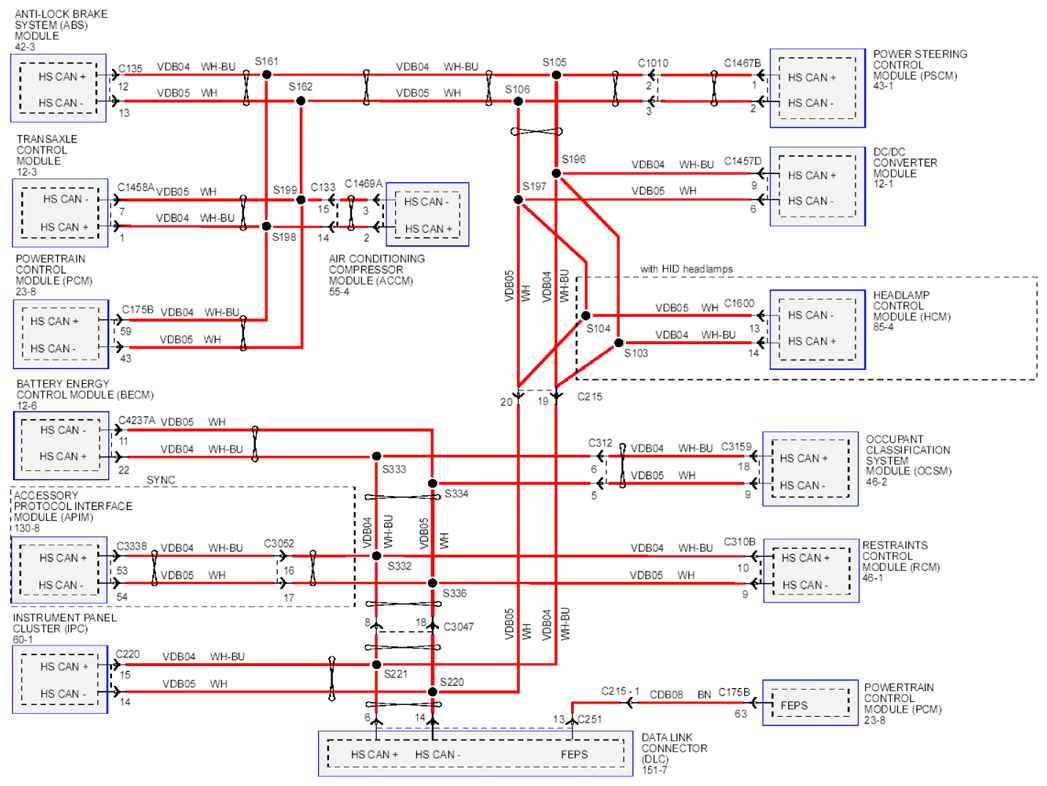

Fig 3: Module Communications Network Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

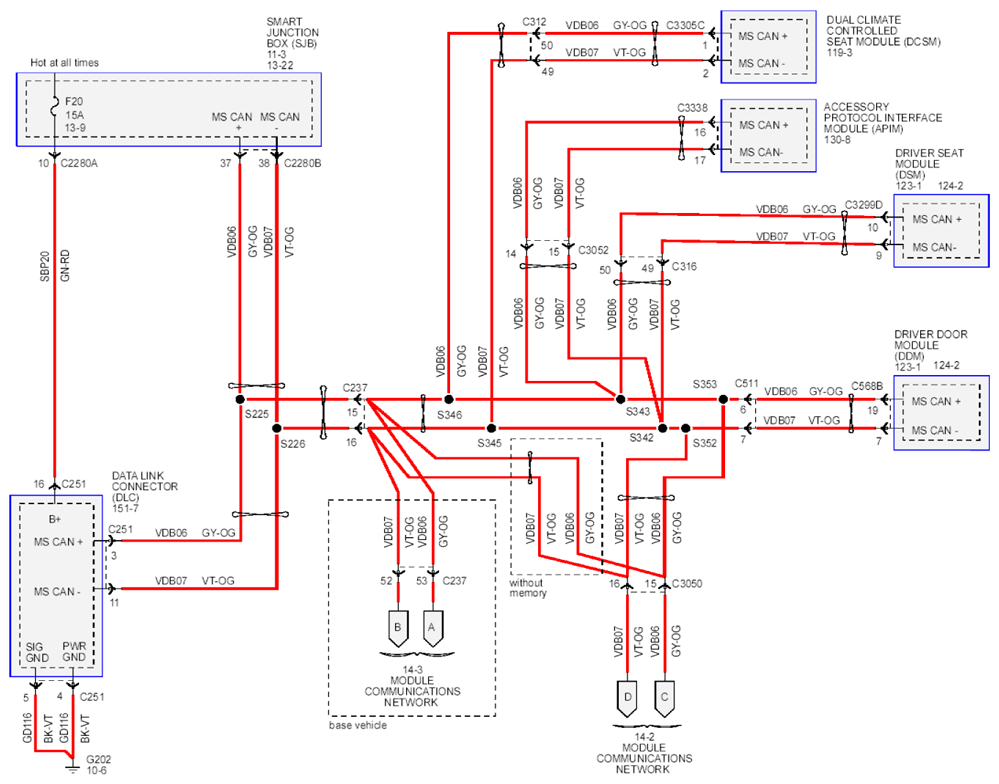

Fig 4: Module Communications Network Circuit Diagram (4 Of 4)
