WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Turn Signal Stop Hazard Lamps Circuit Diagram (Fusion)
Courtesy of FORD MOTOR CO.

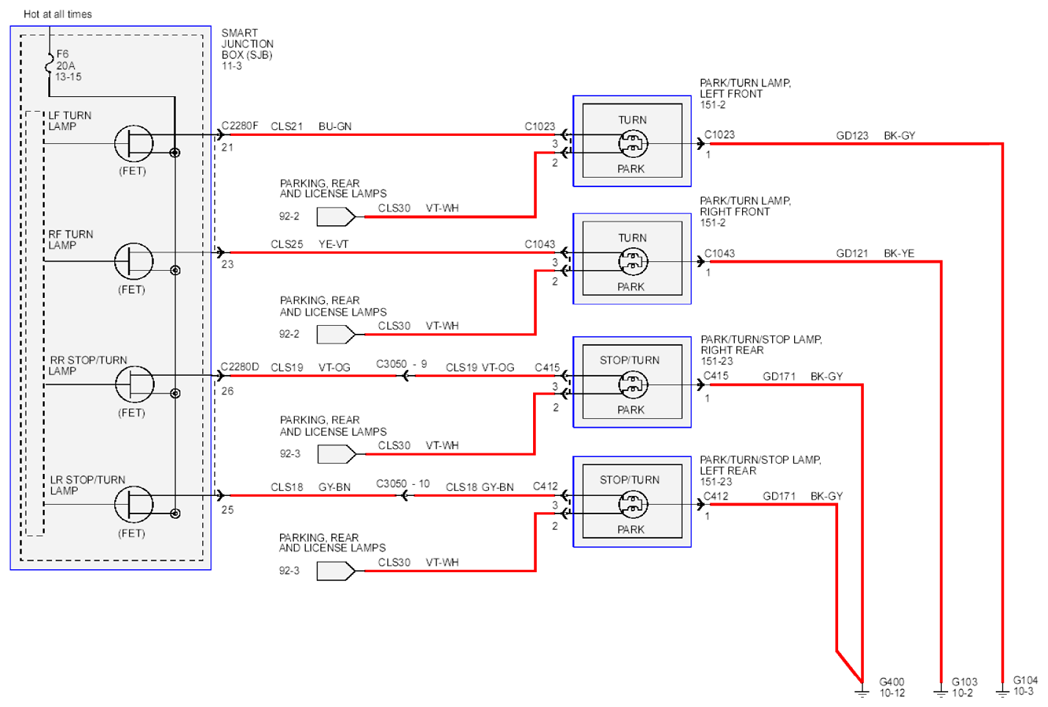

Fig 2: Turn Signal Stop Hazard Lamps Circuit Diagram (Fusion)
