Section 2724 (OEM Wiring Diagrams (Hybrid)): Grounds: G103

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

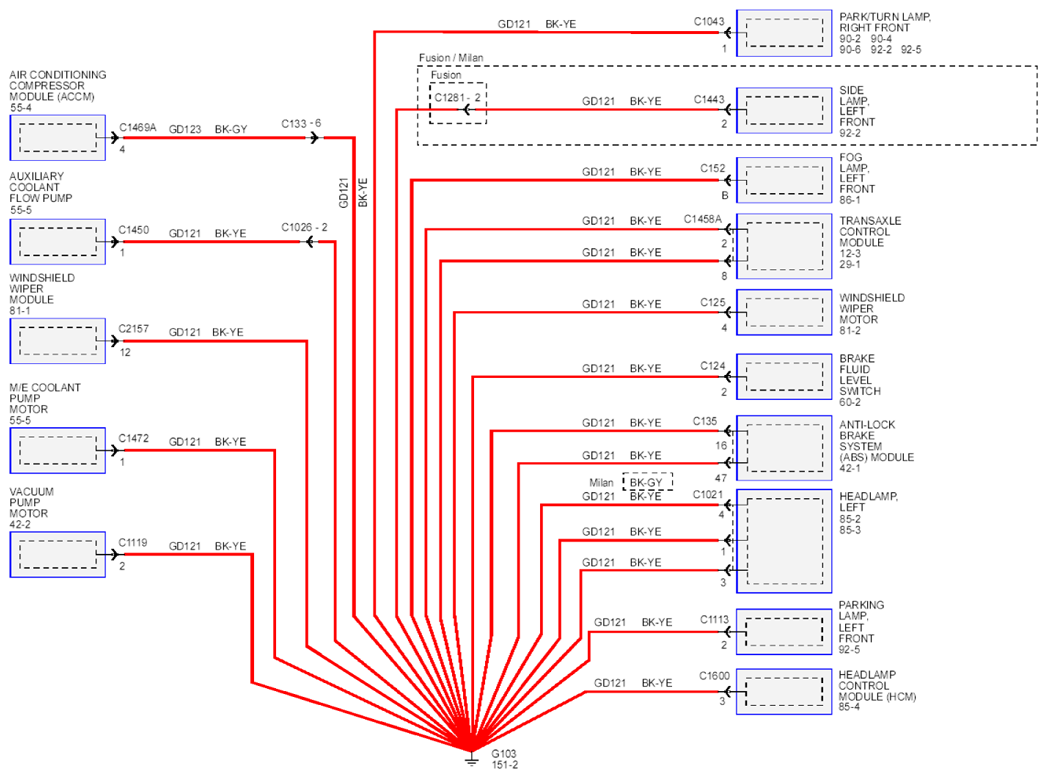

Fig 1: Grounds Circuit Diagram (G103)

Courtesy of FORD MOTOR CO.
