Cruise Control

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

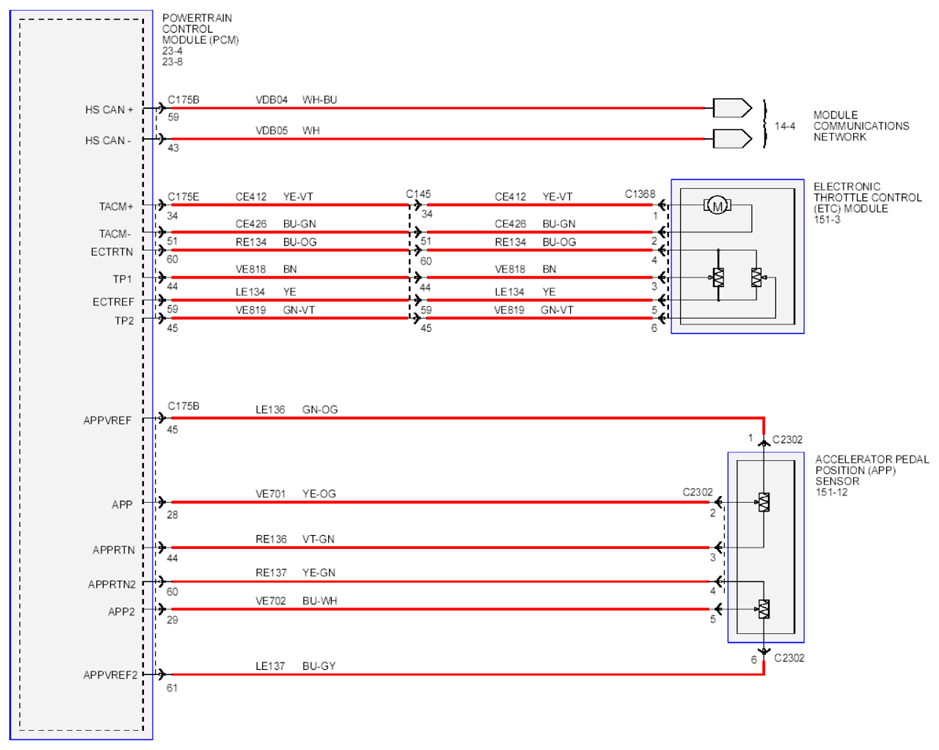

Fig 1: Cruise Control Circuit Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

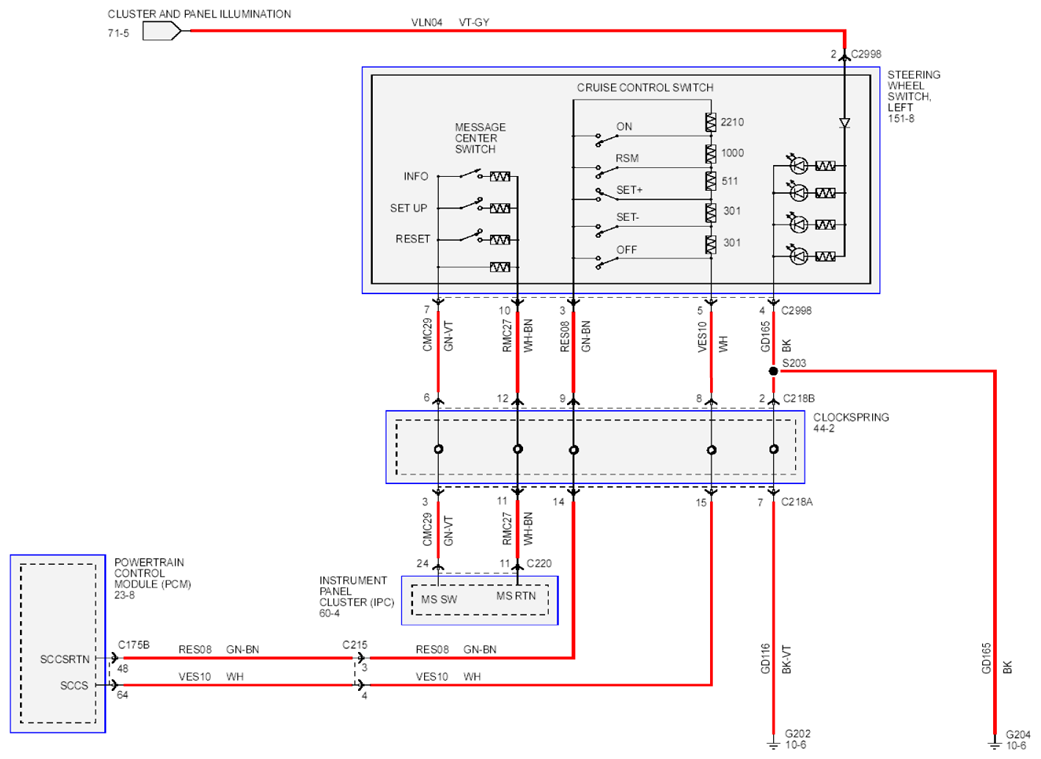

Fig 2: Cruise Control Circuit Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

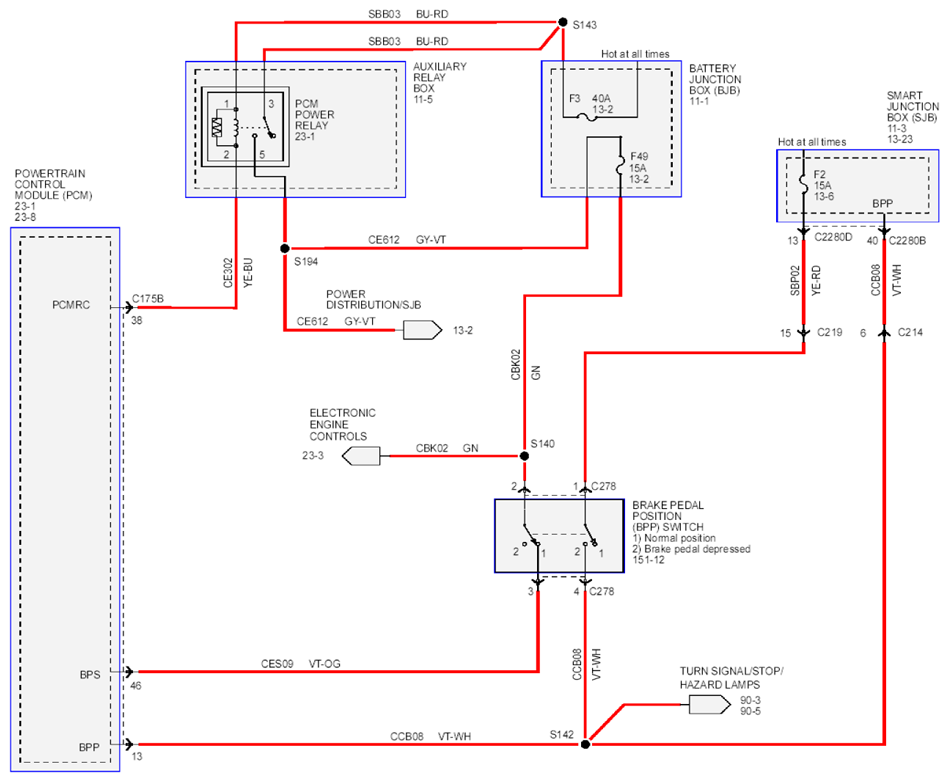

Fig 3: Cruise Control Circuit Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
