Charging System: Fusion/MILAN

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

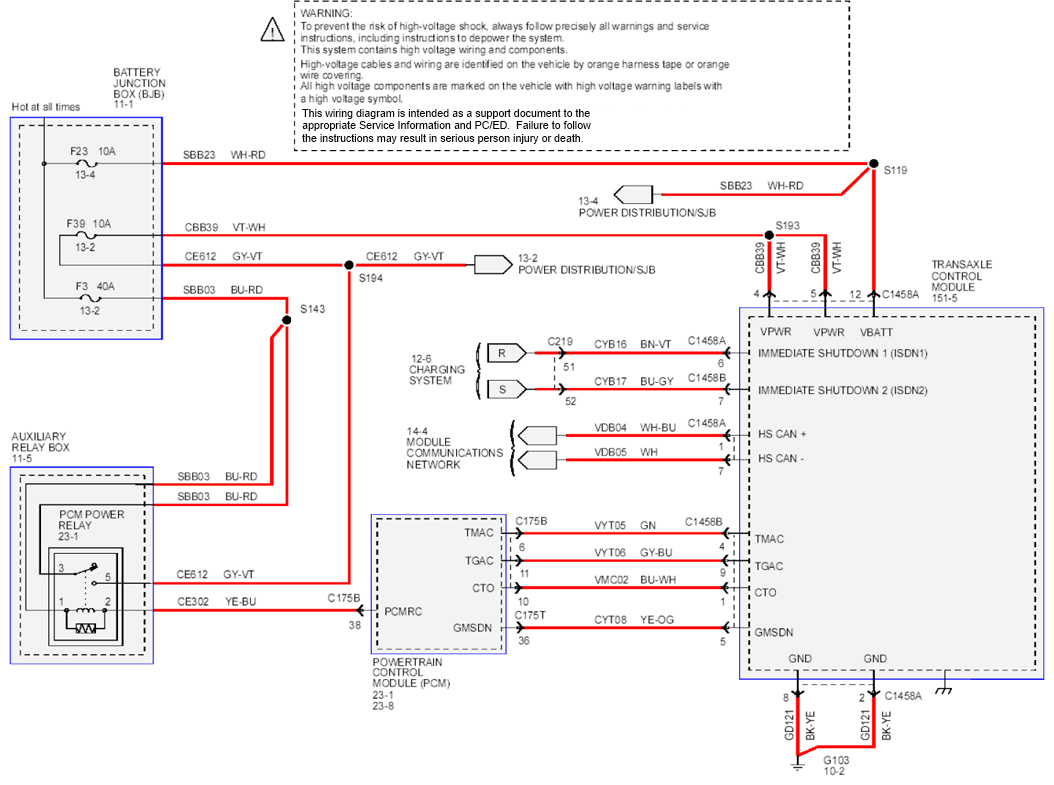

Fig 1: Charging System Circuit Diagram (2 Of 8) (Fusion/Milan)

Courtesy of FORD MOTOR CO.

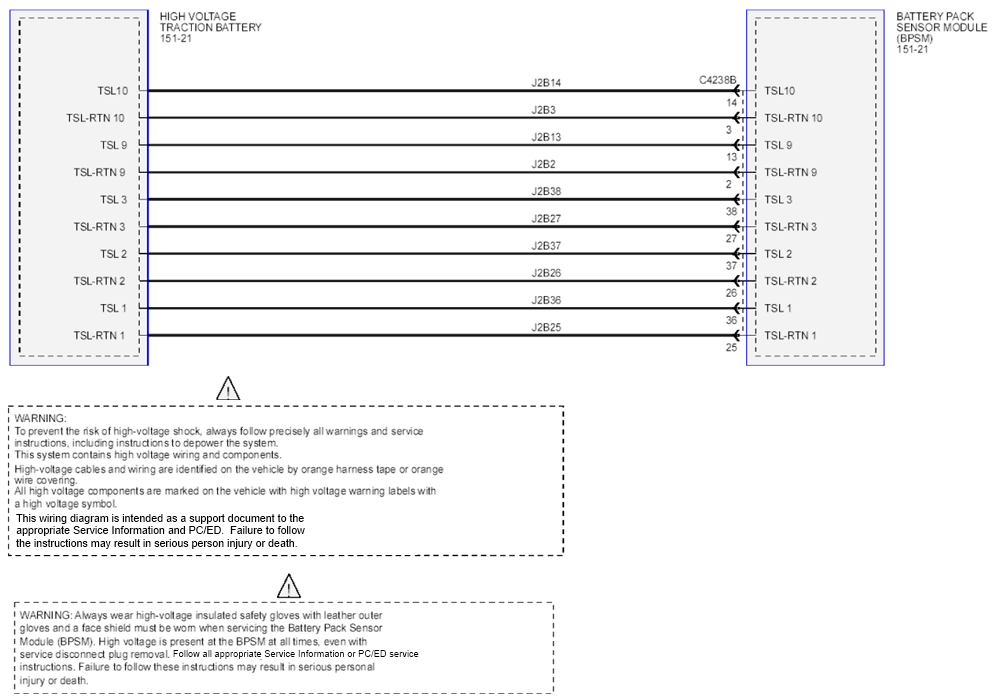

Fig 2: Charging System Circuit Diagram (3 Of 8)

Courtesy of FORD MOTOR CO.

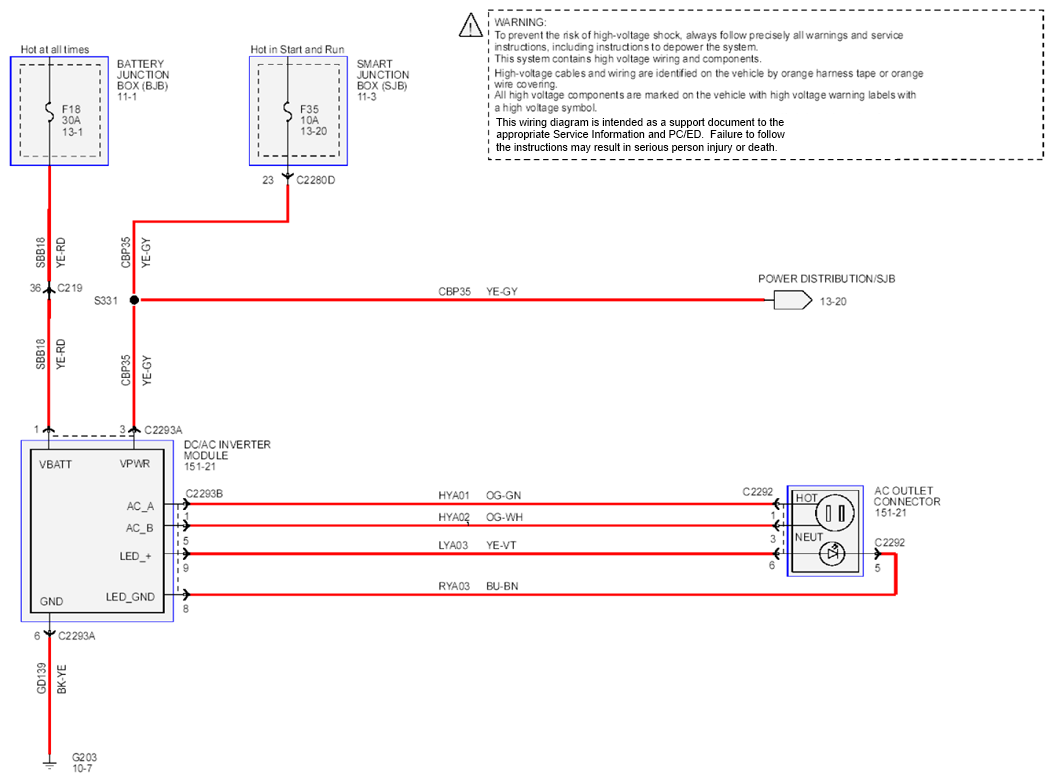

Fig 3: Charging System Circuit Diagram (4 Of 8)

Courtesy of FORD MOTOR CO.

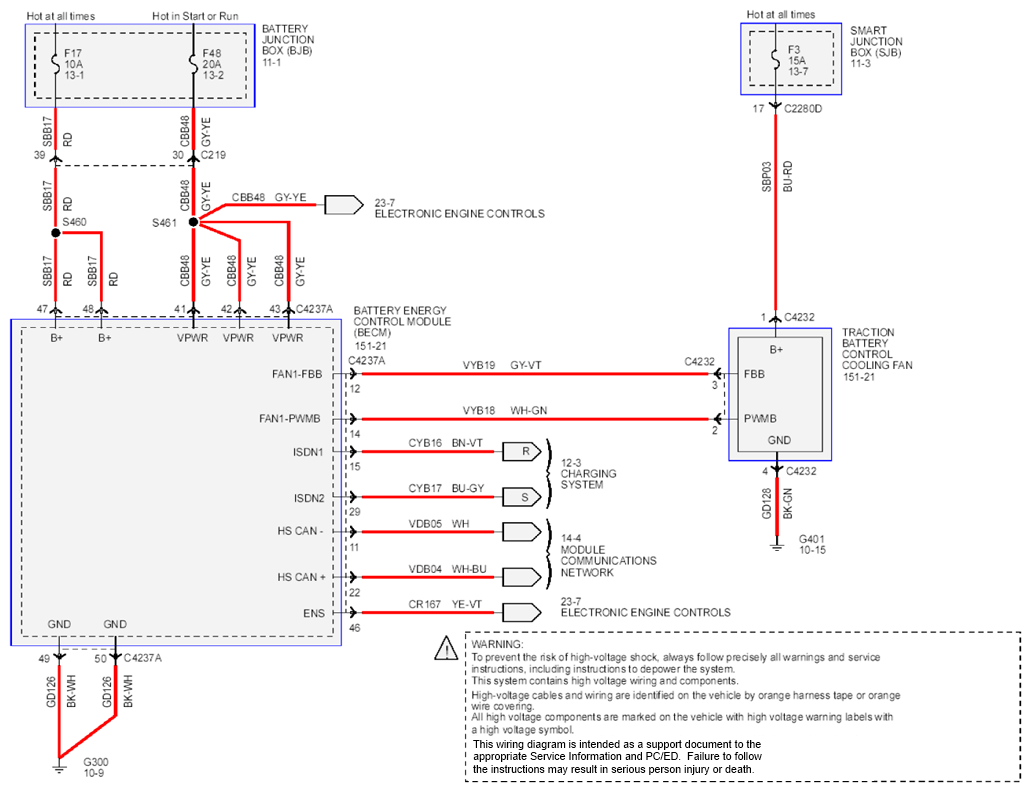

Fig 4: Charging System Circuit Diagram (5 Of 8)

Courtesy of FORD MOTOR CO.

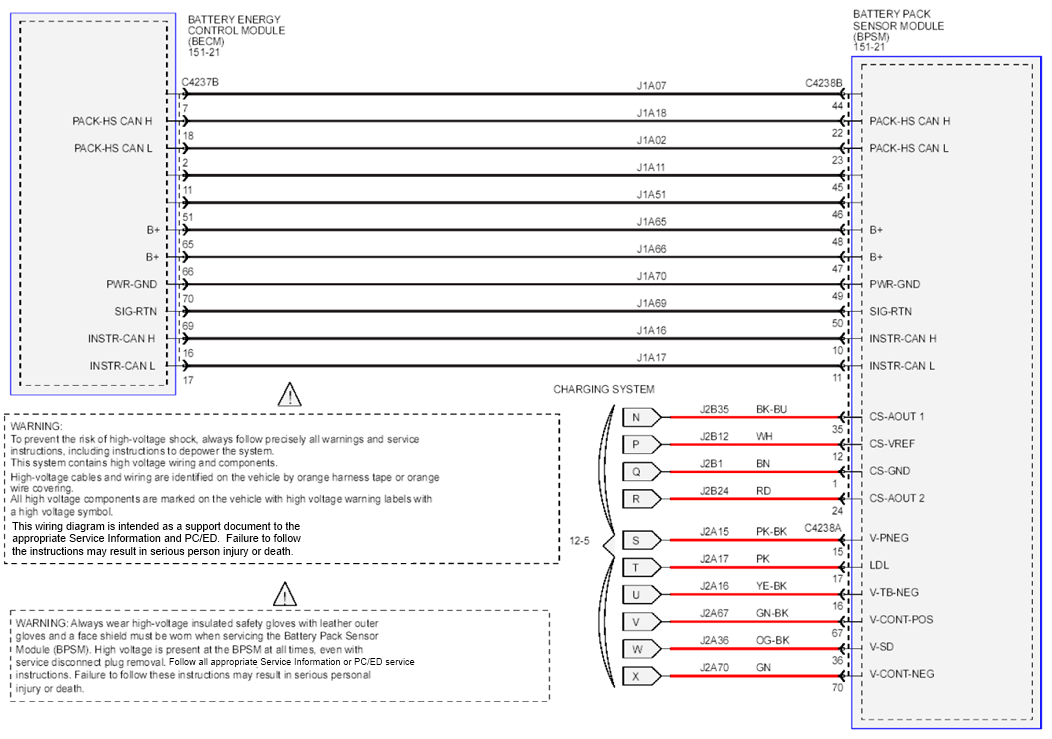

Fig 5: Charging System Circuit Diagram (6 Of 8)

Courtesy of FORD MOTOR CO.

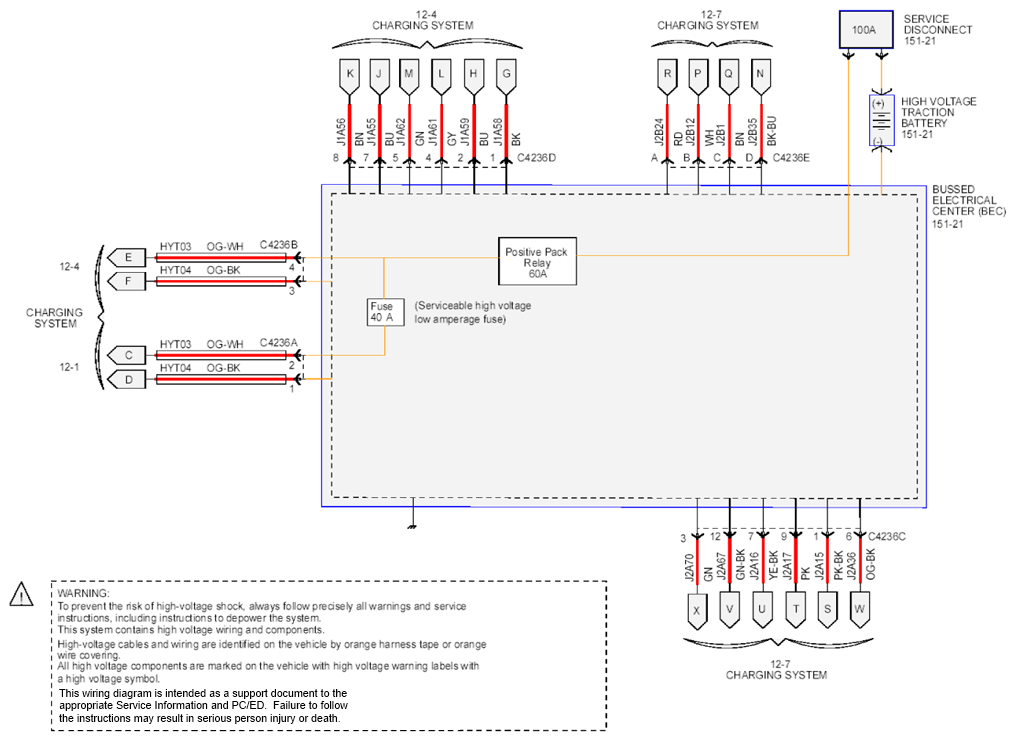

Fig 6: Charging System Circuit Diagram (7 Of 8)

Courtesy of FORD MOTOR CO.

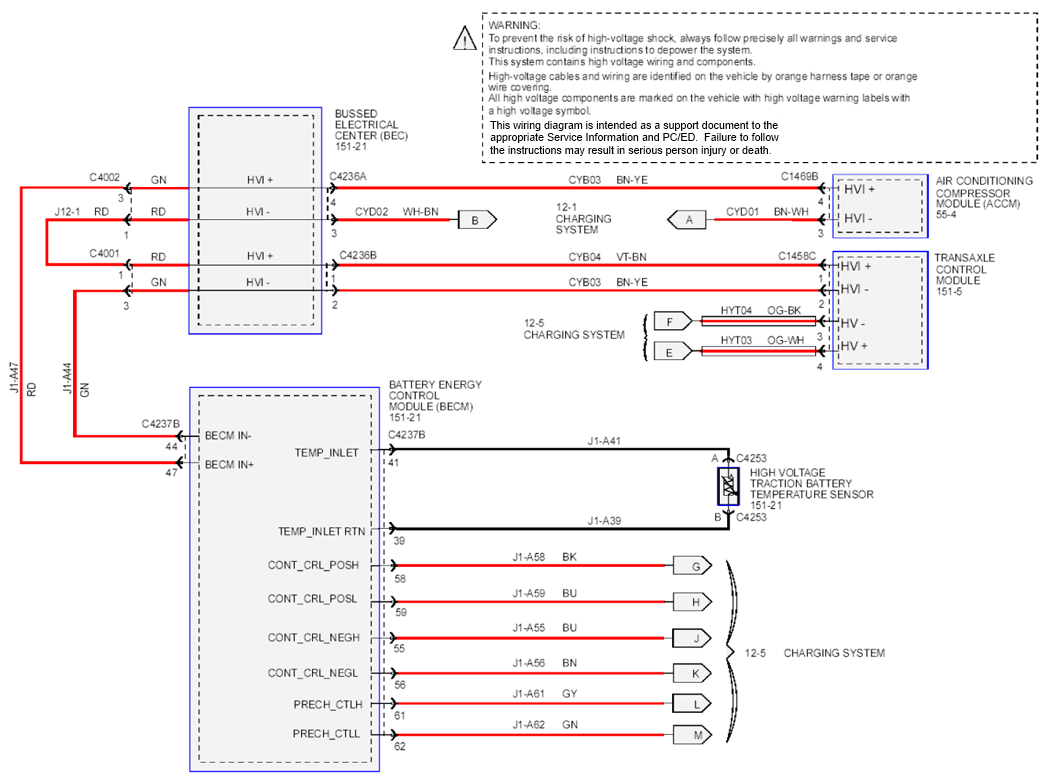

Fig 7: Charging System Circuit Diagram (8 Of 8)

Courtesy of FORD MOTOR CO.
