WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

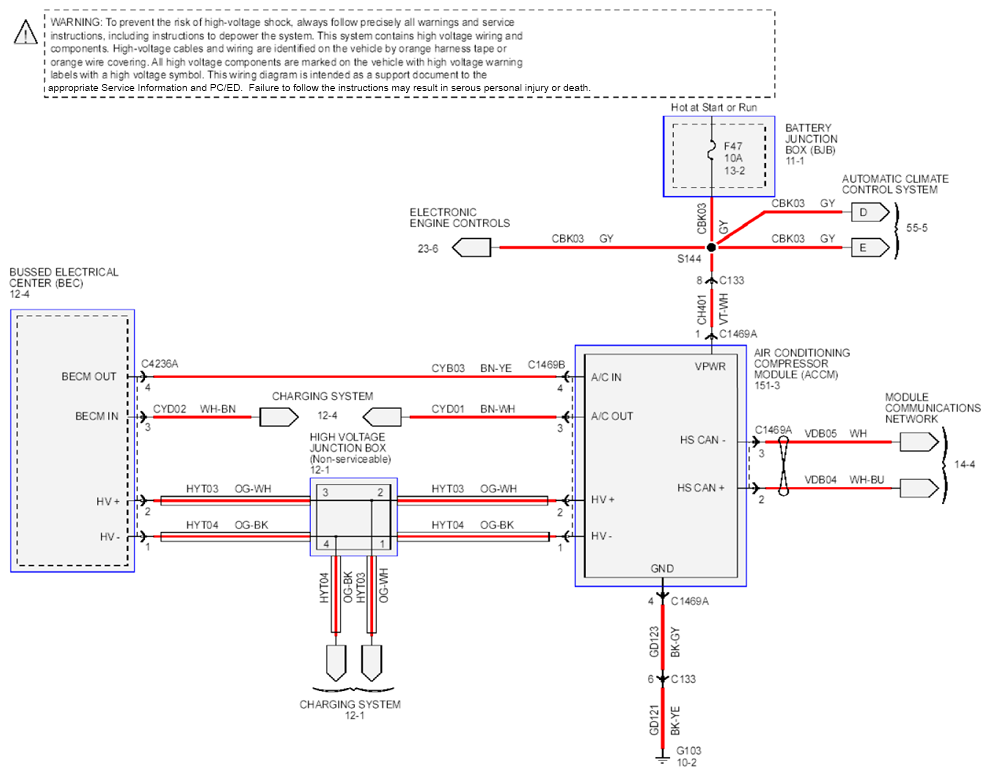

Fig 1: Automatic Climate Control System Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

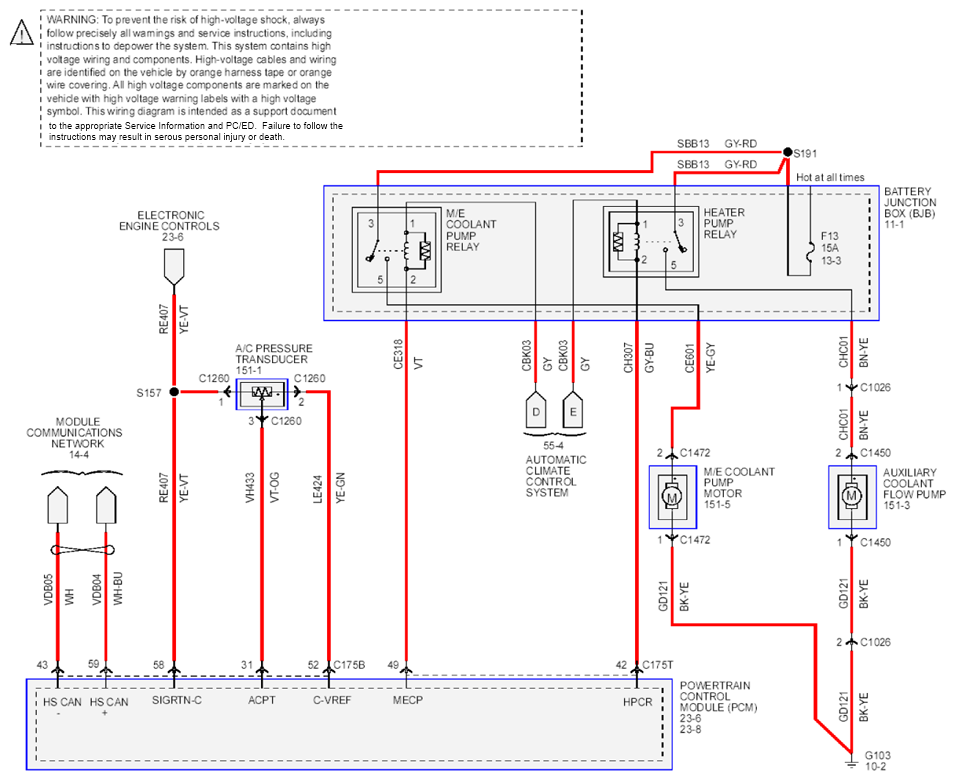

Fig 2: Automatic Climate Control System Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

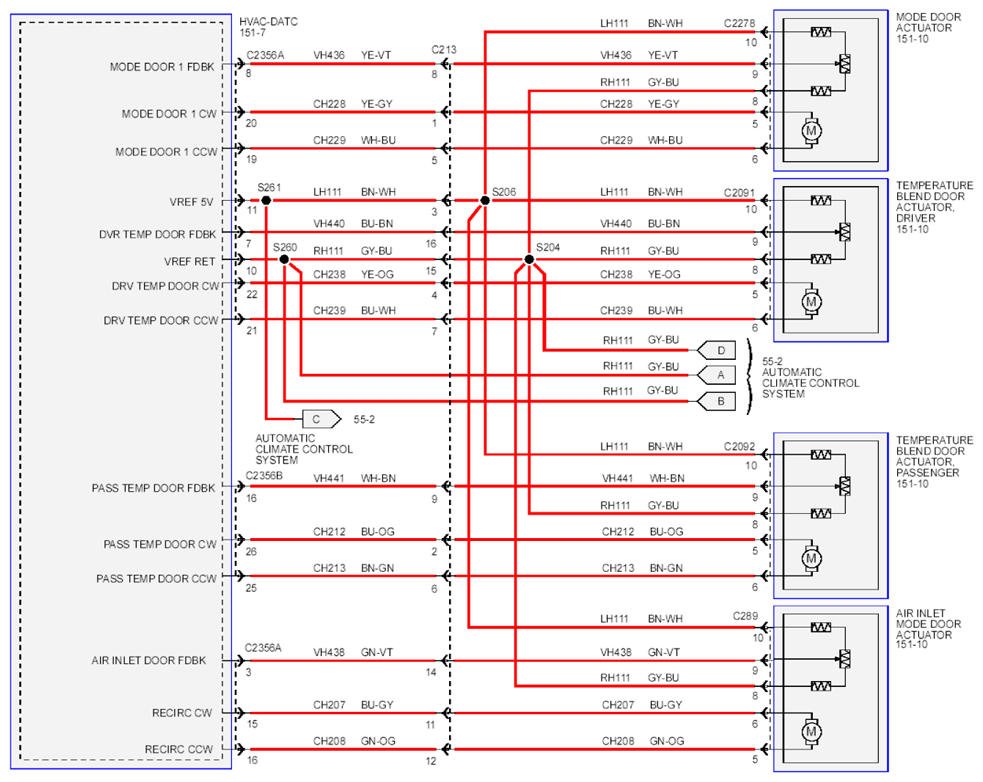

Fig 3: Automatic Climate Control System Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

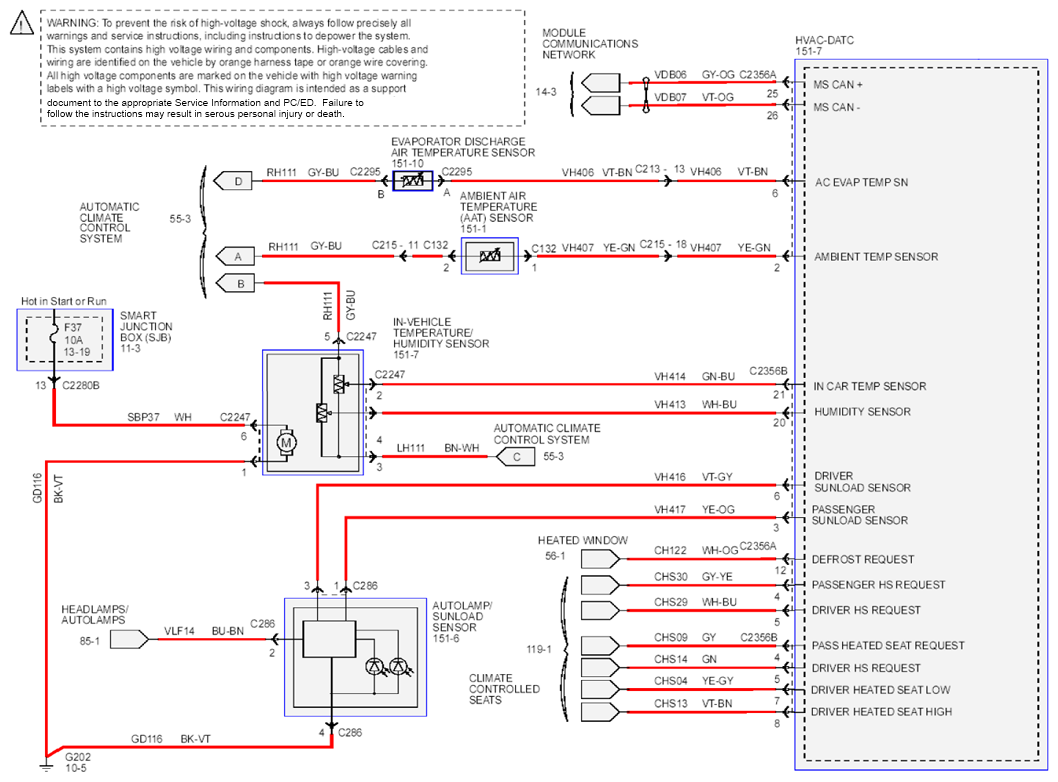

Fig 4: Automatic Climate Control System Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

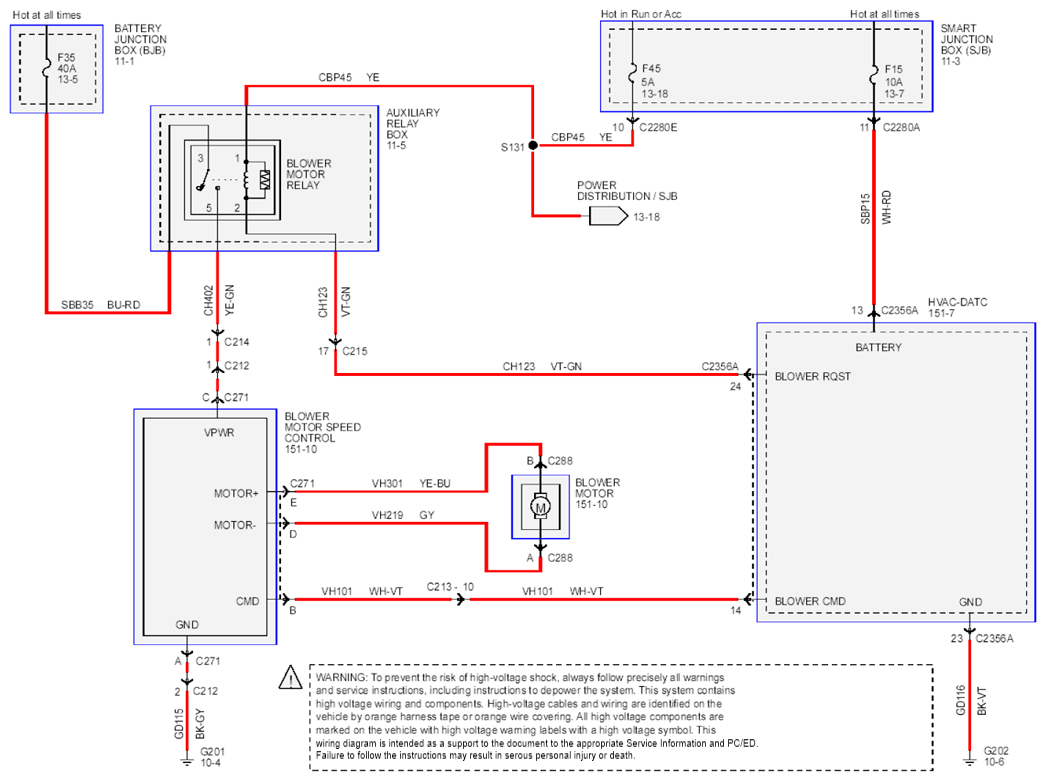

Fig 5: Automatic Climate Control System Circuit Diagram (5 Of 5)
