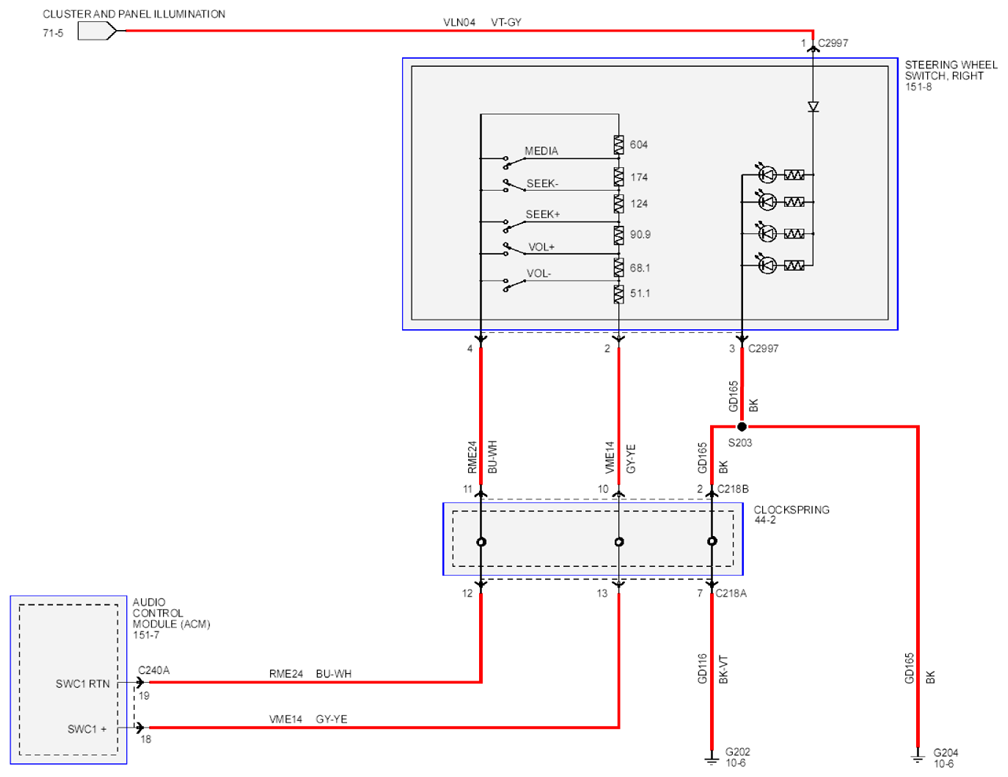

Fig 1: Audio System Navigation Circuit Diagram (Navigation)
Courtesy of FORD MOTOR CO.

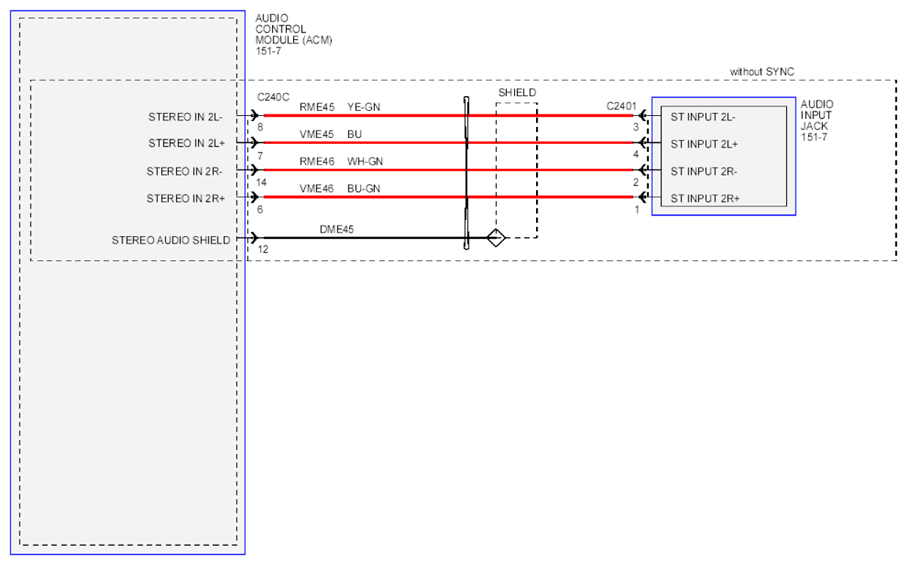

Fig 2: Audio System Navigation Circuit Diagram (Navigation)
Courtesy of FORD MOTOR CO.

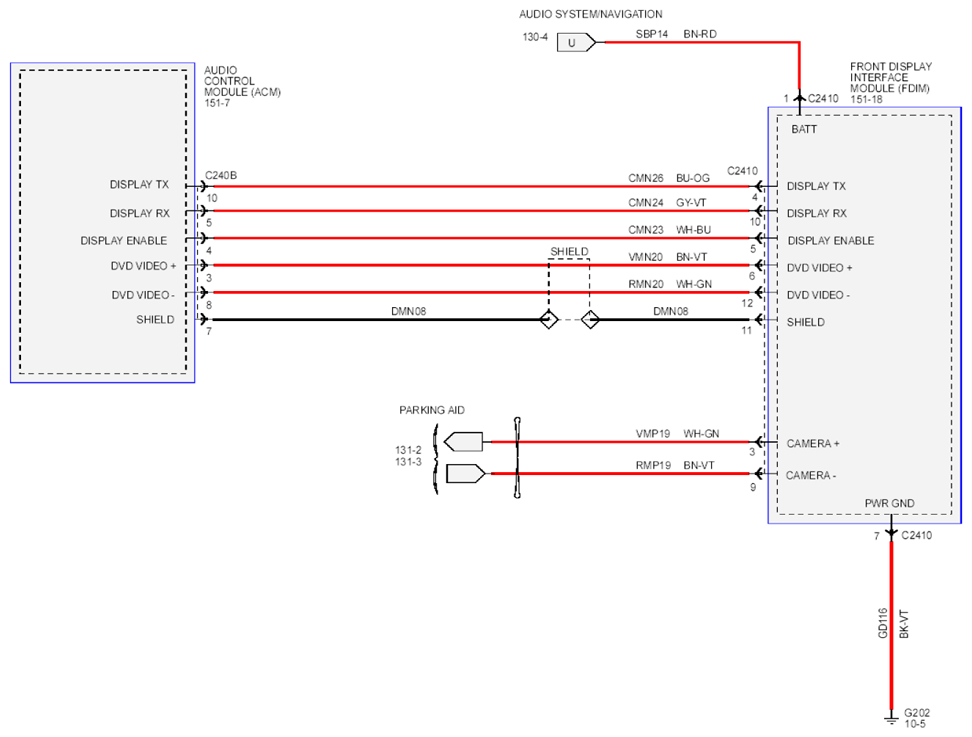

Fig 3: Audio System Navigation Circuit Diagram (Navigation)
