Door Check Arm
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

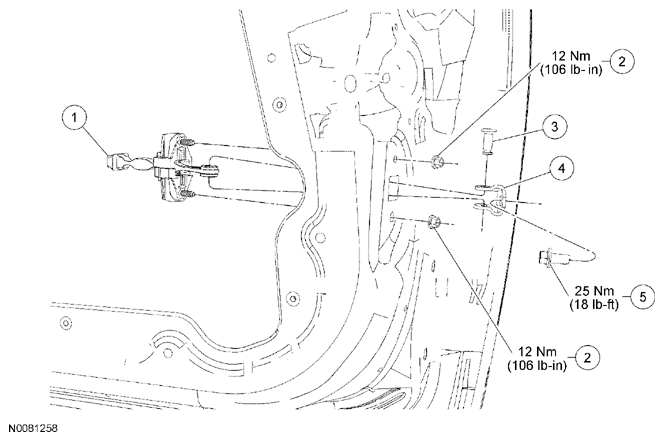

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 5423552 | Door check arm |
| 2 | W520111 | Door check arm-to-door nuts |
| 3 | - | Door check arm-to-check arm bracket (part of 5423552) |
| 4 | - | Door check arm bracket (part of 5423552) |
| 5 | W707375 | Door check arm-to-body bolt |
- Remove the door trim panel. For additional information, refer to INTERIOR TRIM & ORNAMENTATION -- FUSION, MILAN & MKZ article.
- Remove the door check arm-to-body bolt.
- To install, tighten to 25 Nm (18 lb-ft).
- Remove the door check arm-to-door nuts.
- To install, tighten to 12 Nm (106 lb-in).
- To install, reverse the removal procedure.
