Rear Side Crash Sensor: Installation
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

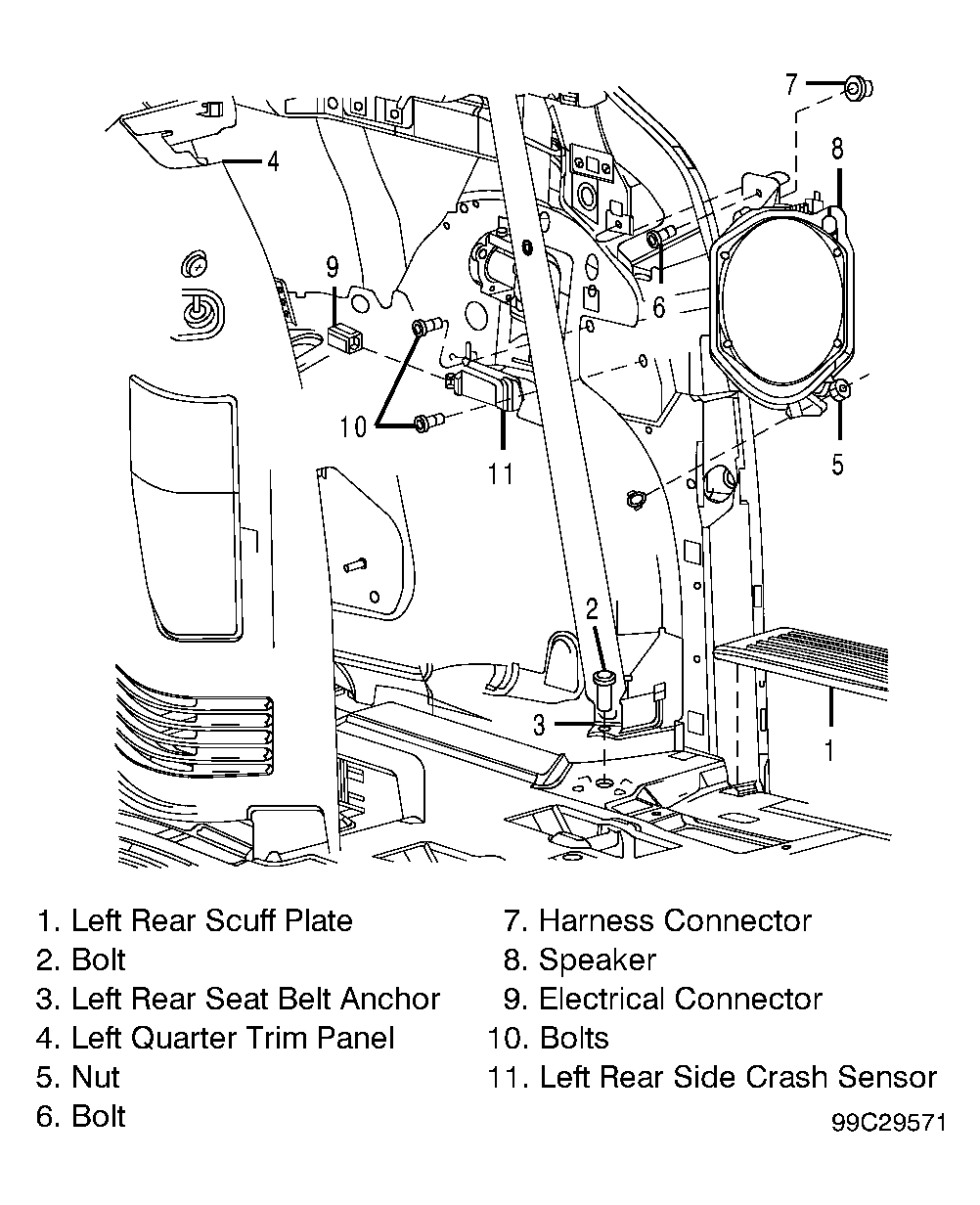

- To install, reverse removal procedure. DO NOT activate air bag system at this time. Tight left rear side crash sensor mounting bolts and rear seat belt anchor bolt to specification. See TORQUE SPECIFICATIONS .
- Connect negative battery cable. With air bag simulators installed at all deployable air bag system devices, perform system operation check. See SYSTEM OPERATION CHECK . Disconnect negative battery cable. Wait at least one minute. Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
- To install, reverse removal procedure. DO NOT activate air bag system at this time. Tighten left rear side crash sensor mounting bolts and rear seat belt anchor bolt to specification. See TORQUE SPECIFICATIONS .
- Connect negative battery cable. With air bag simulators installed at all deployable air bag system devices, perform system operation check. See SYSTEM OPERATION CHECK . Disconnect negative battery cable. Wait at least one minute. Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
