Windshield Glass: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G07789158
Deluxe Windshield Removal Tool
164-R2450 or equivalent
G07789159
The Pumper
164-R2459 or equivalent
MATERIAL

Item Specification
Dow Urethane Adhesive
Betaseal™ Express
-
Dow Urethane One Step Glass Primer
Betaprime™ 5500 / 5500A / 5500SA
-
Sika Urethane Adhesive
Sika Tack ASAP
-
Sika Urethane Metal and Glass Primer
Sika 206 G+P
-
Motorcraft® Ultra-Clear Spray Glass Cleaner
ZC-23
ESR-M14P5-A

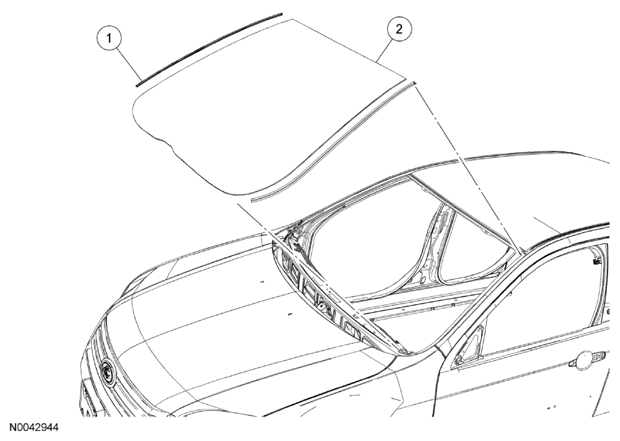

Fig 1: Identifying Windshield Glass Moulding And Windshield
G07789160Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Moulding
2 5403100 Windshield
