WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

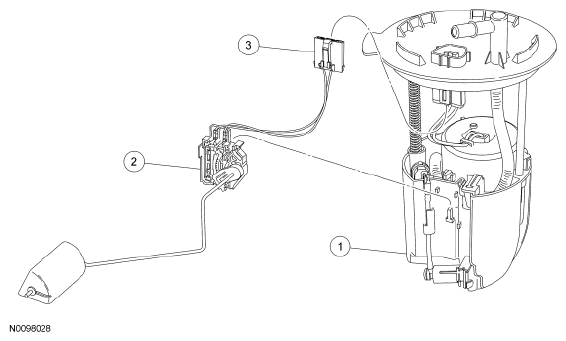

Fig 1: Identifying Fuel Level Sender Components
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION
Item
Part Number
Description
1
9H307
Fuel Pump (FP) module
2
9A299
Fuel level sender
3
-
Fuel level sender electrical connector (part of 9A299)
