Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

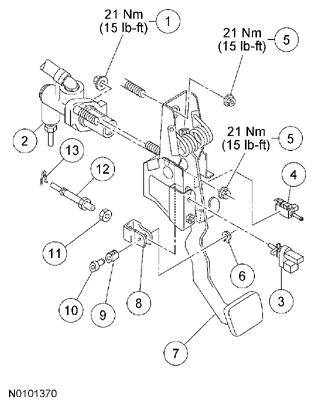

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch master cylinder nut (2 required) |
| 2 | 7A543 | Clutch master cylinder |
| 3 | - | Clutch switch (cruise control cancel) |
| 4 | 11A152 | Clutch Pedal Position (CPP) switch |
| 5 | - | Clutch pedal bracket nuts |
| 6 | - | Retaining clip |
| 7 | - | Clutch pedal and bracket assembly |
| 8 | - | Master cylinder push rod clevis |
| 9 | - | Clevis bushing |
| 10 | - | Clevis pin |
| 11 | - | Clutch pedal locknut |
| 12 | - | Master cylinder push rod |
| 13 | - | Retaining clip |
