Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

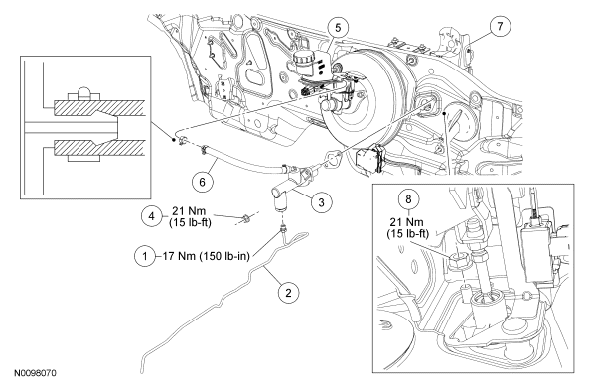

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch hydraulic tube nut |
| 2 | - | Clutch hydraulic tube |
| 3 | 7A543 | Clutch master cylinder |
| 4 | - | Clutch master cylinder nut |
| 5 | 2K478 | Clutch system reservoir |
| 6 | - | Clutch master cylinder reservoir hose |
| 7 | 7519 | Clutch pedal and bracket |
| 8 | - | Clutch master cylinder nut |
