Bumper - Rear: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

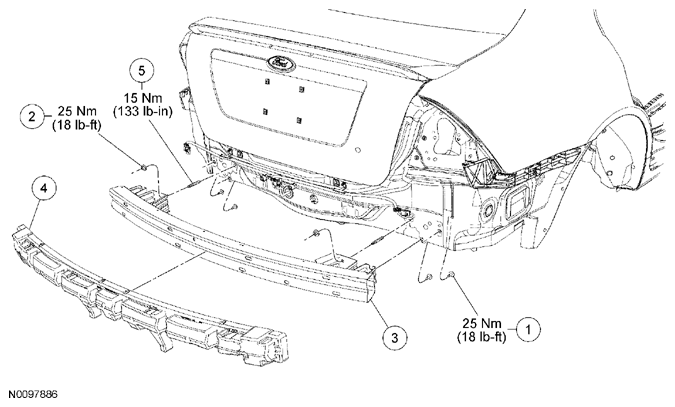

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
N811479 |
Rear bumper bolt (4 required) |
| 2 |
W709361 |
Rear bumper nut (2 required) |
| 3 |
17906 |
Rear bumper |
| 4 |
17787 |
Rear bumper isolator |
| 5 |
N808889 |
Rear bumper stud (2 required) |
