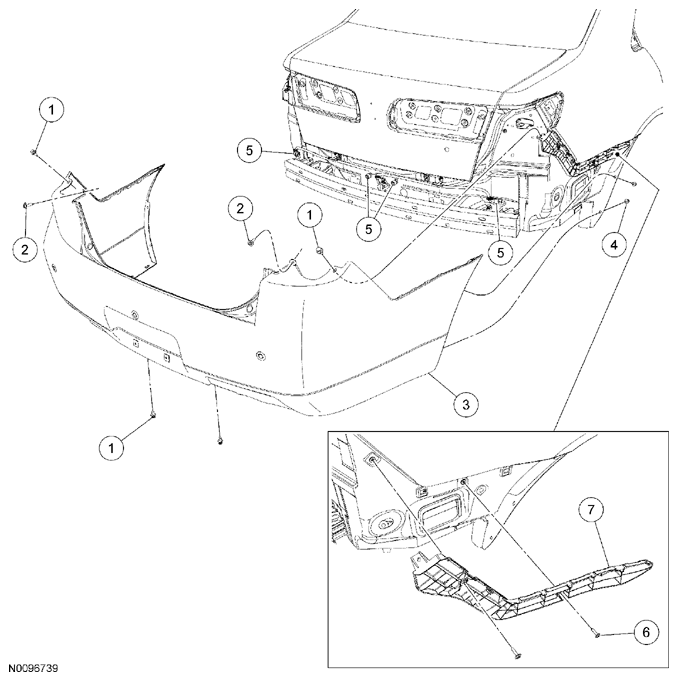

Bumper - Exploded View, Rear: MKZ
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N807389 | Rear bumper cover pin-type retainers (4 required) |
| 2 | N806034 | Rear bumper cover screws (2 required) |
| 3 | 17K835 | Rear bumper cover |
| 4 | N807389 | Fender splash shield pin-type retainer (4 required) |
| 5 | - | Rear parking assist electrical connectors (part of 14N139) |
| 6 | N806034 | Rear bumper cover bracket screw (4 required) |
| 7 | 17D948 LH/17D949 | RH Rear bumper cover bracket |
- For additional information, refer to the appropriate procedures in this service information.
