Crankcase Vent Oil Separator: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

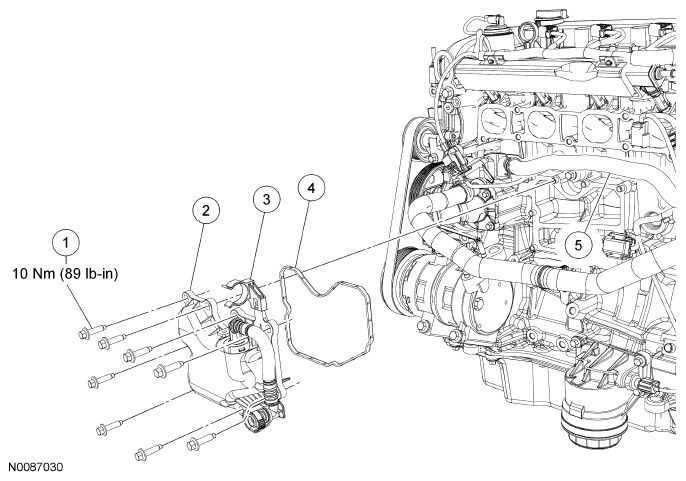

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W500214 |
Crankcase vent oil separator bolt (8 required) |
| 2 |
6A785 |
Crankcase vent oil separator |
| 3 |
- |
Coolant bypass hose clip (part of 9A785) |
| 4 |
6A785 |
Crankcase vent oil separator gasket |
| 5 |
8A582 |
Coolant bypass hose |
