Component Locations
WARNING: This page is about a different car, the 2004 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

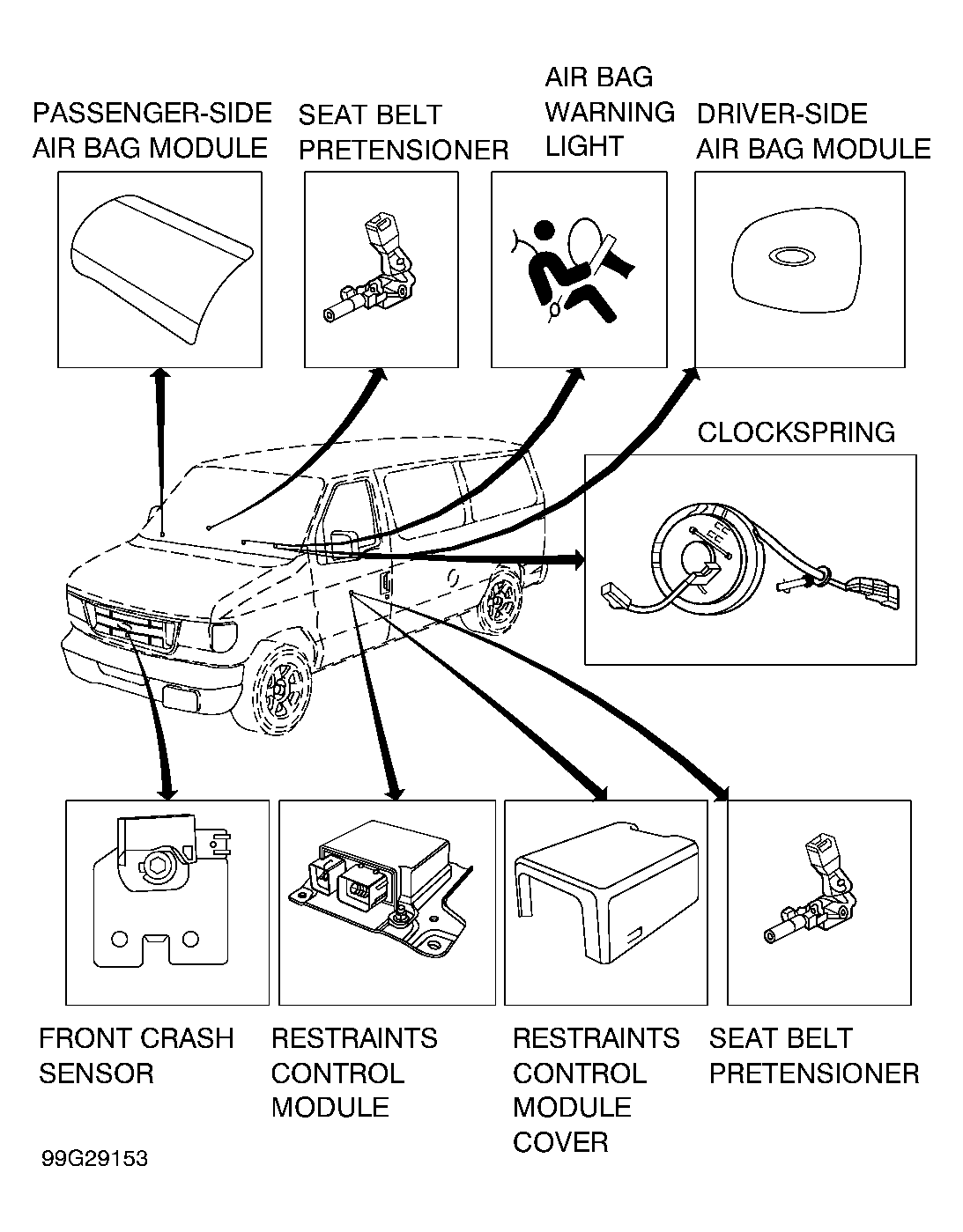

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | Steering column, below steering wheel | ||
| Driver-side air bag module | Under left front seat | ||
| Restraints Control Module (RCM) | Behind right cowl side kick panel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Front crash sensor | Center radiator support, behind grille | ||
| Seat belt pretensioners | Integrated with right and left front seat belt buckles | ||
|
|||
