Throttle Body
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

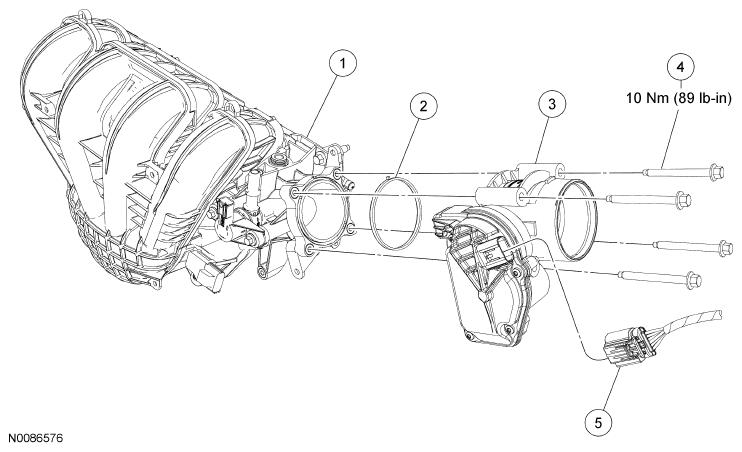

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 9424 | Intake manifold |
| 2 | 9E836 | Throttle Body (TB) gasket |
| 3 | 9E926 | TB |
| 4 | W500305 | TB bolt (4 required) |
| 5 | 14A464 | Electronic throttle control electrical connector |
- Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - (HYBRID) article.
- Disconnect the electronic throttle control electrical connector.
- Remove the 4 bolts and the Throttle Body (TB).
- Discard the TB gasket.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
NOTE:
Install a new TB gasket.
