Fuel Rail
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

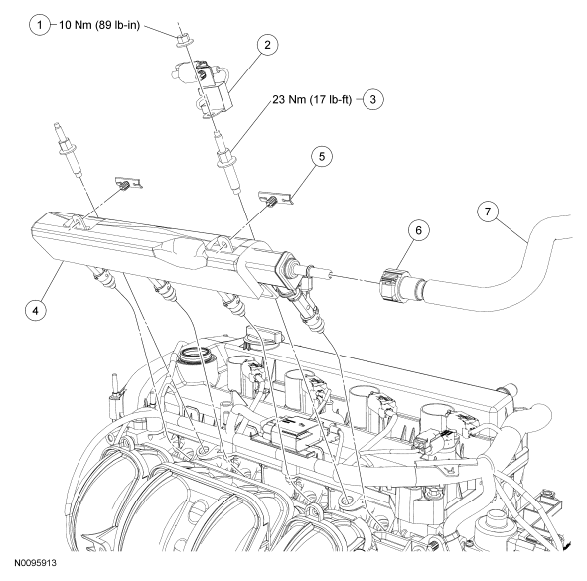

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W705790 | Radio capacitor nut |
| 2 | 18801 | Radio capacitor |
| 3 | W711061 | Fuel rail stud bolt (2 required) |
| 4 | 9H487 | Fuel rail |
| 5 | - | Wire harness pin-type retainer (part of 12B637) (2 required) |
| 6 | - | Fuel supply tube-to-fuel rail quick connect coupling (part of 9288) |
| 7 | 9288 | Fuel supply tube |
