Component Locations
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

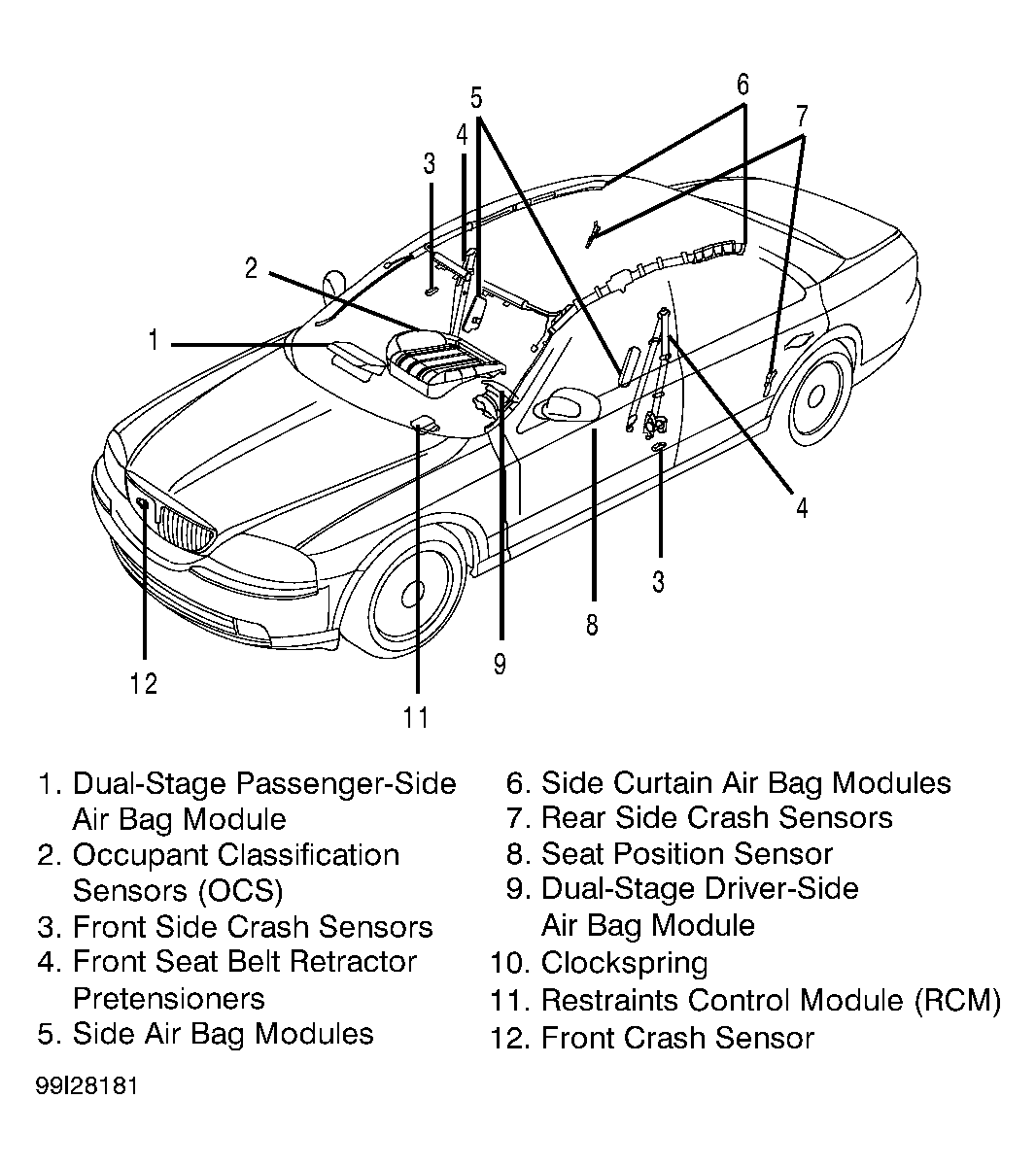

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component |
Location |
| Clockspring |
On steering column, behind steering wheel |
| Dual-stage driver-side air bag module |
Center of steering wheel |
| Dual-stage passenger-side air bag module |
Right-side of instrument panel, above glove box |
| Front crash sensor |
Bottom of hood latch support bracket |
| Front side crash sensors |
Inside right and left front doors |
| Occupant classification sensor |
Under right front seat cushion |
| Restraints control module |
On tunnel, under floor console |
| Rear side crash sensors |
Base of right- and left-side C-pillars |
| Seat belt buckle switches |
Integrated with front seat belt buckles |
| Seat belt pretensioners |
Integrated with front seat belt retractors |
| Seat position sensor |
On left front seat track frame |
| Side curtain air bag modules |
Behind right- and left-sides of headliner, between A-pillar and C-pillar |
| Side curtain air bag bridge resistors |
On side curtain air bag harness connectors |
Courtesy of FORD MOTOR CO.
