Starter Motor - 3.0L
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

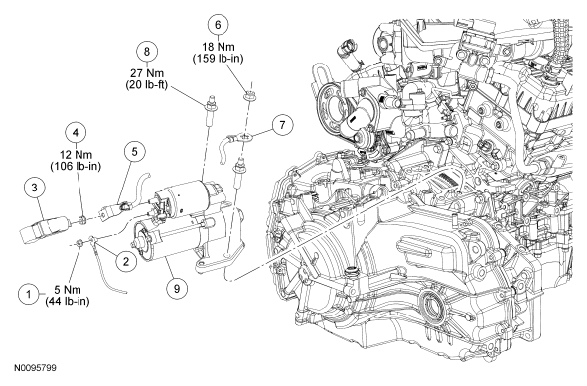

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N805320 | Starter motor solenoid wire nut |
| 2 | 14463 | Starter motor solenoid wire (part of 12B637) |
| 3 | 14603 | Starter motor solenoid battery cable terminal cover |
| 4 | W706414 | Starter motor solenoid battery cable nut |
| 5 | 14463 | Starter motor solenoid battery cable (part of 14B060) |
| 6 | - | Ground wire nut |
| 7 | 14463 | Ground wire (part of 14A280) |
| 8 | W503297 | Starter motor stud bolt (2 required) |
| 9 | 11000 | Starter motor |
WARNING:
Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.
- Remove the battery tray. For additional information, refer to BATTERY, MOUNTING & CABLES -- FUSION, MILAN & MKZ article.
- Remove the starter motor solenoid wire nut and position the wire aside.
- To install, tighten to 5 Nm (44 lb-in).
- Position the starter motor solenoid terminal battery cable cover aside.
- Remove the starter motor solenoid battery cable nut and position aside the cable.
- To install, tighten to 12 Nm (106 lb-in).
- Remove the ground wire nut from the starter motor stud bolt and position the ground wire aside.
- To install, tighten to 18 Nm (159 lb-in).
- Remove the 2 starter motor stud bolts and the starter motor.
- To install, tighten to 27 Nm (20 lb-ft).
- To install, reverse the removal procedure.
