Front Side Crash Sensor: Removal

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

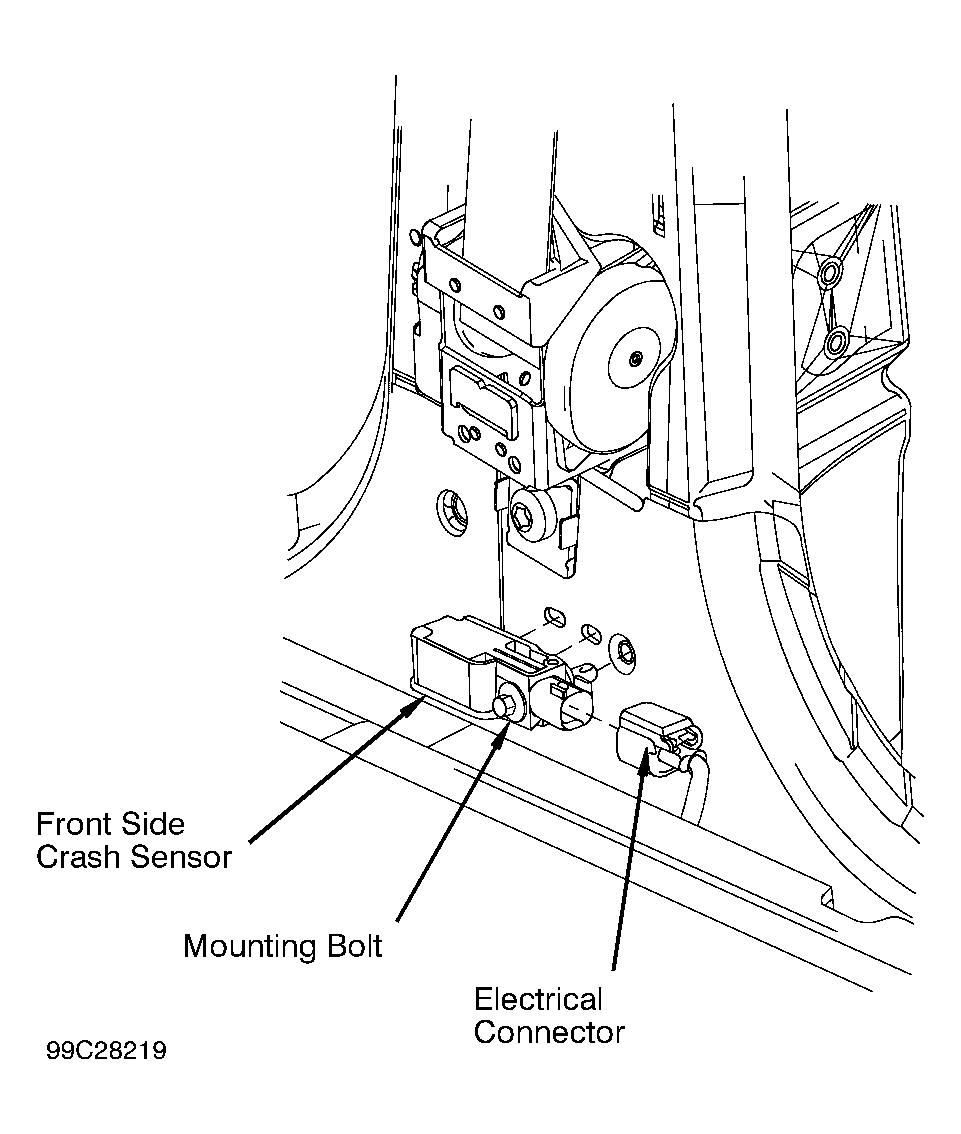

  2. Remove appropriate door opening weatherstrip. Remove appropriate B-pillar trim panel. Disconnect front side crash sensor electrical connector. See Figure . Remove front side crash sensor mounting bolt and remove sensor.
