Component Locations

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
RESTRAINT SYSTEM COMPONENT LOCATIONS

Component (1) Location
Clockspring On steering column, behind steering wheel
Dual-stage driver-side air bag module Center of steering wheel
Dual-stage passenger-side air bag module Right side of instrument panel, above glove box
Front crash sensor Bottom of hood latch support bracket
Front side crash sensors Inside right and left front doors
Restraints control module On tunnel, under center console
Rear side crash sensors Base of right and left side C-pillars
Seat belt buckle switches Integrated with front seat belt buckles
Seat belt pretensioners Integrated with front seat belt buckles
Seat track position sensor On left front seat track frame
Side curtain air bag modules Behind right and left sides of headliner, between A-pillar and C-pillar
Side curtain bridge resistors(2) On side curtain air bag harness connectors
(1) See Fig 1 .
(2) On models not equipped with side curtain air bags.

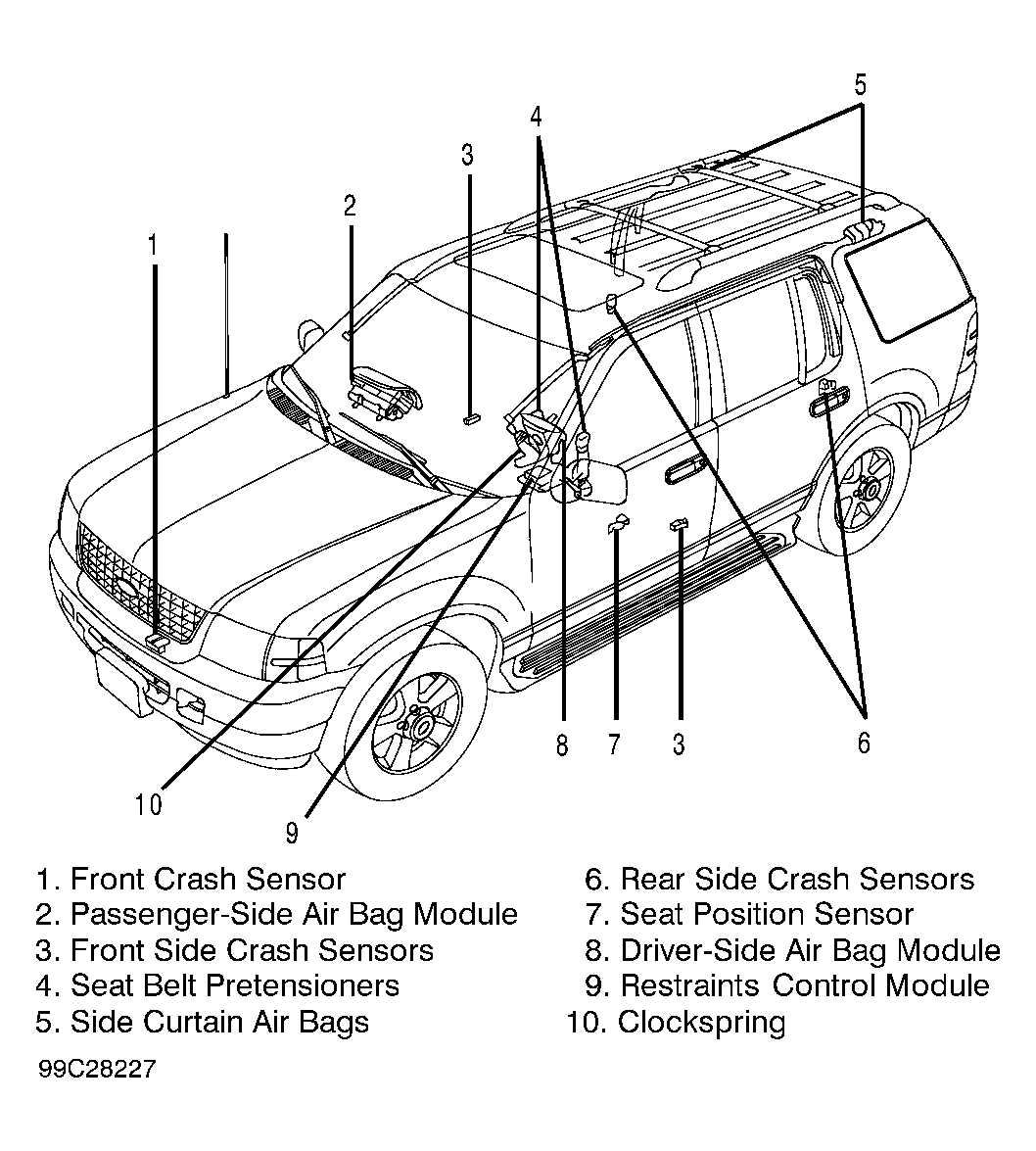

Fig 1: Locating Restraint System Components
G99C28227Courtesy of FORD MOTOR CO.
