Hood Latch: MKZ

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

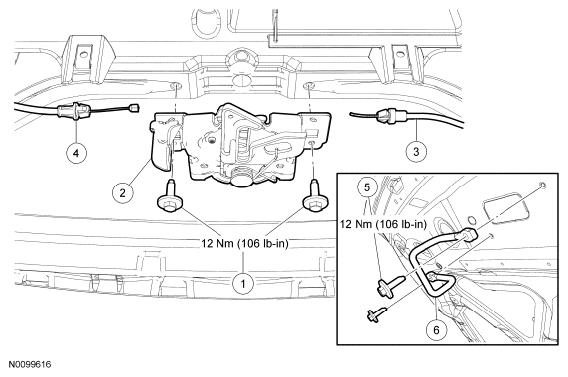

Fig 1: Hood Latch Replacement Components With Torque Specifications (MKZ)
G06259741Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 N808727-S307 Hood latch bolts (2 required)
2 16700 Hood latch
3 16916 Hood latch release cable
4 16916 Secondary hood latch release cable
5 N807658-S307 Hood latch striker bolts (2 required)
6 16K689 Hood latch striker
