Hood Latch Release Handle: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

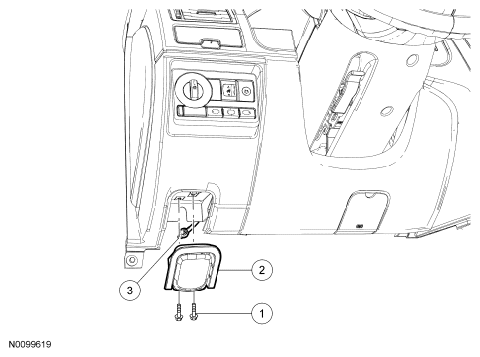

Fig 1: Identifying Hood Latch Release Handle Components
G06259742Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 - Hood latch release handle bolts (2 required)
2 16916 Hood latch release handle
3 16916 Hood latch release cable
